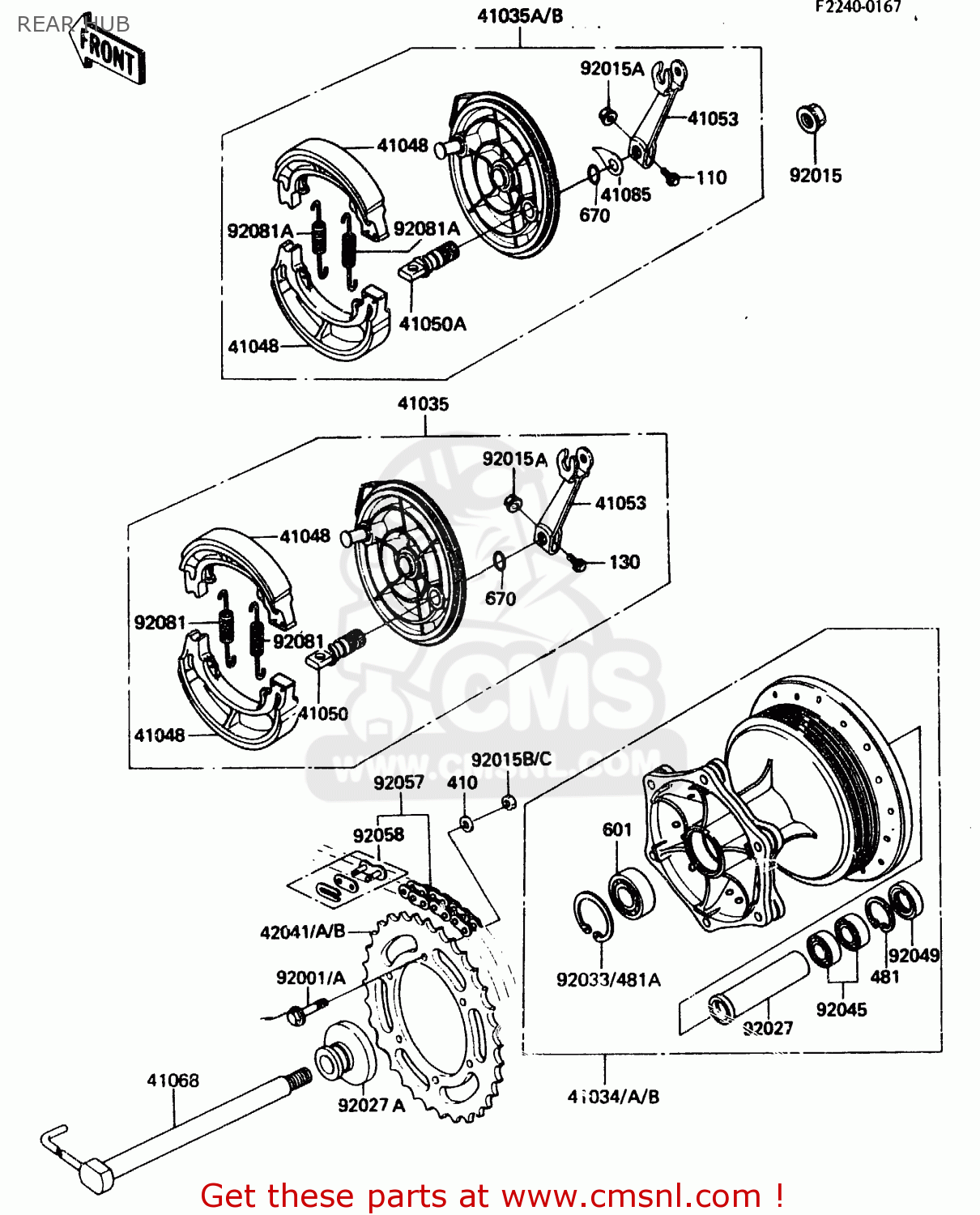

REAR HUB

ref

part #

description

quantity

41034A

410341108
ref: 41034A

DRUM-ASSY,REAR BRAKE

€ 517.00

41035A

410351157
ref: 41035A

PANEL-ASSY-BRAKE,RR

€ 297.00

41048

42019013
ref: 41048

SHOE, BRAKE (MCA)

€ 12.50

41050A

410501053
ref: 41050A

CAM-BRAKE

€ 26.00

41053

410531033
ref: 41053

LEVER-BRAKE CAM,RR

€ 31.00

41068

410681074
ref: 41068

AXLE,RR

€ 55.00

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

42041

420411125
ref: 42041

SPROCKET-HUB,48T

€ 76.00

42041A

420411180
ref: 42041A
(OPTION)

SPROCKET-HUB,47T

€ 66.50

42041B

420411183
ref: 42041B
(OPTION)

SPROCKET-HUB,49T

€ 66.50

92001

920011040
ref: 92001

BOLT,HEX HEAD,8X32

€ 5.50

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92015C

920151143
ref: 92015C

NUT,8MM

€ 0.50

92027

920271459
ref: 92027

COLLAR,REAR DRUM,L=10

€ 55.00

92027A

920271531
ref: 92027A

COLLAR,AXLE

€ 30.00

92045

920451053
ref: 92045

BEARING-BALL,6903/2A

€ 27.50

92049

920491103
ref: 92049

SEAL-OIL,BJN22325

€ 11.50

92057

920571117
ref: 92057

CHAIN,DRIVE,112L

€ 50.00

92058

920581051
ref: 92058

JOINT-CHAIN

€ 6.00

92081A

920811766
ref: 92081A

SPRING,BRAKE SHOE

€ 5.50

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

481

481J3000
ref: 481

CIRCLIP-TYPE-C,30MM

€ 1.00

481A

481J4200
ref: 481A

CIRCLIP-TYPE-C

€ 4.00

601

601B6004U
ref: 601

BEARING-BALL,#6004UC3

€ 27.50

670

670B2012
ref: 670

O RING,12MM

€ 1.00

all assemblies
