FRONT HUB
KDX200-A2 1984 UNITED KINGDOM AL

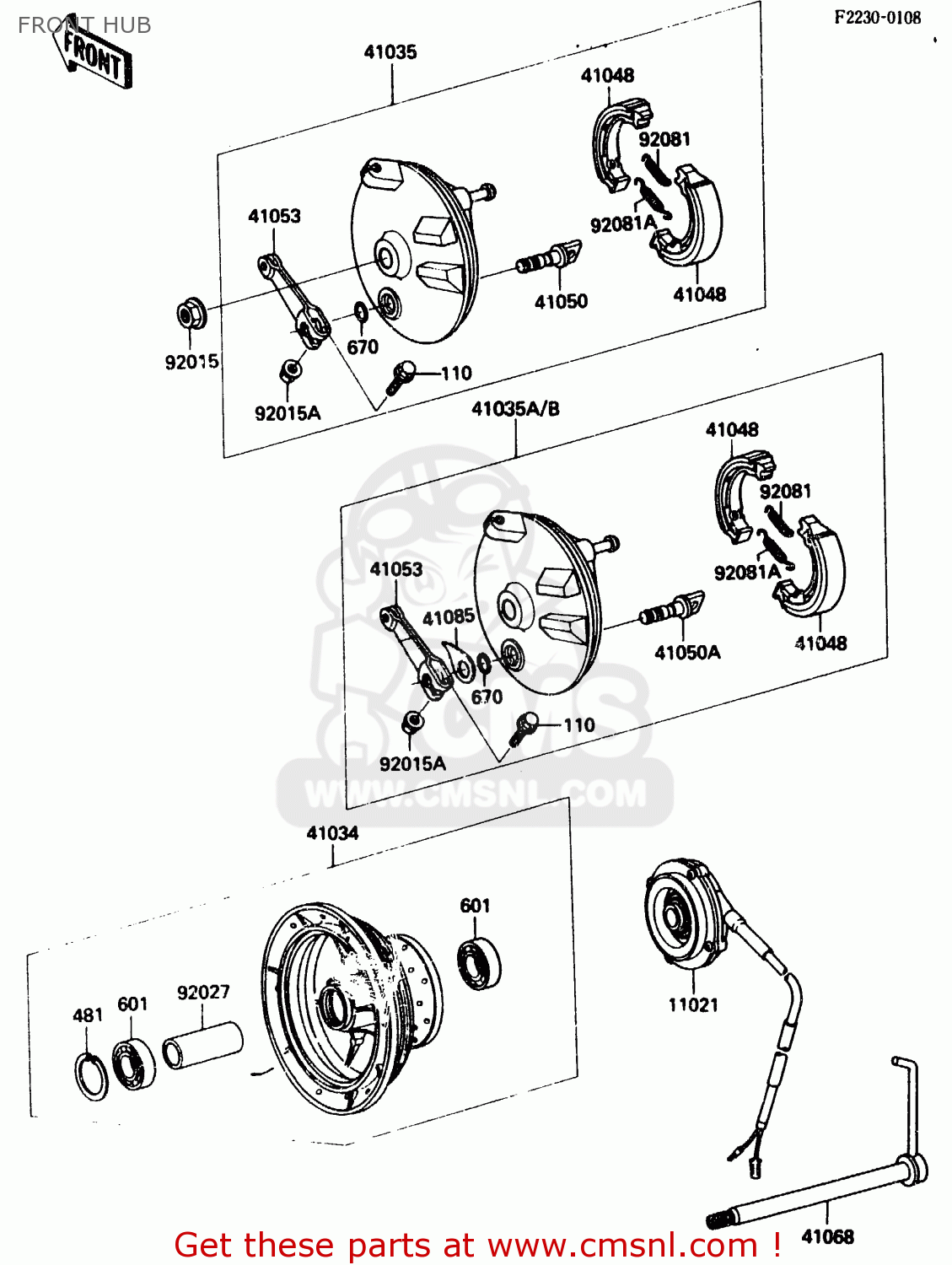

Front hub diagram KDX200-A2 1984 UNITED KINGDOM AL
FRONT HUB KDX200-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11021
110211017
ref: 11021
CASE-ASSY,DISTANCE SE
€ 244.00
41034
410341059
ref: 41034
DRUM-ASSY,FR
€ 273.00
41035A
410351156
ref: 41035A
PANEL-ASSY-BRAKE,FR
€ 276.50
41048
410481012
ref: 41048
SHOE,BRAKE (MCA)
€ 26.00
41050A
410501053
ref: 41050A
CAM-BRAKE
€ 26.00
41053
410531018
ref: 41053
LEVER-BRAKE CAM
€ 34.00
41068
410681073
ref: 41068
AXLE,FR
€ 39.50
41085
41085003
ref: 41085
INDICATOR,BRAKE SHOE
€ 9.00
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92027
920271458
ref: 92027
COLLAR,L=54.5
€ 17.50
92081
41049002
ref: 92081
SPRING-BRAKE SHOE
€ 5.50
92081A
920811550
ref: 92081A
SPRING,BRAKE SHOE
€ 6.00
110
110G0630
ref: 110
BOLT-HEX HEAD,6X30
€ 1.00
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6202U
ref: 601
BEARING-BALL,#6202UC3
€ 19.50
670
670B2012
ref: 670
O RING,12MM
€ 1.00
