FRONT FORK
KDX200-A1 1983 UNITED KINGDOM AL

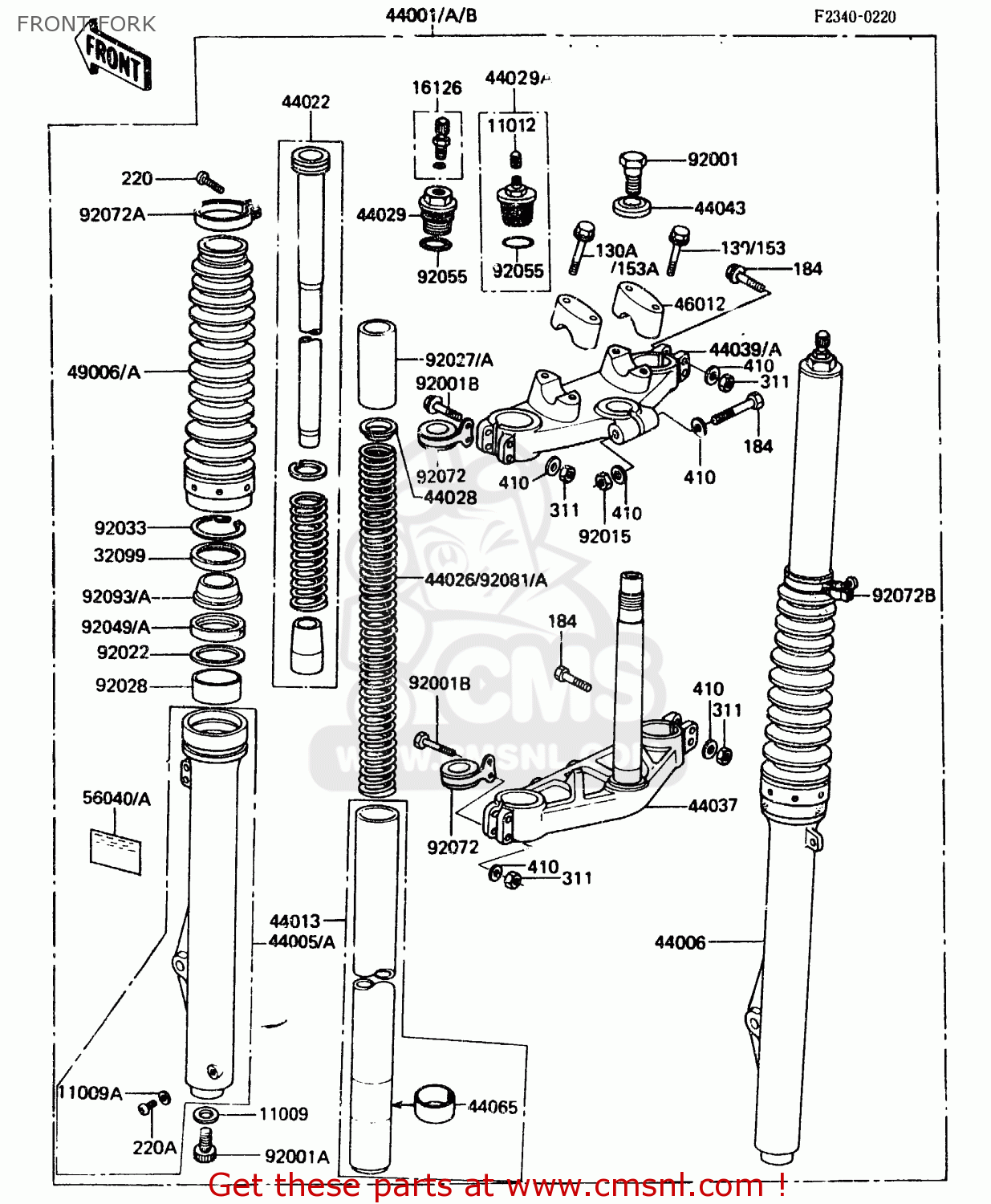

Front fork diagram KDX200-A1 1983 UNITED KINGDOM AL
FRONT FORK KDX200-A1 1983 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261048
ref: 16126
VALVE,AIR FRONT FORK
€ 11.50
32099
320991013
ref: 32099
CASE,DUST SHIELD
€ 3.50
44001
440011398
ref: 44001
FORK-FRONT
€ 1,174.00
44005
440051123
ref: 44005
PIPE-LEFT FORK OUTER
€ 254.00
44006
440061123
ref: 44006
PIPE-RIGHT FORK OUTER
€ 254.00
44013
440131102
ref: 44013
PIPE-FORK INNER
€ 185.50
44022
440221088
ref: 44022
CYLINDER-FORK
€ 88.00
44026
440261170
ref: 44026
SPRING-FRONT FORK
€ 26.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371103
ref: 44037
HOLDER-FORK UNDER
€ 264.00
44039
440391043
ref: 44039
HOLDER-FORK UPPER
€ 149.50
44043
44043052
ref: 44043
WASHER,PLAIN
€ 6.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
46012
460121014
ref: 46012
HOLDER-HANDLE
€ 8.50
49006A
490064008
ref: 49006A
BOOT,FORK,BLACK
€ 43.00
56040
560401002
ref: 56040
LABEL-WARNING,FR FORK
€ 2.00
92001
44041065
ref: 92001
BOLT,FORK TOP
€ 18.50
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
€ 4.50
92001B
920011398
ref: 92001B
BOLT,FLANGED 8X55
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92027
920271535
ref: 92027
COLLAR,FORK SPRING
€ 3.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491042
ref: 92049
OIL SEAL,FORK OUTE TU
€ 13.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721040
ref: 92072
BAND,CABLE
€ 12.50
92072A
920721046
ref: 92072A
BAND,BOOT
€ 6.50
92072B
920721094
ref: 92072B
BAND,BOOT,RH
€ 3.50
92081
920811582
ref: 92081
(OPTION)
SPRING,K=0.32
€ 19.00
92081A
920811583
ref: 92081A
(OPTION)
SPRING,FRONT FORK,K=0
€ 31.00
92093
920931035
ref: 92093
DUST SHIELD,FORK OUTR
€ 10.50
153
153G0835
ref: 153
BOLT-WS-SMALL
€ 3.50
153A
153G0850
ref: 153A
BOLT-WS-SMALL
€ 2.50
184
184G0855
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
311
311G0800
ref: 311
NUT-HEX,8MM
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
