CRANKCASE
KDX200-A1 1983 UNITED KINGDOM AL

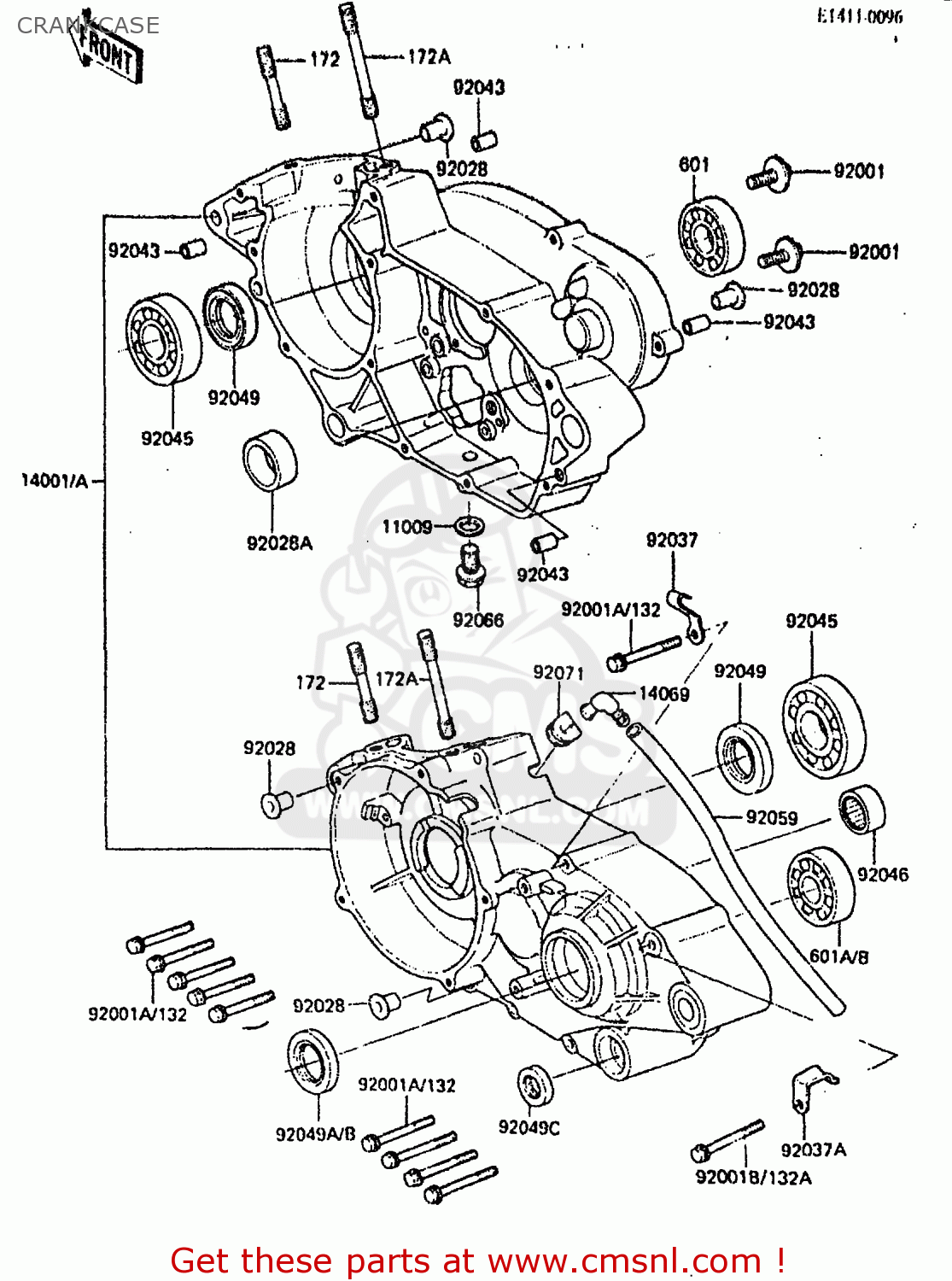

Crankcase diagram KDX200-A1 1983 UNITED KINGDOM AL
CRANKCASE KDX200-A1 1983 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015140
ref: 14001
SET-CRANKCASE
€ 475.00
14069
14069002
ref: 14069
BREATHER
€ 17.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92001A
920011633
ref: 92001A
BOLT,FLANGED,6X40
€ 2.50
92001B
920011637
ref: 92001B
BOLT,FLANGED,6X60
€ 2.00
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028132
ref: 92028A
BUSHING
€ 28.00
92037
92037016
ref: 92037
CLAMP,WIRING HARNESS
€ 1.50
92037A
920371318
ref: 92037A
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451024
ref: 92045
BEARING-BALL,#6305SH2
€ 45.50
92046
92046026
ref: 92046
BEARING-NEEDLE,#7E-HK
€ 24.50
92049
920491068
ref: 92049
SEAL-OIL,TBJ25407
€ 12.00
92049A
92050013
ref: 92049A
OIL SEAL SC25376
€ 9.50
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
€ 5.50
92059
920591125
ref: 92059
TUBU L=500M/M
€ 9.00
92066
92067001
ref: 92066
PLUG-OIL DRAIN
€ 3.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
172
172G0825
ref: 172
STUD,8X25
€ 3.50
172A
172G0860
ref: 172A
STUD,8X60
€ 3.50
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
601B
601B6304
ref: 601B
BEARING-BALL,#6304C3
€ 31.00
