CARBURETOR (KDX200-A1/A2)
KDX200-A1 1983 UNITED KINGDOM AL

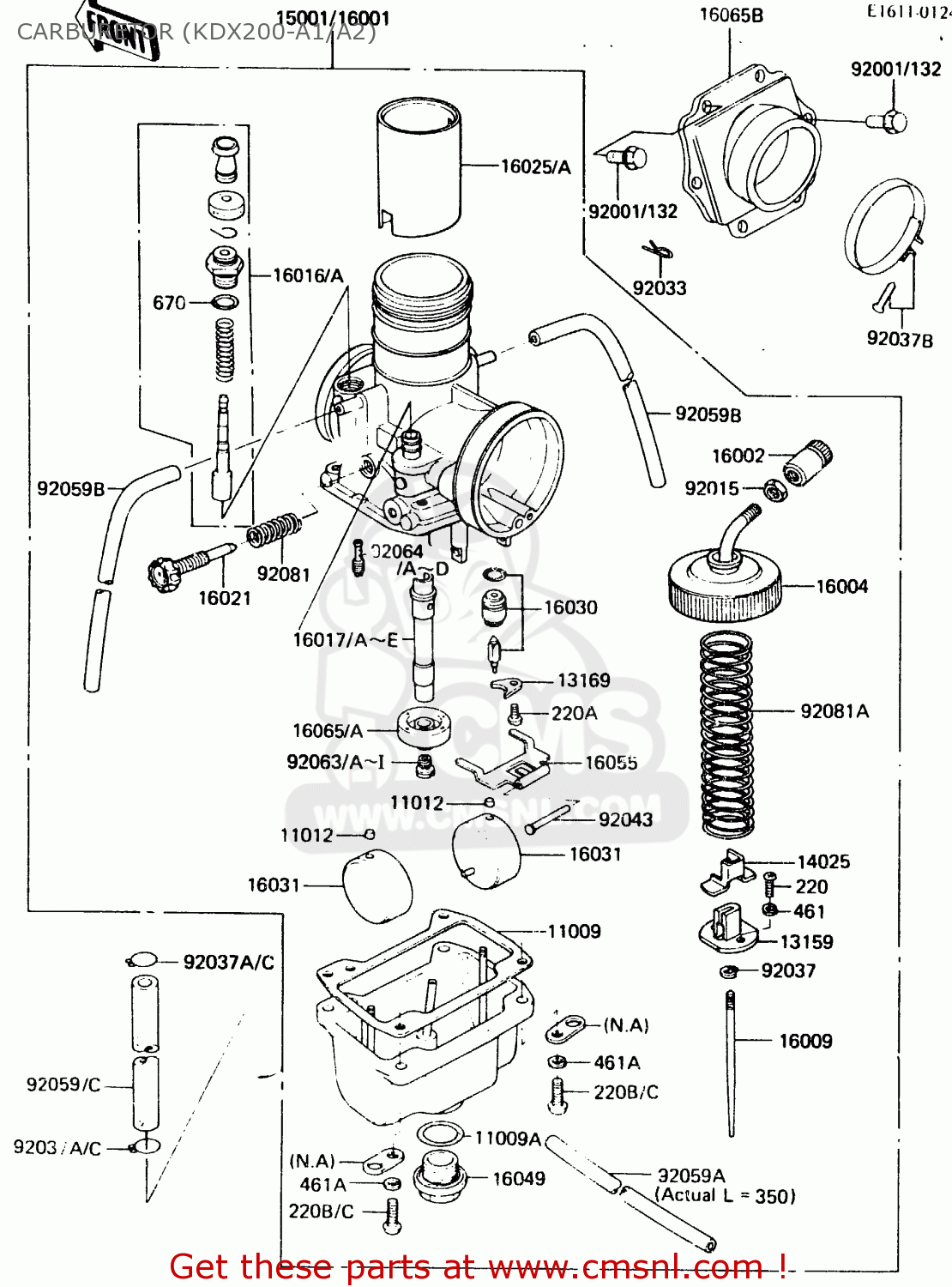

Carburetor (kdx200-a1/a2) diagram KDX200-A1 1983 UNITED KINGDOM AL
CARBURETOR (KDX200-A1/A2) KDX200-A1 1983 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091275
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009A
16038009
ref: 11009A
GASKET,MAIN JET COVER
€ 5.50
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
13159
131591004
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14025
140251113
ref: 14025
COVER,THROTTLE VALVE
€ 6.00
16001
160011793
ref: 16001
CARBURETOR
€ 210.00
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041013
ref: 16004
CAP-CHAMBER,MIXING
€ 34.00
16009
160091152
ref: 16009
NEEDLE-JET,5FJ57
€ 23.00
16016
160161009
ref: 16016
PLUNGER ASSY,STARTER
€ 24.50
16017
160171135
ref: 16017
JET-NEEDLE,R-6
€ 25.00
16021
160211033
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251082
ref: 16025
VALVE-THROTTLE,CA3.0
€ 66.50
16030
160301020
ref: 16030
VALVE-FLOAT,3.3
€ 33.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065A
160651052
ref: 16065A
HOLDER-CARBURETOR,NEE
€ 15.50
16065B
160651070
ref: 16065B
HOLDER-CARBURETOR
€ 45.50
92001
920011629
ref: 92001
BOLT FLANGED 6X20
€ 1.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037056
ref: 92037A
CLAMP,FUEL TUBE
€ 3.00
92037B
920371313
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 7.00
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591026
ref: 92059
HOSE,FUEL,6.5OX11.5O
€ 14.50
92059A
920591211
ref: 92059A
TUBE,3.5X6.5X350
€ 7.00
92059B
920591292
ref: 92059B
TUBE,4X7X400,OVERFLOW
€ 5.50
92063G
92063104
ref: 92063G
JET-MAIN,#135R
€ 8.50
92064B
92064024
ref: 92064B
JET-PILOT,#40
€ 14.00
92081
920811200
ref: 92081
SPRING,THROTT STP SCR
€ 5.50
92081A
920811432
ref: 92081A
SPRING,THROTTLE VALVE
€ 9.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0406
ref: 220A
SCREW-PAN-CROS,4X6
€ 2.50
220B
220B0516
ref: 220B
SCREW-PAN-CROS
€ 2.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
