BRAKE PEDAL
KDX200-A1 1983 UNITED KINGDOM AL

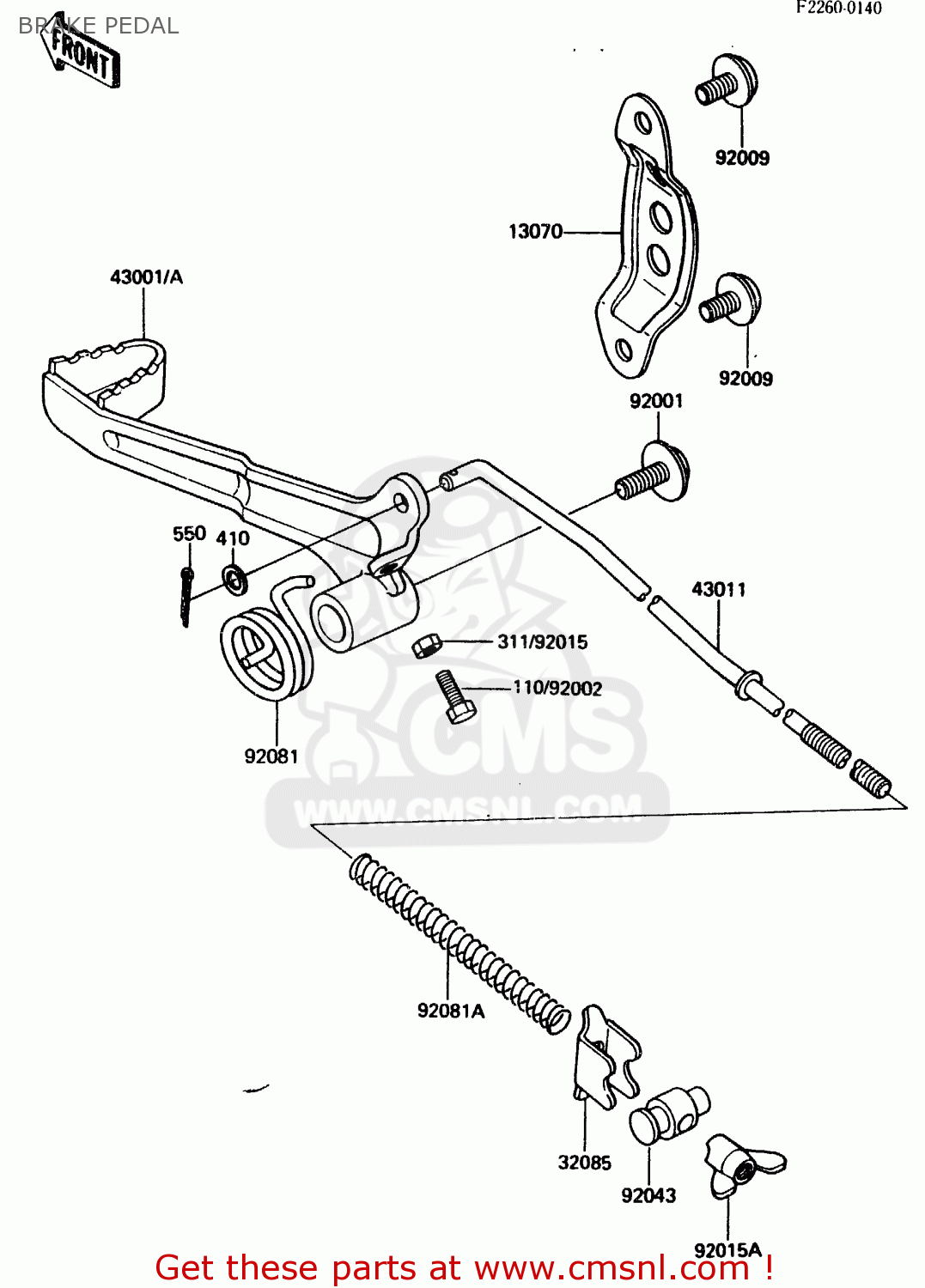

Brake pedal diagram KDX200-A1 1983 UNITED KINGDOM AL
BRAKE PEDAL KDX200-A1 1983 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
13070
130701082
ref: 13070
GUIDE,BRAKE ROD
€ 7.00
32085
320851115
ref: 32085
STOPPER,BRAKE ROD
€ 6.00
43001
430011098
ref: 43001
LEVER-BRAKE,PEDAL
€ 31.50
43011
430111055
ref: 43011
ROD-BRAKE
€ 13.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015A
920154004
ref: 92015A
NUT,BRAKE ADJUSTING
€ 4.50
92043
920431139
ref: 92043
PIN,BRAKE ROD
€ 9.00
92081
920811509
ref: 92081
SPRING,BRAKE PEDAL
€ 5.50
92081A
920811688
ref: 92081A
SPRING,BRAKE ROD
€ 3.00
110
110G0620
ref: 110
BOLT-HEX HEAD,6X20
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
