CLUTCH
KDX200-A1 1983 UNITED KINGDOM AL

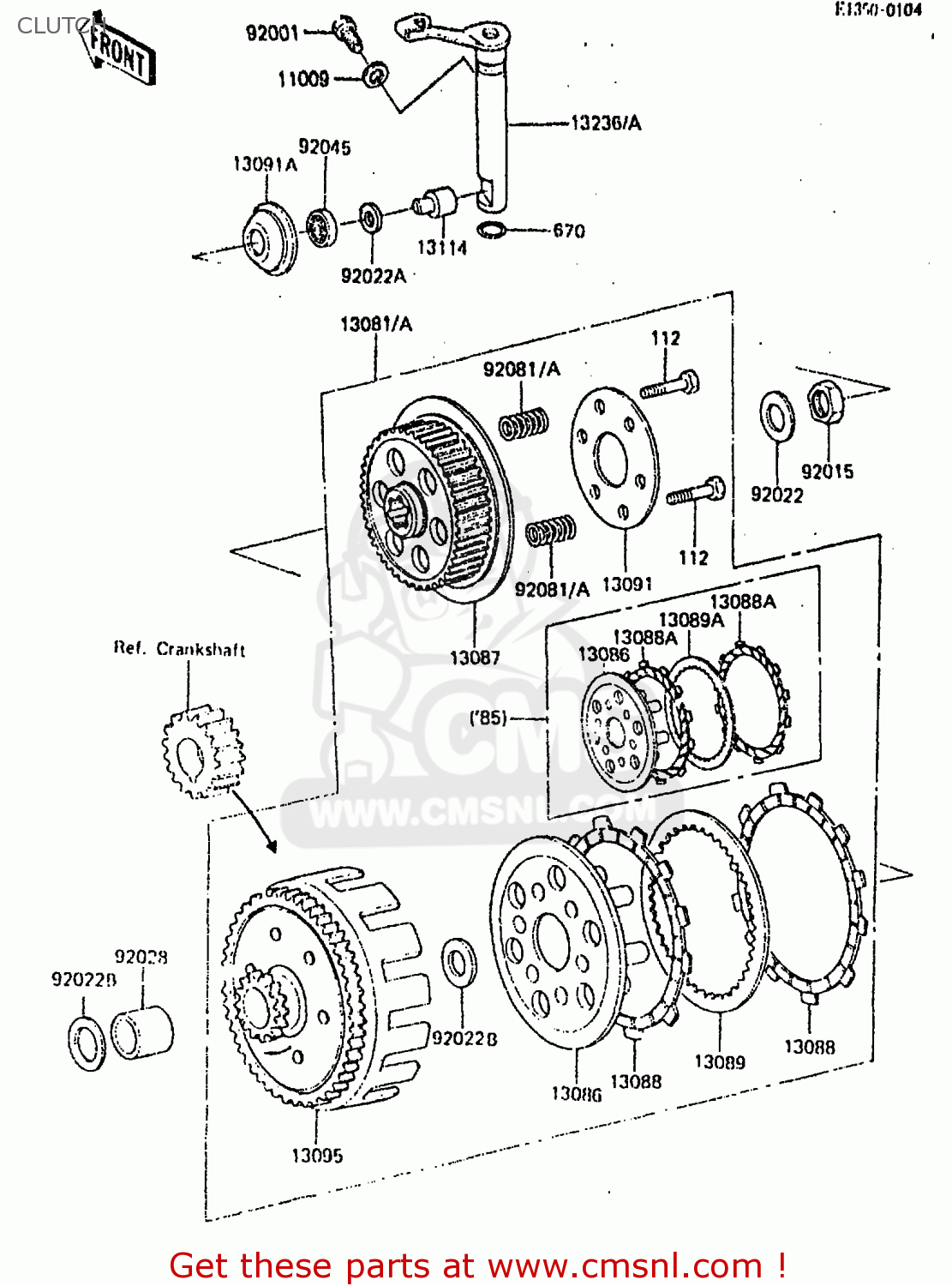

Clutch diagram KDX200-A1 1983 UNITED KINGDOM AL
CLUTCH KDX200-A1 1983 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
13081
130811095
ref: 13081
CLUTCH-ASSY
€ 288.50
13086
130861001
ref: 13086
WHEEL,CLUTCH
€ 25.00
13087
130871024
ref: 13087
HUB-CLUTCH
€ 65.50
13088
13088039
ref: 13088
PLATE,CLUTCH FRICTION (MCA)
€ 11.50
13089
130891002
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.00
13091
13091015
ref: 13091
HOLDER,CLUTCH SPRING
€ 12.50
13091A
130911134
ref: 13091A
HOLDER,CLUTCH PUSHER
€ 9.50
13095
130951054
ref: 13095
HOUSING-COMP-CLUTCH
€ 210.00
13114
131141008
ref: 13114
PUSHER-CLUTCH
€ 12.50
13236
132361053
ref: 13236
LEVER-COMP,CLUTCH REL
€ 14.50
92015
920151176
ref: 92015
NUT,16MM
€ 3.50
92022
920221277
ref: 92022
WASHER,16.8X32X1.6
€ 3.50
92022A
920221290
ref: 92022A
WASHER,7X12.5X0.8
€ 2.00
92022B
92022223
ref: 92022B
WASHER,20.5X30X1.4
€ 8.50
92028
920281196
ref: 92028
BUSHING,20X25X24.1
€ 14.00
92045
92045026
ref: 92045
BEARING,BALL,#627
€ 19.50
92081A
920811506
ref: 92081A
SPRING,CLUTCH
€ 6.50
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
670
670B1510
ref: 670
O RING,9.8X1.9
€ 2.50
