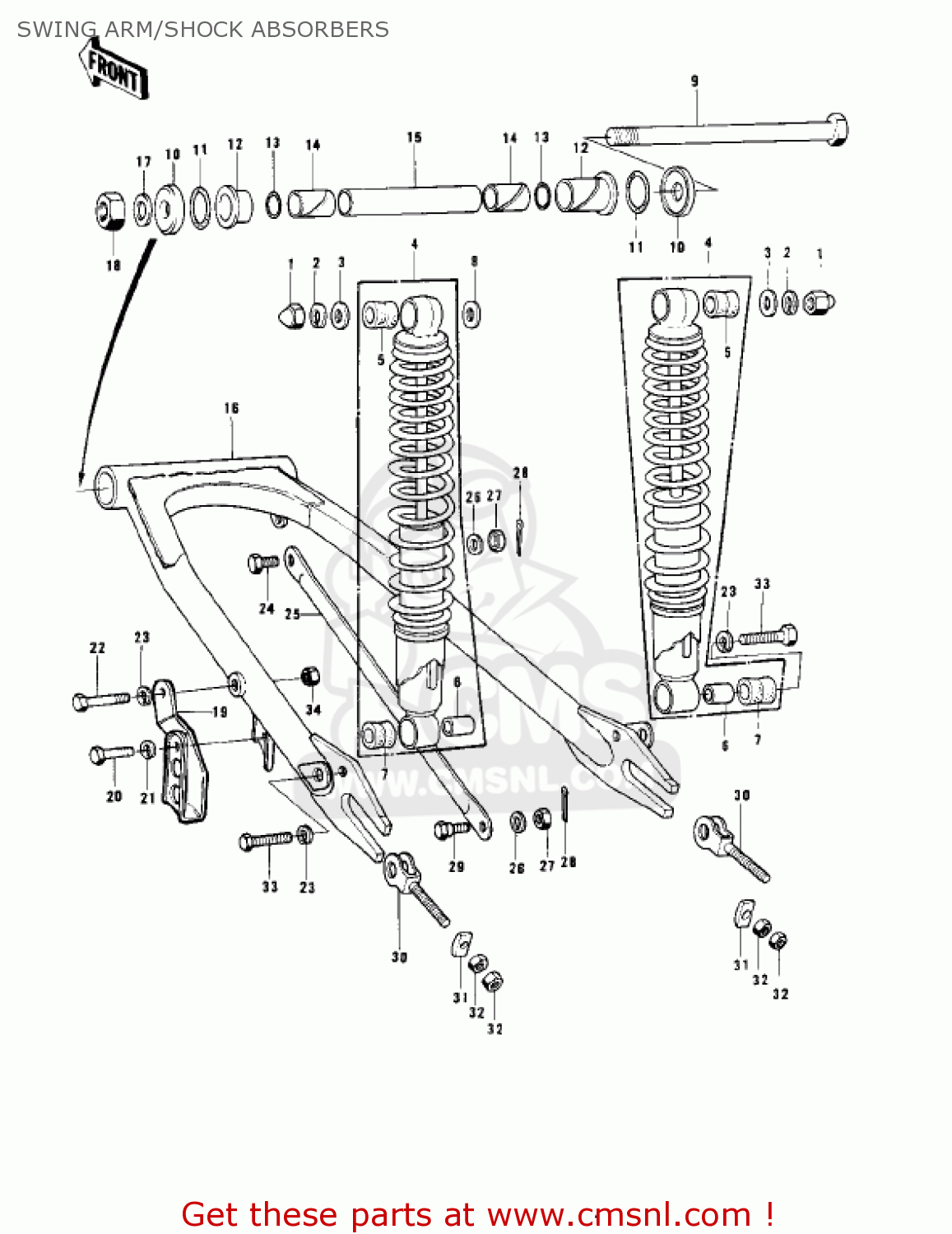

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

92022044
ref: 3

WASHER,10.5X26X2.3

€ 2.50

4

45014113
ref: 4
KD175-A1/A2

SHOCKABSORBER,REAR

€ 171.50

4

450141017
ref: 4
KD175-A3/A4

SHOCK ABSORBER,REAR

€ 150.50

5

45017010
ref: 5

BUSH A-SHCK ABS RUBER

€ 9.00

6

920751020
ref: 6

DAMPER,SHOCKABSORBER

€ 3.00

7

45016003
ref: 7

COLLAR,SHOCKABSORBER

€ 12.50

8

410B1200
ref: 8

WASHER-PLAIN-SMALL,12

€ 0.50

9

33032034
ref: 9

SHAFT-SWING ARM

€ 22.50

10

33035005
ref: 10

CAP,SWING ARM

€ 5.50

11

671B2530
ref: 11

O RING,30MM

€ 3.00

12

33033009
ref: 12

BUSHING,SWING ARM

€ 57.00

13

670B2016
ref: 13
KD175-A1

O RING,16MM

€ 1.00

13

92055001
ref: 13
KD175-A2/A3/A4

RING-O,16MM

€ 2.00

14

33034016
ref: 14

SLEEVE,12.1X22X39

€ 14.50

15

33036007
ref: 15

COLLAR,12.7X17.3X106

€ 6.00

16

33001085
ref: 16
KD175-A1

SWING ARM

€ 292.00

16

33001080
ref: 16
KD175-A2/A3/A4

ARM,SWING

€ 162.50

17

410B1200
ref: 17

WASHER-PLAIN-SMALL,12

€ 0.50

18

92019009
ref: 18

NUT,LOCK,12MM

€ 5.00

19

55020016
ref: 19

GUARD,CHAIN

€ 14.50

20

115G0816
ref: 20

BOLT-HEX,HEAD 8X16

€ 0.50

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

920011254
ref: 22

BOLT,HEX HEAD,10X50

€ 2.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

92003143
ref: 24

BOLT,HEX HEAD,8X24

€ 2.50

25

43007039
ref: 25

TORQUE LINK,RR BRAKE

€ 9.00

26

461F0800
ref: 26

WASHER-SPRING,8MM

€ 0.50

27

320B0800
ref: 27

NUT,8MM

€ 1.50

28

550D2020
ref: 28

PIN-COTTER,2.0X20

€ 0.50

29

92003144
ref: 29

BOLT,RR TORQUE LINK

€ 4.00

30

33040073
ref: 30

ADJUSTER, CHAIN

€ 13.00

31

33041005
ref: 31

PLATE,CHAIN ADJUSTER

€ 6.00

32

311B0800
ref: 32

NUT,8MM

€ 0.50

33

113N1035
ref: 33

BOLT-HEX HEAD,10X35

€ 6.00

34

314B1000
ref: 34

NUT,10MM

€ 0.50
