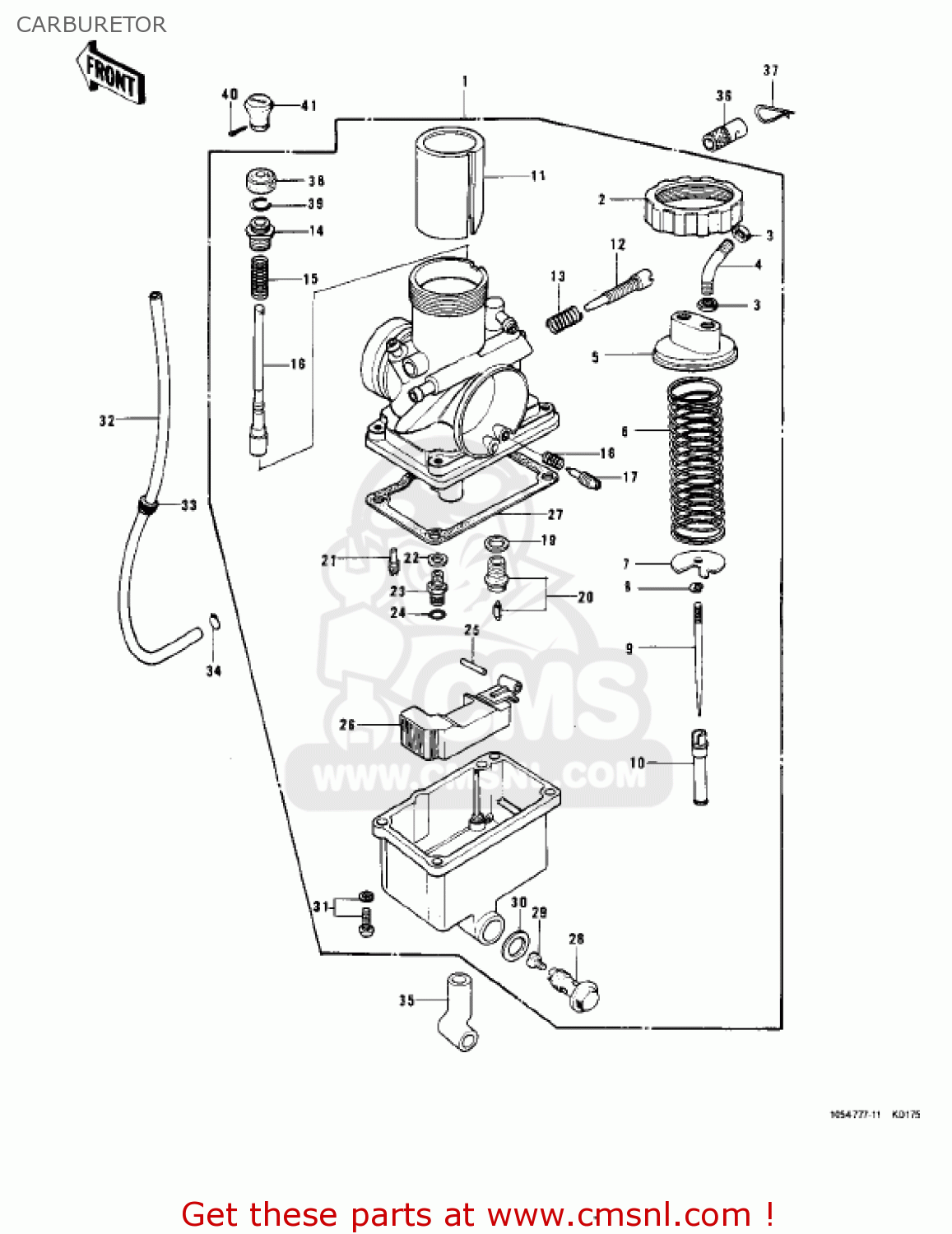

CARBURETOR

ref

part #

description

quantity

1

16001273
ref: 1
VM26SS

CARBURETOR ASSEMBLY

€ 513.00

2

16004011
ref: 2

CAP-MIXING CHAMBER

€ 6.00

3

16003004
ref: 3

NUT-CABLE ADJUST LOCK

€ 4.50

4

16077015
ref: 4

CABLE GUIDE

€ 42.50

5

16005025
ref: 5

TOP,MIXING CHAMBER

€ 8.50

6

16006029
ref: 6
KD175-A1

SPRING,THROTTLE VALVE

€ 13.00

6

16006031
ref: 6
KD175-A2/A3/A4

SPRING,THROTTLE VALVE

€ 3.50

7

16007025
ref: 7

SPRING,THRTTL VALVES

€ 6.00

8

16008010
ref: 8

CLAMP,E-TYPE

€ 5.00

9

16009040
ref: 9

NEEDLE-JET,4EJ3

€ 28.00

10

16017094
ref: 10

NEEDLE JET,O-8

€ 19.00

11

16025079
ref: 11

VALVE,THROTTLE,CA2.5

€ 45.50

12

16021023
ref: 12

SCREW-THROTTLE STOP

€ 12.50

13

16022005
ref: 13

SPRING-THR STOP SCREW

€ 5.50

14

16012021
ref: 14

CAP-STARTER PLUNGER

€ 11.50

15

16013010
ref: 15

SPRING,STARTER PLUNGR

€ 3.50

16

16016020
ref: 16

STARTER PLUNGER

€ 25.00

17

16014002
ref: 17

SCREW-PILOT AIR

€ 11.00

18

16022007
ref: 18

SPRING-THR STOP SCREW

€ 5.50

19

16029004
ref: 19

WASHER-FLOAT VLV SEAT

€ 2.50

20

16030025
ref: 20

VALVE-FLOAT,#2.6

€ 82.00

21

92064022
ref: 21

PILOT JET #30 ISO

€ 11.50

22

16034001
ref: 22

WASHER-MAIN JET

€ 2.50

23

16065008
ref: 23

HOLDER,JET NEEDLE

€ 12.00

24

92055044
ref: 24

'O' RING

€ 7.00

25

16032006
ref: 25

PIN,FLOAT

€ 4.00

26

16031026
ref: 26

FLOAT

€ 40.00

27

16019023
ref: 27

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

28

92001097
ref: 28

BOLT-BANJO

€ 15.50

29

920631028
ref: 29
STD

JET-MAIN,#A102.5R

€ 10.00

29

920631031
ref: 29

MAIN JET,#95R

€ 10.00

29

920631035
ref: 29

MAIN JET,#97.5R

€ 10.00

29

920631033
ref: 29

JET-MAIN,#A100R

€ 17.00

29

920631042
ref: 29

JET-MAIN,#A105R

€ 10.50

30

16034005
ref: 30

WASHER,BANJO BOLT (MCA)

€ 3.00

31

223B0414
ref: 31

SCREW PAN-WS-CROS

€ 2.50

32

92059072
ref: 32

TUBE,4.5X9X545

€ 22.00

33

92071038
ref: 33

GROMMET,PIPE

€ 2.50

34

92037010
ref: 34

CLAMP-FUEL PIPE

€ 2.50

35

16136011
ref: 35

GROMMET,OVERFLOW PIPE

€ 5.50

36

16002016
ref: 36

ADJUSTER,CABLE

€ 7.00

37

92036018
ref: 37

CIRCLIP

€ 2.50

38

16036012
ref: 38

BOOT,STARTER PLUNGER

€ 4.50

39

920371077
ref: 39

CLAMP

€ 3.00

40

550D1615
ref: 40

PIN-COTTER,1.6X15

€ 1.50

41

92077022
ref: 41

KNOB,CARBURETOR

€ 7.00
