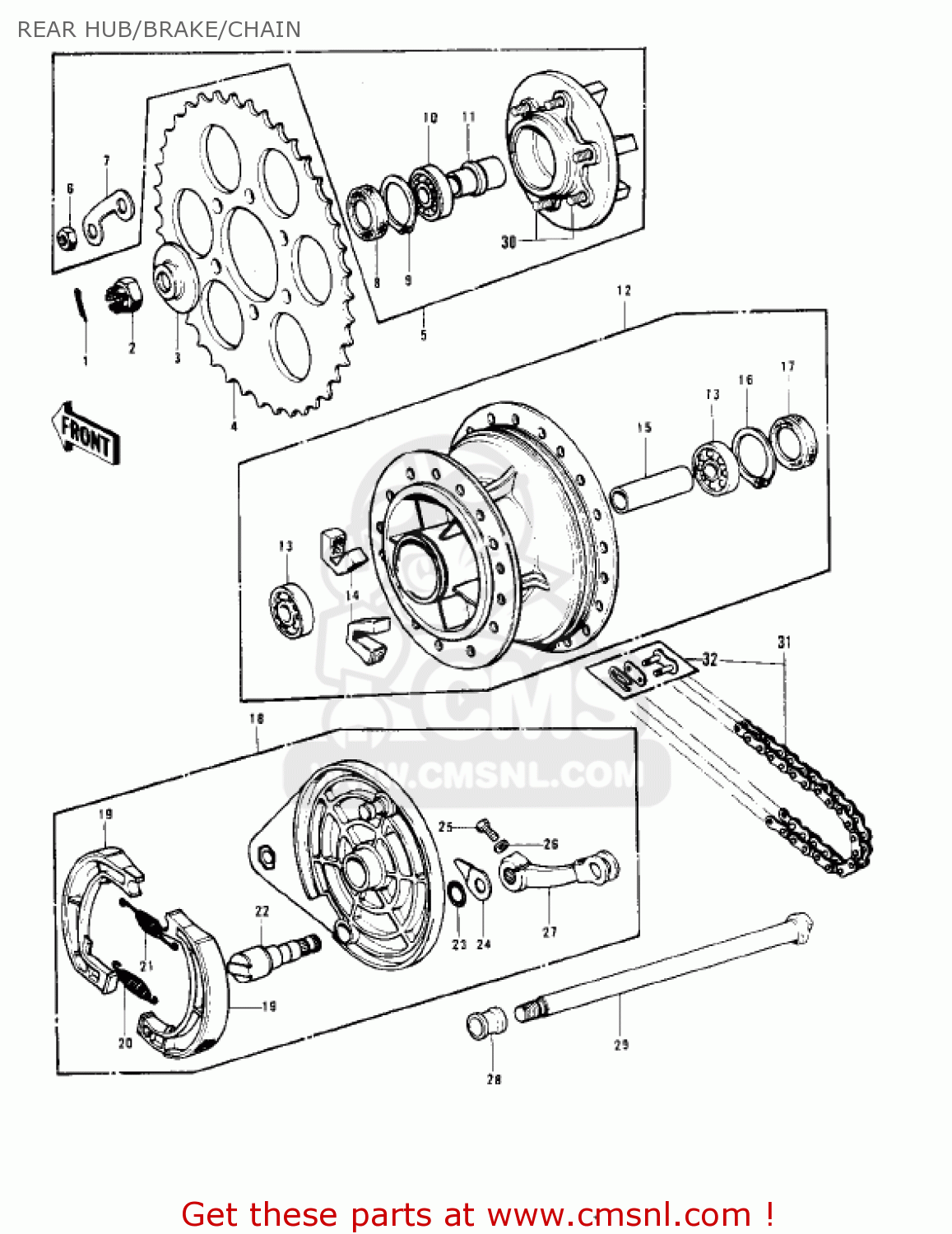

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92103006
ref: 2

NUT,CASTLE,14MM

€ 9.00

3

42032058
ref: 3

COLLAR,15X26X14

€ 18.50

4

42041159
ref: 4
STD

REAR SPROCKET,48T

€ 35.00

4

42041136
ref: 4
OPTION

REAR SPROCKET,47T

€ 36.00

4

42041146
ref: 4
OPTION

REAR SPROCKET,50T

€ 36.50

4

42041147
ref: 4
OPTION

REAR SPROCKET,54T

€ 55.00

5

42008031
ref: 5

COUPRING ASSY,RR HUB

€ 115.50

6

311B0800
ref: 6

NUT,8MM

€ 0.50

7

92088019
ref: 7

WASHER,SPROCKET LOCK

€ 4.00

8

92050060
ref: 8

OIL SEAL,RR HUB BRNK

€ 12.00

9

920331041
ref: 9

CIRCLIP,42MM

€ 4.00

10

601B6004
ref: 10

BEARING-BALL,#6004C3

€ 10.50

11

42036018
ref: 11

SLEEVE,RR HUB COUPLN

€ 19.50

12

4200504680
ref: 12

DRUM ASSY,RR BRK,BUFF

€ 205.00

13

601B6202
ref: 13

BEARING-BALL,#6202C3

€ 14.50

14

42014023
ref: 14

DAMPER,RR HUB SHOCK

€ 10.00

15

42010029
ref: 15

COLLAR,L=60

€ 11.00

16

481J3500
ref: 16

CIRCLIP-TYPE-C,35MM

€ 1.00

17

654A223508
ref: 17

OIL SEAL

€ 7.50

18

4200607280
ref: 18

PANEL ASSY,RR BK,BUFF

€ 161.50

19

42019010
ref: 19

SHOE,BRAKE (MCA)

€ 26.00

20

920811550
ref: 20

SPRING,BRAKE SHOE

€ 6.00

21

920811766
ref: 21

SPRING,BRAKE SHOE

€ 5.50

22

42026025
ref: 22

CAM SHAFT,REAR BRAKE

€ 13.50

23

92055004
ref: 23

RING-O,BRAKE CAM

€ 3.00

24

41085002
ref: 24

INDICATOR,BRAKE SHOE

€ 2.50

25

112B0622
ref: 25

BOLT, 6X22

€ 2.50

26

410B0600
ref: 26

WASHER-PLAIN-SMALL,6M

€ 0.50

27

42029030
ref: 27

LEVER-BRAKE CAM

€ 44.50

28

42032057
ref: 28

COLLAR,REAR AXLE,R.H

€ 12.00

29

42031046
ref: 29

AXLE,REAR

€ 45.50

30

920041015
ref: 30

STUD,8X17

€ 2.50

31

92057098
ref: 31
EK428SH

DRIVE CHAIN,428X120H

€ 253.00

32

920581015
ref: 32

JOINT-CHAIN,EK428SH

€ 3.50
