OPTIONAL PARTS
KD175-A1 1976 CANADA

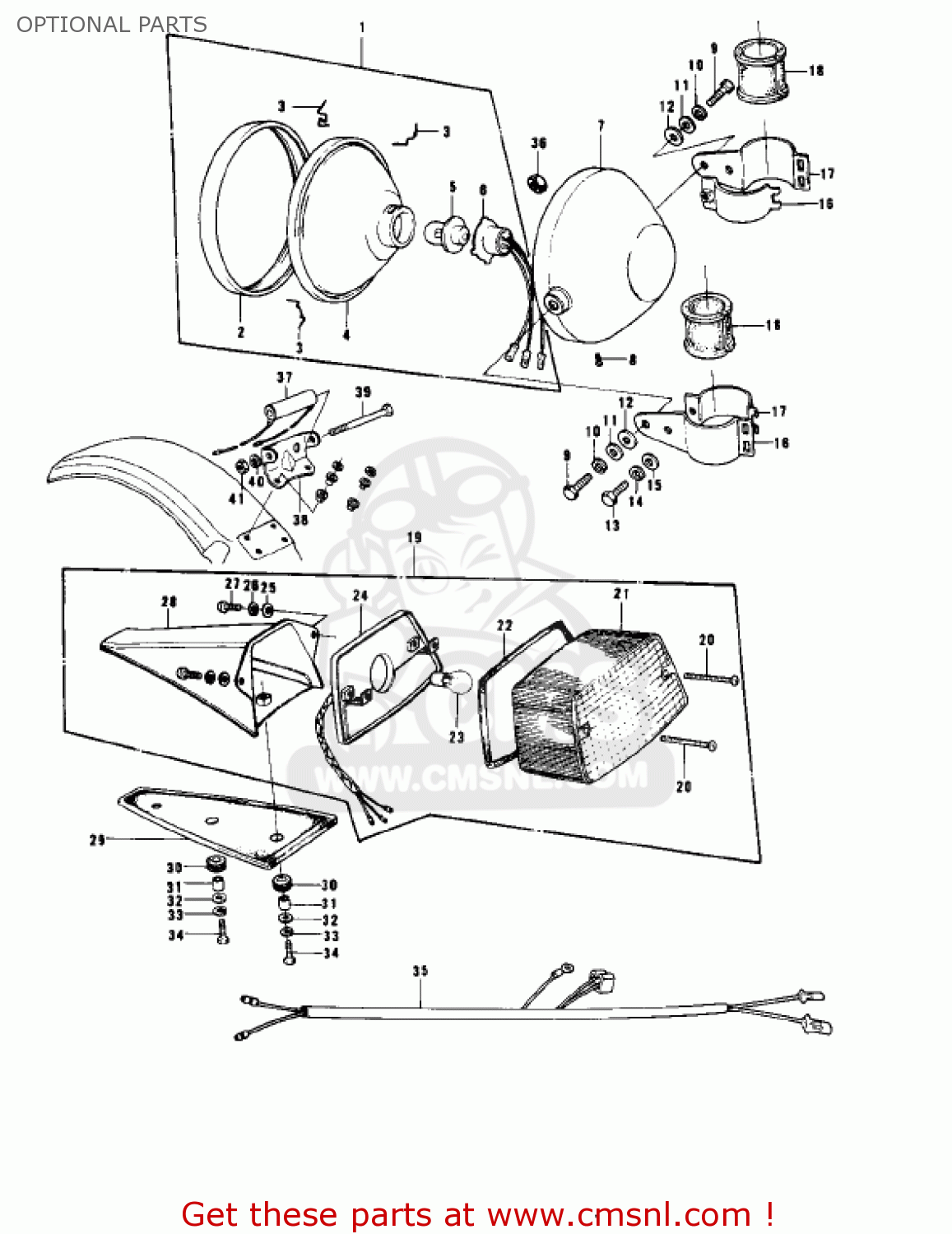

Optional parts diagram KD175-A1 1976 CANADA
OPTIONAL PARTS KD175-A1 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23004023
ref: 1
LAMP-HEAD
€ 75.00
2
23006043
ref: 2
RIM,HEAD LAMP
€ 44.50
3
23009014
ref: 3
SPRING,HEAD LAMP LENS
€ 3.50
4
23007010
ref: 4
LENS-COMP
€ 42.00
5
92069031
ref: 5
BULB 6V 25/25W
€ 6.50
6
23008009
ref: 6
SOCKET-ASSY,HEAD LAMP
€ 12.50
7
23005100621
ref: 7
KD175-A1/A2
BODY-COMP-HEAD LAMP,F
€ 52.00
7
23005100621
ref: 7
KD175-A3/A4
BODY-COMP-HEAD LAMP,F
€ 52.00
8
222E0508A
ref: 8
KD175-A1/A2
SCREW-OVL CNTSNK,5X8
€ 2.00
8
23019025
ref: 8
KD175-A3/A4
SCREW,PAN HEAD,5X14
€ 1.50
9
92007045
ref: 9
BOLT, HEX HEAD, 10X25
€ 6.00
10
461F1000
ref: 10
WASHER-SPRING,10MM
€ 0.50
11
411B1000
ref: 11
WASHER-PLAIN,10MM
€ 0.50
12
463H1000
ref: 12
WASHER-LOCK,10MM
€ 0.50
13
92007003
ref: 13
BOLT,HEADLAMP MOUNT
€ 11.00
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
411B0800
ref: 15
WASHER-PLAIN,8MM
€ 0.50
16
23064018
ref: 16
HEADLAMP BRACKET
€ 66.00
17
23064019
ref: 17
HEADLAMP BRACKET
€ 66.00
18
92075064
ref: 18
DAMPER RUBBER
€ 5.50
18
230240843G
ref: 18
LAMP ASSY, TAIL,WHITE
€ 132.00
20
220E0325
ref: 20
SCREW-PAN-CROS
€ 2.00
21
23026040
ref: 21
LENS,TAIL LAMP
€ 28.50
22
23028020
ref: 22
GASKET,TAIL LAMP LENS (NAS)
€ 6.50
23
92069028
ref: 23
BULB 6V 17/5.3W
€ 4.50
24
23027044
ref: 24
BODY-COMP-TAIL LAMP
€ 52.00
25
411B0500
ref: 25
WASHER-PLAIN,5MM
€ 0.50
26
461F0500
ref: 26
WASHER-SPRING,5MM
€ 0.50
27
220E0510A
ref: 27
SCREW-PAN HEAD,5X10
€ 1.50
28
230360423G
ref: 28
BKT,LICENSE PLT,WHITE
€ 49.50
29
23066018
ref: 29
DAMPER RUBBER
€ 4.00
30
92075121
ref: 30
DAMPER,FENDER
€ 2.50
31
92027120
ref: 31
COLLAR
€ 3.00
32
92022228
ref: 32
WASHER-PLAIN,7MM
€ 2.50
33
461F0600
ref: 33
WASHER-SPRING,6MM
€ 0.50
34
112B0622
ref: 34
BOLT, 6X22
€ 2.50
35
26001138
ref: 35
WIRING HARNESS,MAIN
€ 80.50
36
314B1000
ref: 36
NUT,10MM
€ 0.50
37
280181009
ref: 37
KD175-A3/A4
RESISTOR,40W
€ 33.50
38
110341142
ref: 38
KD175-A3/A4
RESISTOR BRACKET
€ 13.50
39
110B08110
ref: 39
KD175-A3/A4
BOLT,HEX HEAD,8X110
€ 3.50
40
461F0800
ref: 40
KD175-A3/A4
WASHER-SPRING,8MM
€ 0.50
41
312B0800
ref: 41
KD175-A3/A4
NUT,8MM
€ 0.50
