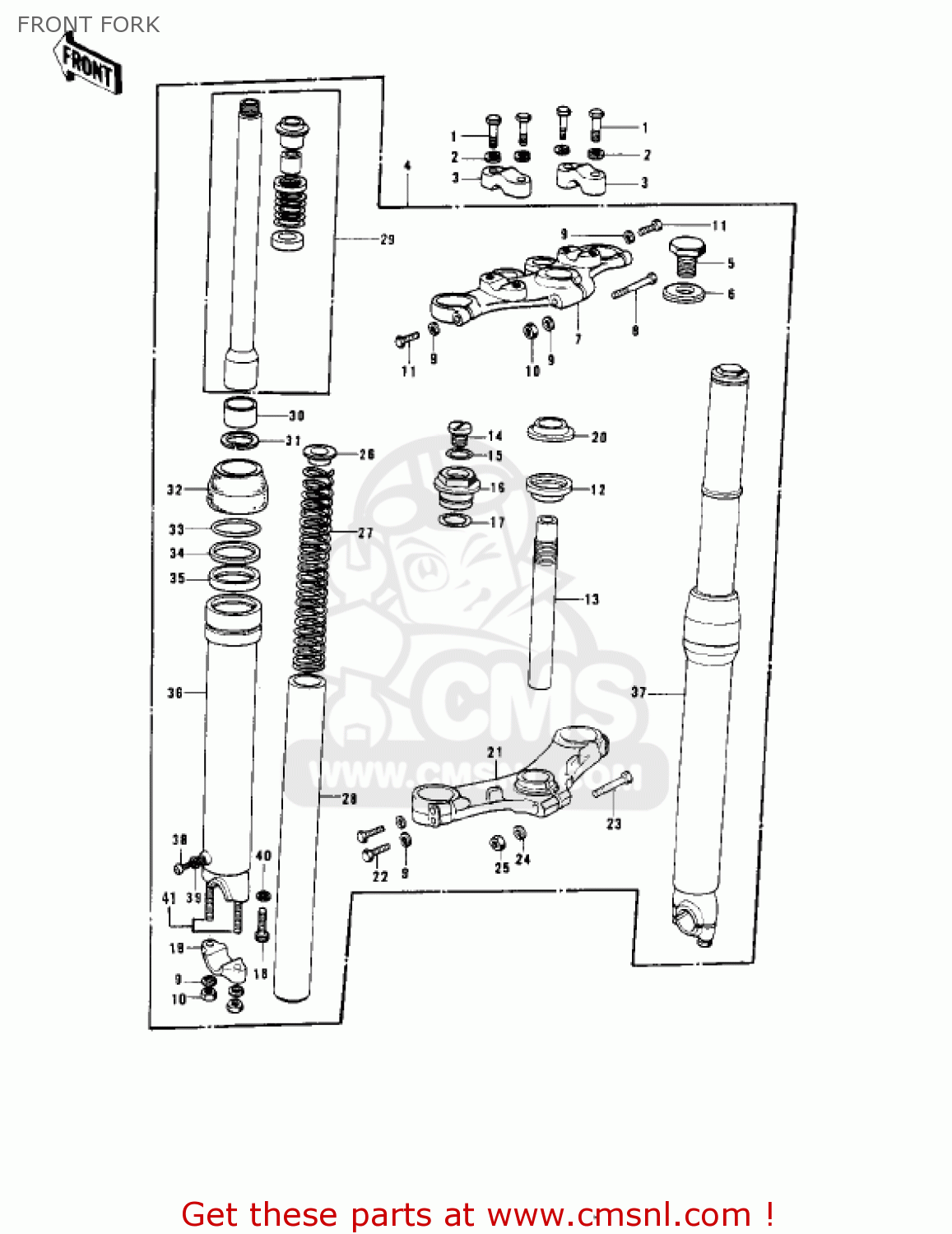

FRONT FORK

ref

part #

description

quantity

1

920011405
ref: 1

BOLT,8X38

€ 10.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

46012014
ref: 3

HOLDER-HANDLE

€ 15.50

4

44001192
ref: 4

FRONT FORK

€ 1,782.50

5

44041007
ref: 5

BOLT-STRNG STEM HEAD

€ 11.50

6

44043016
ref: 6

WASHER,FORK UPPER HOL

€ 7.00

7

44039068
ref: 7

HEAD,STEERING STEM

€ 78.00

8

44041065
ref: 8

BOLT,FORK TOP

€ 18.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

311B0800
ref: 10

NUT,8MM

€ 0.50

11

44041044
ref: 11

BOLT-STEERING STEM HD

€ 6.50

12

44010020
ref: 12

DUST SHIELD-STRNG STM

€ 2.50

13

44052011
ref: 13

SHAFT,STEERING STEM

€ 45.50

14

44041082
ref: 14

SCREW,FORK DRIN

€ 3.00

15

44046024
ref: 15

'O' RING

€ 1.00

16

44032013
ref: 16

BOLT,FORK TOP

€ 14.50

17

44046013
ref: 17

'O'RING,FORK FIT BOLT

€ 3.50

18

44041040
ref: 18

BOLT-FORK CYLINDER

€ 4.50

19

44063013
ref: 19

HOLDER,FRONT AXLE

€ 14.00

20

92047010
ref: 20

CONE-STERNG BERG LOW

€ 10.00

21

44038010
ref: 21

STEM,STEERING

€ 191.50

22

110N0835
ref: 22

BOLT, HEX HEAD, 8X35

€ 1.50

23

44041042
ref: 23

BOLT-STEERING STEM HD

€ 3.00

24

461F1000
ref: 24

WASHER-SPRING,10MM

€ 0.50

25

311B1000
ref: 25

NUT,10MM

€ 0.50

26

44028038
ref: 26

GUIDE,FORK SPRING

€ 3.50

27

44026069
ref: 27

SPRING,FORK INNER

€ 19.00

28

44013056
ref: 28

FORK INNER TUBE

€ 290.50

29

44022036
ref: 29

CYLINDER,FORK

€ 39.00

30

44018010
ref: 30

PISTON,FORK CYLINDER

€ 5.50

31

481J2600
ref: 31

CIRCLIP,26MM

€ 1.50

32

44010033
ref: 32

DUST SHIELD FORK

€ 17.00

33

44044022
ref: 33

CIRCLIP,FORK OUTER

€ 1.50

34

44043059
ref: 34

WASHER,FORK OUT TUBE

€ 1.50

35

44009025
ref: 35

OIL SEAL,FORK

€ 16.50

36

44005062
ref: 36

TUBE,L.H FORK OUTER

€ 139.50

37

44006060
ref: 37

TUBE,R.H FORK OUTER

€ 133.00

38

220B0408
ref: 38

SCREW-PAN-CROS

€ 0.50

39

44045002
ref: 39

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

40

44045057
ref: 40

GASKET (NAS)

€ 3.00

41

172G0830
ref: 41

STUD,8X30

€ 1.50
