SWING ARM/SHOCK ABSORBER
KC100C5 1987 USA

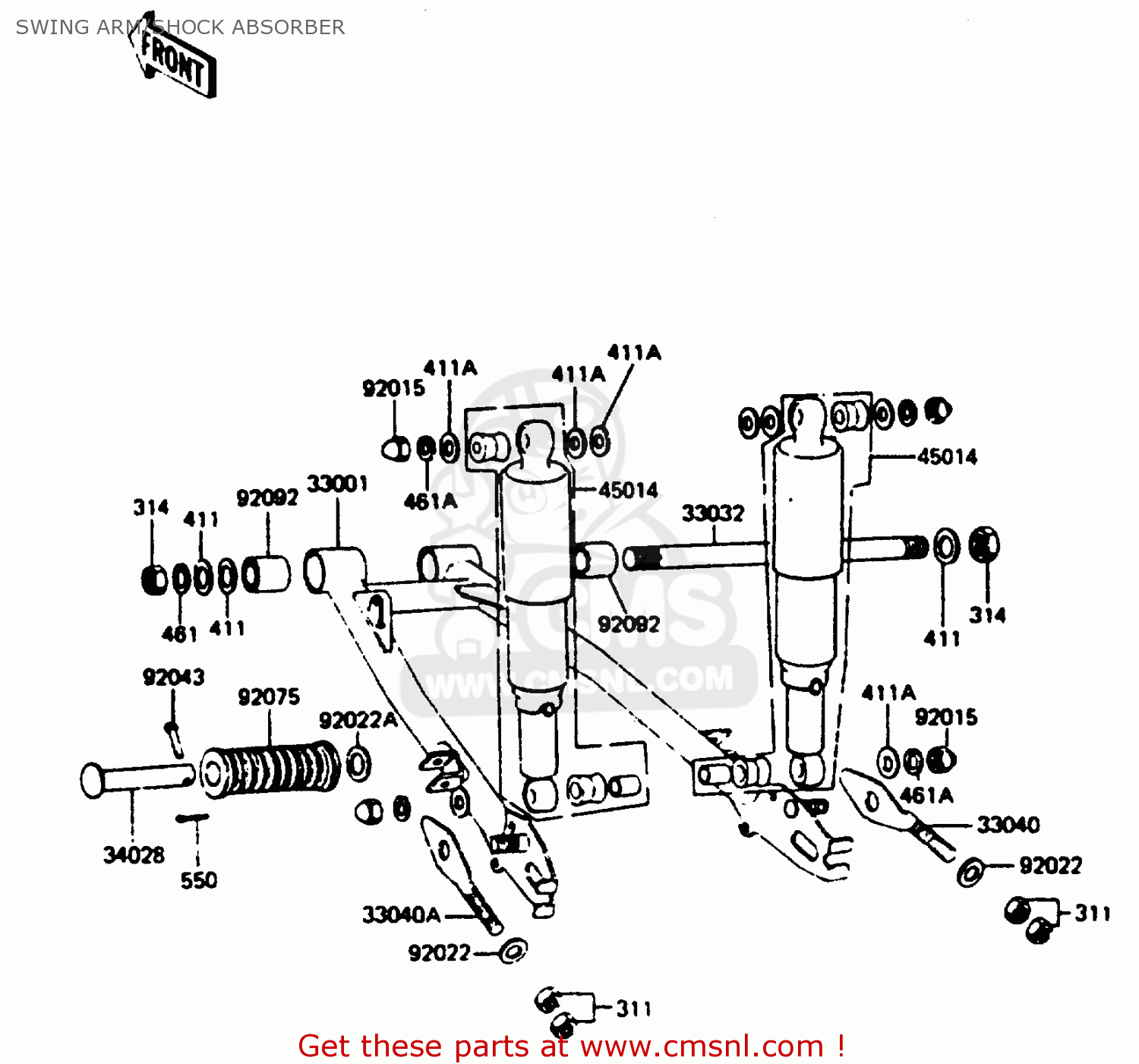

Swing arm/shock absorber diagram KC100C5 1987 USA
SWING ARM/SHOCK ABSORBER KC100C5 1987 USA
×
prices are in EUR
ref
part #
description
quantity
33001
330011108
ref: 33001
ARM,SWINGING
€ 115.00
33032
33032009
ref: 33032
SHAFT-SWING ARM PIVOT
€ 12.50
33040
33040008
ref: 33040
ADJUSTER-CHAIN
€ 7.00
33040A
33040010
ref: 33040A
ADJUSTER-CHAIN,LH
€ 8.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
45014
45014054H1
ref: 45014
SHOCKABSORBER,S.RED
€ 86.00
92015
92020014
ref: 92015
NUT,CAP,12MM
€ 6.50
92022
92022116
ref: 92022
WASHER-PLAIN
€ 2.50
92022A
920221568
ref: 92022A
WASHER,20X30X2.3
€ 2.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92075
92076020
ref: 92075
DAMPER
€ 7.50
92092
92092006
ref: 92092
BUSHING-RUBBER,SWING
€ 11.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
314
314B1000
ref: 314
NUT,10MM
€ 0.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
411A
411B1200
ref: 411A
WASHER-PLAIN,12MM
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
461A
461F1200
ref: 461A
WASHER-SPRING,12MM
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
