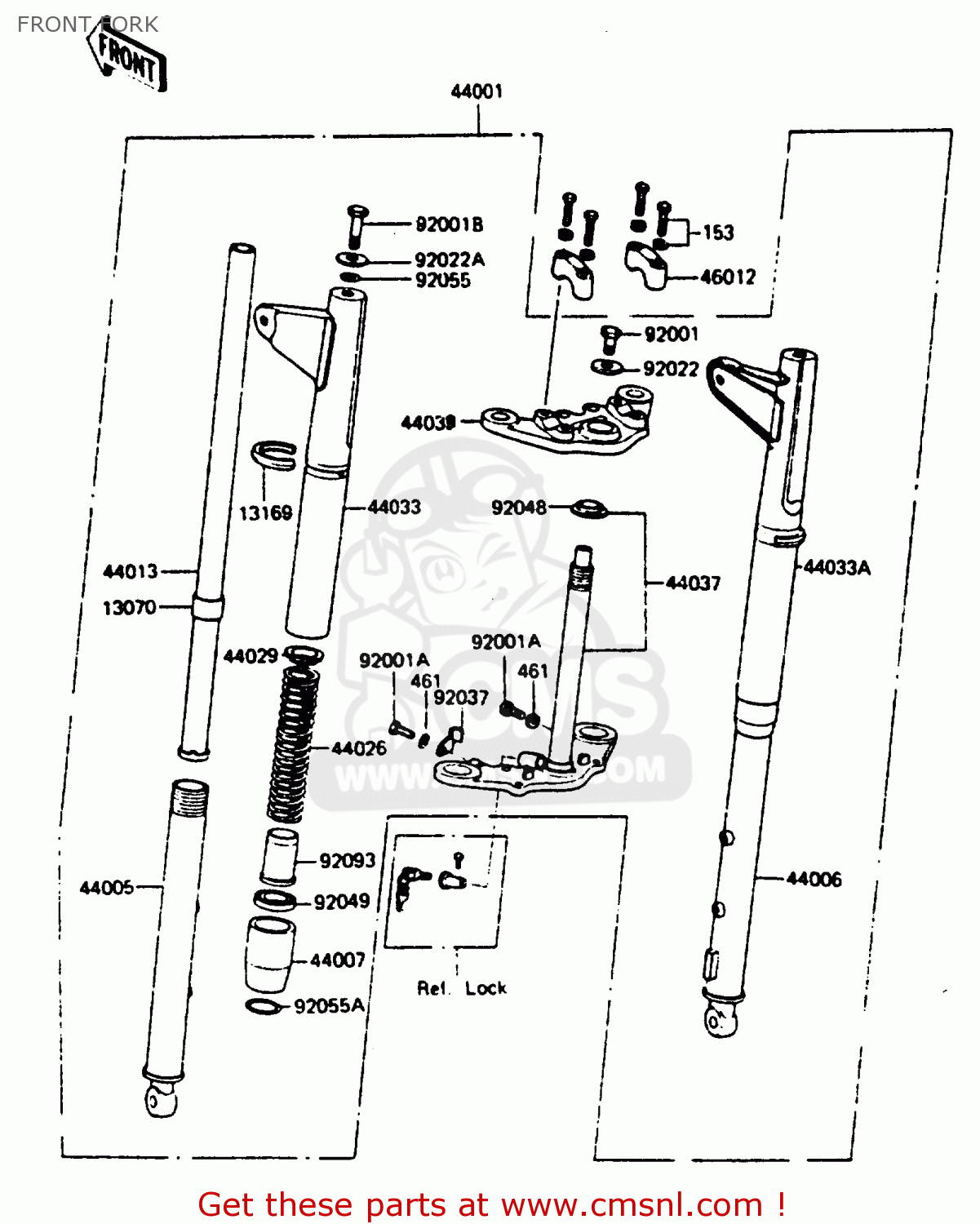

FRONT FORK

ref

part #

description

quantity

13070

44015003
ref: 13070

GUIDE,FORK INNER PIPE

€ 8.50

13169

44064004
ref: 13169

PLATE,FORK COVER

€ 12.00

44001

44001150H1
ref: 44001

FORK-FRONT,S.RED

€ 577.00

44005

44005029
ref: 44005

FORK OUTER TUBE,LH

€ 244.50

44006

44006028
ref: 44006

FORK OUTER TUBE,RH

€ 120.00

44007

44007017
ref: 44007

NUT-FORK OUTER TUBE

€ 28.50

44013

44013010
ref: 44013

TUBE-FORK INNER

€ 55.00

44026

44026010
ref: 44026

SPRING-FORK

€ 14.00

44029

44029005
ref: 44029

GUIDE-FORK SPRING

€ 2.00

44033

44033045H1
ref: 44033

COVER-FORK,LH,S.RED

€ 33.50

44033A

44034044H1
ref: 44033A

COVER-FORK,RH,S.RED

€ 39.50

44037

44037020
ref: 44037

STEM-STEERING

€ 67.50

44039

44039013
ref: 44039

HOLDER-FORK UPPER

€ 103.00

46012

46012004
ref: 46012

HOLDER-UPPER HANDLBAR

€ 14.00

92001

44041008
ref: 92001

BOLT-STEERING STEM

€ 11.50

92001A

44041010
ref: 92001A

BOLT-PINCH

€ 5.00

92001B

44041020
ref: 92001B

BOLT-FORK TOP

€ 7.00

92022

44043016
ref: 92022

WASHER,FORK UPPER HOL

€ 7.00

92022A

44043017
ref: 92022A

WASHER,FORK TOP

€ 3.50

92037

92037022
ref: 92037

CLAMP

€ 2.50

92068

92047013
ref: 92068

CONE,STRG STM

€ 12.50

92049

44009003
ref: 92049

OIL SEAL-FORK

€ 14.00

92055

44046002
ref: 92055

RING-O,INNER PIPE,UPP (NAS)

€ 3.00

92055A

44046005
ref: 92055A

RING-O,OUTER PIPE

€ 5.50

92093

44010015
ref: 92093

DUST SHIELD-FORK

€ 5.50

153

153N0835
ref: 153

BOLT-WS-SMALL

€ 2.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50
