BRAKE PEDAL
KC100C5 1987 USA

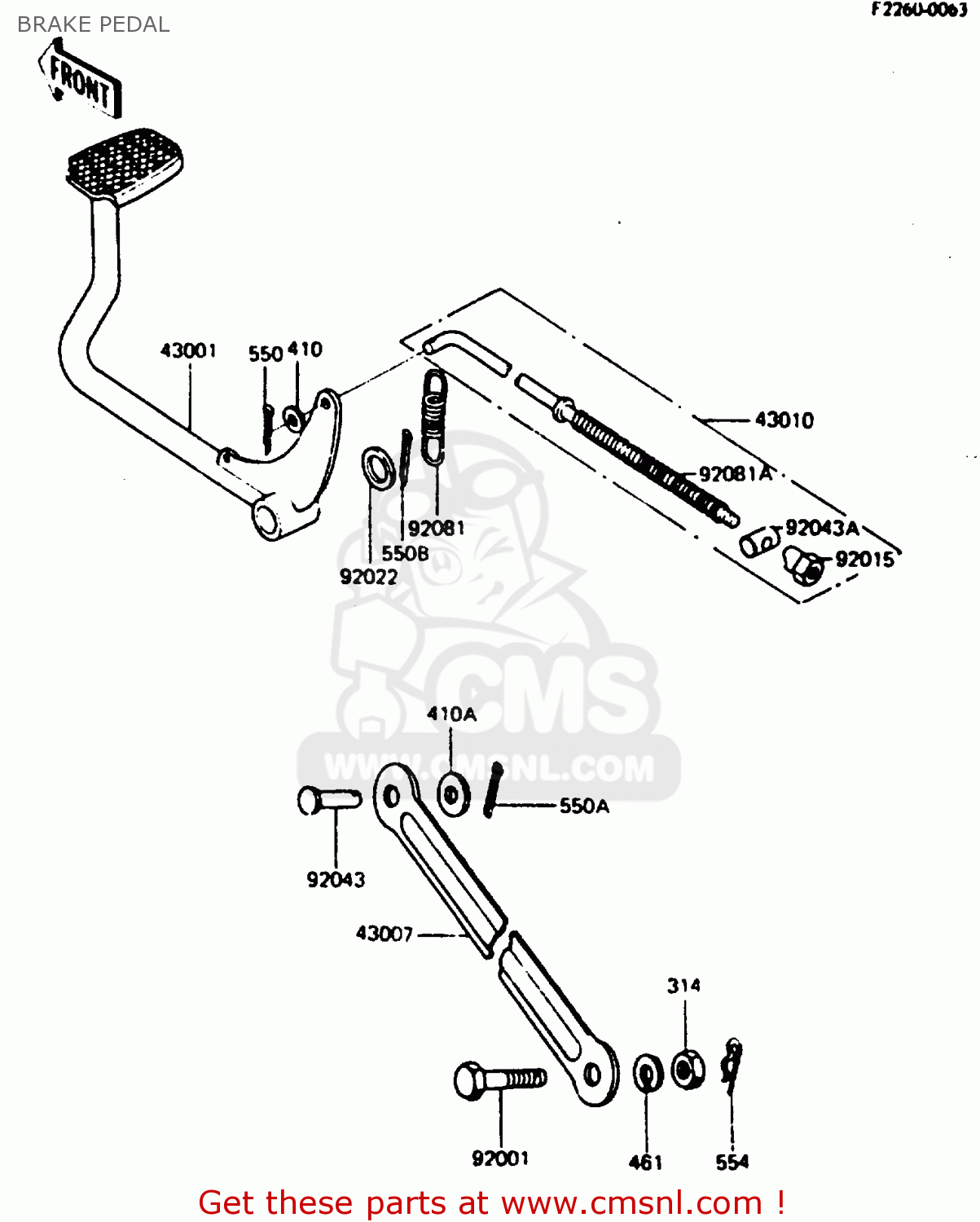

Brake pedal diagram KC100C5 1987 USA
BRAKE PEDAL KC100C5 1987 USA
×
prices are in EUR
ref
part #
description
quantity
43001
43001014
ref: 43001
PEDAL-BRAKE
€ 19.50
43007
43007007
ref: 43007
TORQUE LINK,REAR BRK
€ 6.50
43010
430105003
ref: 43010
BRAKE ROD ASSY
€ 15.00
92001
92003003
ref: 92001
BOLT-HEX HEAD,10X32
€ 4.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92022
92022085
ref: 92022
WASHER,15.3X24X1.2
€ 2.50
92043
43009001
ref: 92043
PIN-REAR TORQUE LINK
€ 4.50
92043A
92043039
ref: 92043A
PIN,BRAKE ROD
€ 4.50
92081
43005005
ref: 92081
SPRING-BRAKE PEDAL
€ 3.00
92081A
43012001
ref: 92081A
SPRING,BRAKE ROD
€ 3.00
314
314B1000
ref: 314
NUT,10MM
€ 0.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
410A
410B1000
ref: 410A
WASHER-PLAIN-SMALL,10
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
550A
550D2520
ref: 550A
PIN-COTTER,2.5X20
€ 1.00
550B
550D3030
ref: 550B
PIN-COTTER,3.0X30
€ 1.50
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
