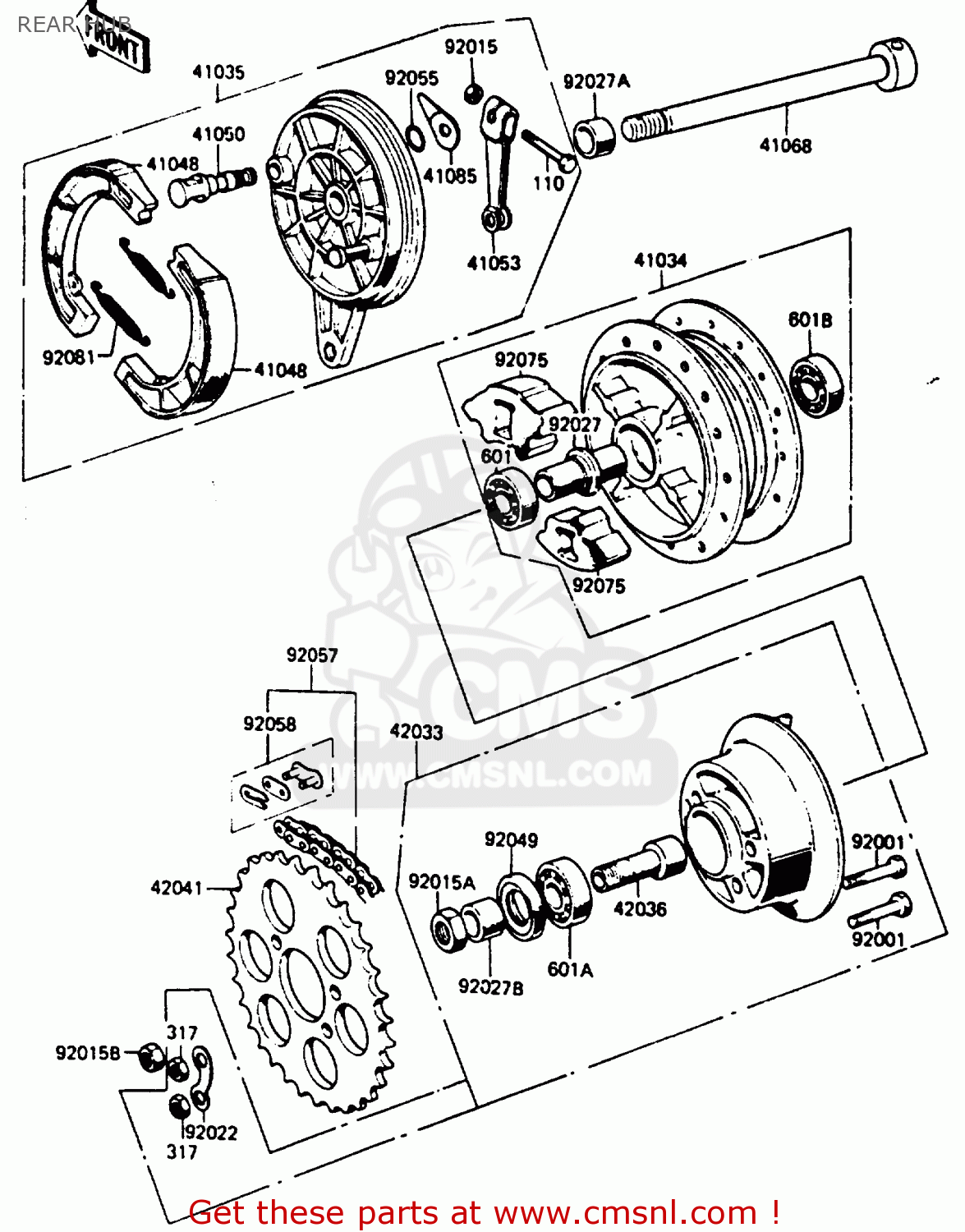

REAR HUB

ref

part #

description

quantity

41034

410341039
ref: 41034

DRUM-ASSY,RR

€ 263.50

41035

4200606780
ref: 41035

PANEL ASSY,RR BK,BUFF

€ 188.00

41048

41048017
ref: 41048

SHOE,BRAKE (MCA)

€ 13.00

41050

41050012
ref: 41050

CAM-BRAKE

€ 18.00

41053

41053002
ref: 41053

LEVER-BRAKE CAM

€ 11.50

41068

410681109
ref: 41068

AXLE,12X215

€ 26.00

41065

41085003
ref: 41065

INDICATOR,BRAKE SHOE

€ 9.00

42033

420331026
ref: 42033

COUPLING-ASSY

€ 93.50

42036

42036002
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 30.00

42041

42041048
ref: 42041

REAR SPROCKET 37T

€ 34.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

42045004
ref: 92015A

NUT,16MM

€ 4.00

92015B

42045005
ref: 92015B

NUT,10MM

€ 5.00

92022

92088003
ref: 92022

WASHER,SPROCKET LOCK

€ 3.00

92027

42010005
ref: 92027

COLLAR,L=58

€ 8.50

92027A

42032002
ref: 92027A

COLLAR,12.2X22X30.5

€ 9.00

92027B

42037003
ref: 92027B

COLLAR,17X25X12.5

€ 7.50

92049

92052003
ref: 92049

OIL SEAL-COUPLING

€ 8.50

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571082
ref: 92057

CHAIN,DRIVE,EK428-G

€ 19.50

92058

920581014
ref: 92058

JOINT-CHAIN,EK428-G

€ 3.50

92075

42014016
ref: 92075

DAMPER,RR HUB SHOCK

€ 12.50

92081

41049002
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

601

601B6201Z
ref: 601

BEARING-BALL,#6201ZC3

€ 11.50

601A

601B6203
ref: 601A

BEARING-BALL,#6203C3

€ 10.50

601B

601B6301Z
ref: 601B

BEARING-BALL,#6301ZC3

€ 15.00

all assemblies
