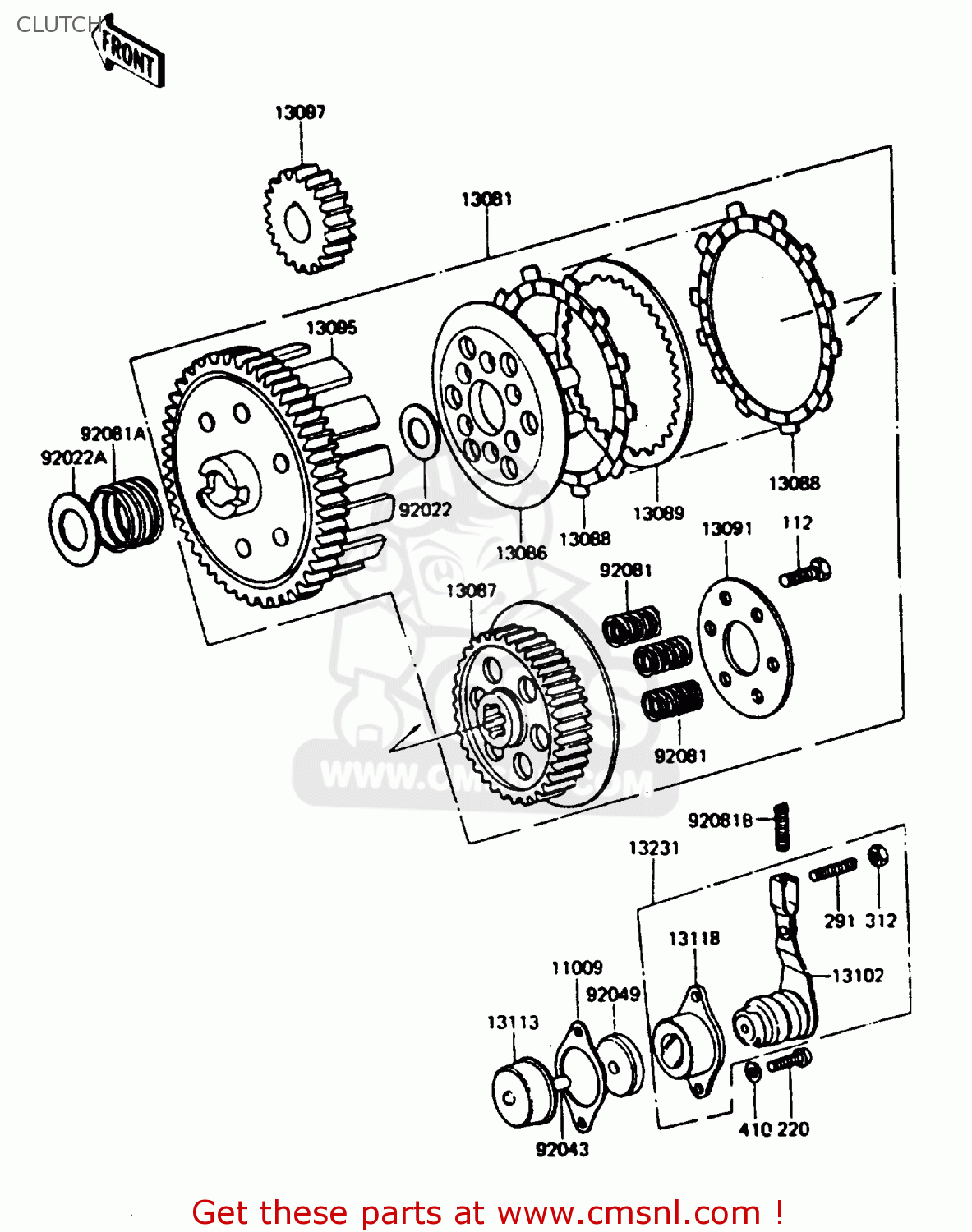

CLUTCH

ref

part #

description

quantity

11009

13246001
ref: 11009

GASKET,CLUTCH RELEASE (MCA)

€ 3.50

13081

13081028
ref: 13081

CLUTCH ASSY

€ 193.00

13086

130861002
ref: 13086

WHEEL,CLUTCH

€ 33.00

13087

130871011
ref: 13087

HUB-CLUTCH

€ 74.00

13088

13088006
ref: 13088

PLATE-CLUTCH FRICTION (MCA)

€ 11.00

13089

13089005
ref: 13089

PLATE-CLUTCH STEEL (NAS)

€ 8.50

13091

13091003
ref: 13091

HOLDER-CLUTCH SPRING

€ 12.50

13095

13095022
ref: 13095

HOUSING,CLUTCH

€ 216.00

13097

13121036
ref: 13097

PINION,PRIMARY

€ 92.50

13102

131021016
ref: 13102

RELEASE-COMP-CLUTCH,I

€ 30.00

13113

13113003
ref: 13113

PUSHER-COMP-CLUTCH

€ 6.50

13118

131181001
ref: 13118

RELEASE-CLUTCH OUTER

€ 16.00

13231

132311008
ref: 13231

RELEASE-ASSY-CLUTCH

€ 55.00

92022

92022054
ref: 92022

WASHER,16.5X27X1.4

€ 4.50

92022A

92022057
ref: 92022A

WASHER,25.5X36X1

€ 2.50

92043

92042043
ref: 92043

PIN,DOWEL,7X20

€ 3.50

92049

92050071
ref: 92049

OIL SEAL

€ 7.00

92081

92081012
ref: 92081

SPRING-CLUTCH

€ 4.00

92081A

92081015
ref: 92081A

SPRING-CLUTCH DAMPER

€ 4.00

92081B

92081096
ref: 92081B

SPRING-CLUTCH RELEASE

€ 3.50

112

112G0516
ref: 112

BOLT-UPSET

€ 0.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

291

291H0616
ref: 291

SCREW,SLOTTED,6X16

€ 4.00

312

312B0600
ref: 312

NUT,6MM

€ 0.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
