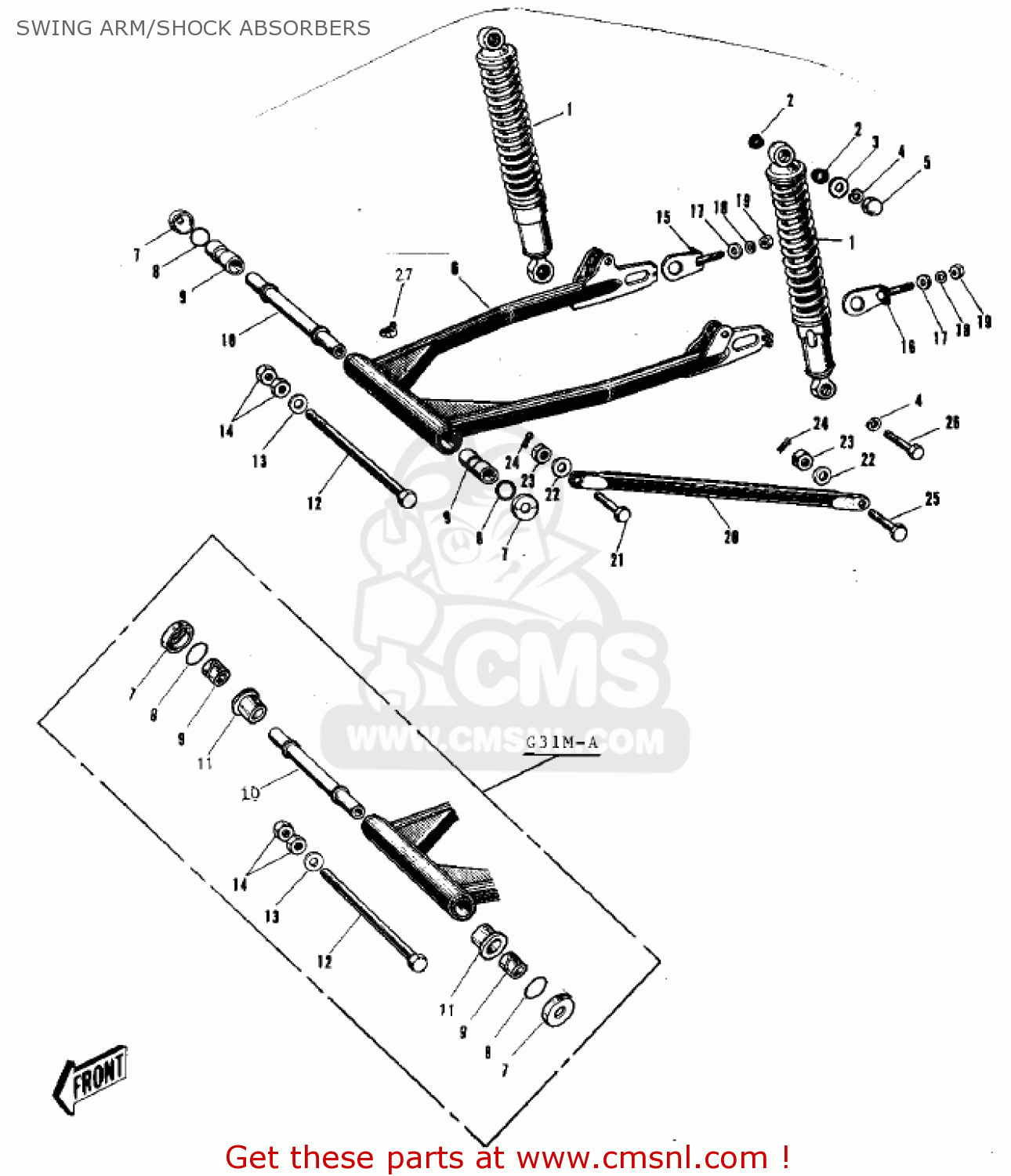

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

45014069
ref: 1

SHOCK ABSORBER-REAR

€ 71.50

2

45017003
ref: 2

BUSH-SHOCK ABSORBER

€ 1.50

3

92022044
ref: 3

WASHER,10.5X26X2.3

€ 2.50

4

461F1000
ref: 4

WASHER-SPRING,10MM

€ 0.50

5

92020003
ref: 5

NUT-SHOCK ABSORBER

€ 4.00

6

33001024
ref: 6

SWING ARM

€ 225.00

6

33001033
ref: 6
G31MA

SWING ARM

€ 225.00

7

33035001
ref: 7

HOLDER-DUST SHIELD

€ 1.50

7

33035005
ref: 7
G31MA

CAP,SWING ARM

€ 5.50

8

92093004
ref: 8

DUST SHIELD PIVOT SFT

€ 1.00

8

671B2530
ref: 8
G31MA

O RING,30MM

€ 3.00

9

33034001
ref: 9

SWING ARM SLEEVE

€ 26.50

9

33034016
ref: 9
G31MA

SLEEVE,12.1X22X39

€ 14.50

10

33036002
ref: 10

COLLAR,SWING ARM

€ 8.00

11

33033009
ref: 11
G31MA

BUSHING,SWING ARM

€ 57.00

12

33032023
ref: 12

SWING ARM PIVOT SHAFT

€ 14.50

13

461F1200
ref: 13

WASHER-SPRING,12MM

€ 0.50

14

315B1200
ref: 14

NUT,12MM

€ 0.50

15

33040038
ref: 15

CHAIN ADJUSTER,RH

€ 9.00

16

33040037
ref: 16

CHAIN ADJUSTER,LH

€ 9.00

17

410B0800
ref: 17

WASHER-PLAIN-SMALL,8M

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

312B0800
ref: 19

NUT,8MM

€ 0.50

20

43007018
ref: 20

TORQUE LINK,REAR BRK

€ 8.50

21

92003017
ref: 21

BOLT-TRQ LINK 10X25

€ 3.50

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

550D2015
ref: 24

PIN-COTTER,2.0X15

€ 1.00

25

92003003
ref: 25

BOLT-HEX HEAD,10X32

€ 4.00

26

113N1035
ref: 26

BOLT-HEX HEAD,10X35

€ 6.00

27

92005002
ref: 27

GREASE NIPPLE

€ 4.00
