FENDERS/NUMBER PLATES
G31MA CENTURION 1971

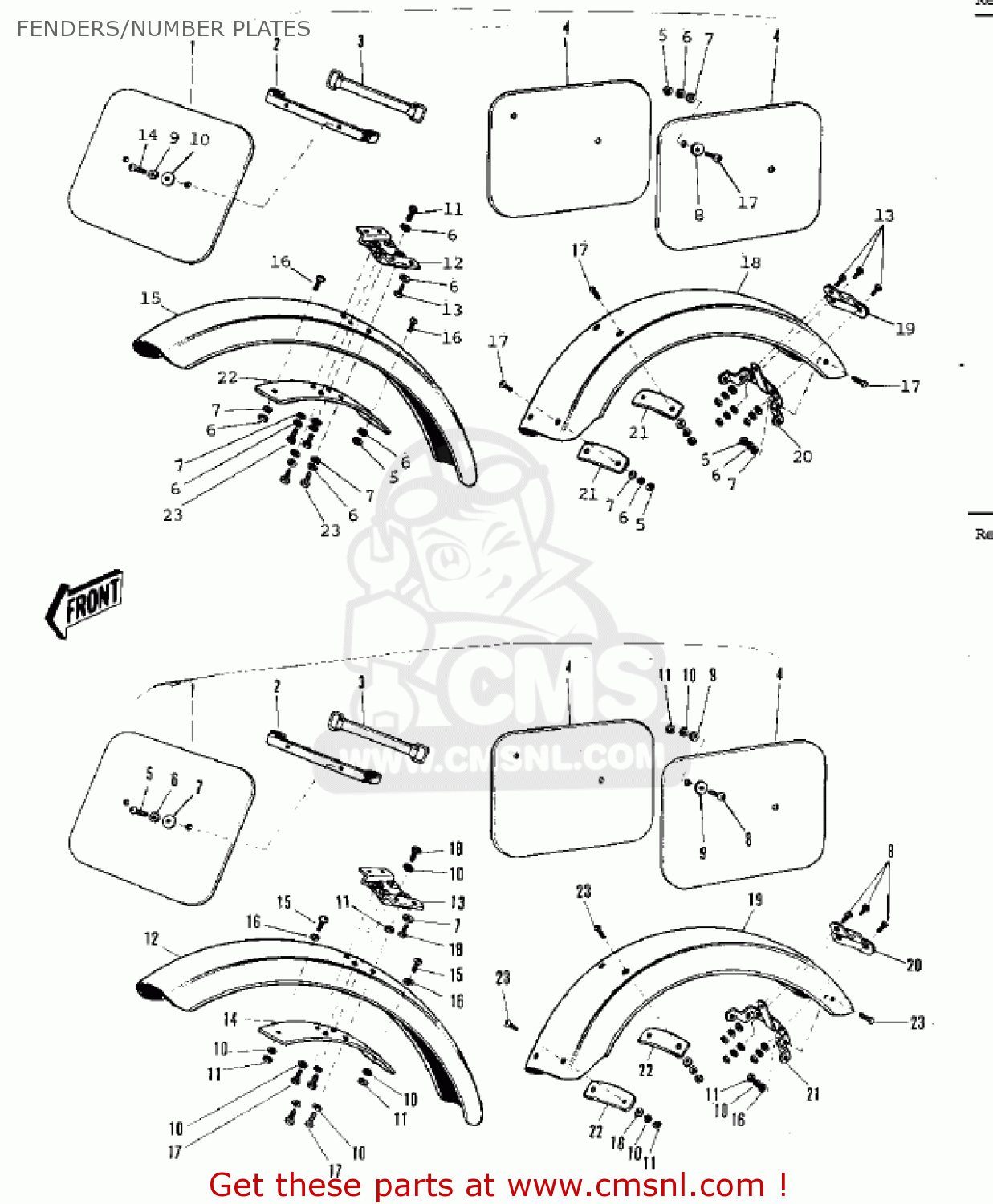

Fenders/number plates diagram G31MA CENTURION 1971
FENDERS/NUMBER PLATES G31MA CENTURION 1971
×
prices are in EUR
ref
part #
description
quantity
1
58029005
ref: 1
G31M
FRONT NUMBER PLATE
€ 41.00
2
58030003
ref: 2
G31M
FRONT NUMBER PLATE BRACKET
€ 13.50
3
92072006
ref: 3
G31M
BAND,L=142.1
€ 8.00
4
58029010
ref: 4
G31M
NUMBER PLATE,REAR
€ 39.50
5
311B0600
ref: 5
G31M
NUT,6MM
€ 0.50
6
461F0600
ref: 6
G31M
WASHER-SPRING,6MM
€ 0.50
7
411B0600
ref: 7
G31M
WASHER-PLAIN,6MM
€ 0.50
8
92022024
ref: 8
G31M
WASHER,7X16X1.2
€ 2.50
9
461F0800
ref: 9
G31M
WASHER-SPRING,8MM
€ 0.50
10
411B0800
ref: 10
G31M
WASHER-PLAIN,8MM
€ 0.50
11
112G0630
ref: 11
G31M
BOLT-UPSET
€ 1.00
12
35012006
ref: 12
G31M
FRONT FENDER BRACKET
€ 12.00
13
112B0614
ref: 13
G31M
BOLT-UPSET 6X14
€ 2.50
14
115G0816
ref: 14
G31M
BOLT-HEX,HEAD 8X16
€ 0.50
15
35004040
ref: 15
G31M
FRONT FENDER
€ 171.00
16
220B0610
ref: 16
G31M
SCREW-PAN HEAD,6X10
€ 2.00
17
112G0612
ref: 17
G31M
BOLT-UPSET
€ 2.50
18
35022042
ref: 18
G31M
REAR FENDER
€ 222.00
19
35025013
ref: 19
G31M
REAR FENDER BRACKET,A
€ 12.00
20
35025014
ref: 20
G31M
REAR FENDER BRACKET,B
€ 20.00
21
35026002
ref: 21
G31M
BRACKET
€ 6.50
22
35013002
ref: 22
G31M
FRONT FENDER STAY
€ 9.50
23
220B0612
ref: 23
G31M
SCREW-PAN HEAD,6X12
€ 1.00
1
58029013
ref: 1
G31MA
FRONT NUMBER PLATE
€ 39.50
2
58030003
ref: 2
G31MA
FRONT NUMBER PLATE BRACKET
€ 13.50
3
92072006
ref: 3
G31MA
BAND,L=142.1
€ 8.00
4
58029015
ref: 4
G31MA
NUMBER PLATE,REAR
€ 38.00
5
115G0818
ref: 5
G31MA
BOLT SMALL-UPSET
€ 2.50
6
461F0800
ref: 6
G31MA
WASHER-SPRING,8MM
€ 0.50
7
920221564
ref: 7
G31MA
WASHER
€ 2.50
8
112B0614
ref: 8
G31MA
BOLT-UPSET 6X14
€ 2.50
9
92022125
ref: 9
G31MA
WASHER,6.5X20X1.6
€ 1.00
10
461F0600
ref: 10
G31MA
WASHER-SPRING,6MM
€ 0.50
11
311B0600
ref: 11
G31MA
NUT,6MM
€ 0.50
12
3500404054
ref: 12
G31MA
FRONT FENDER,LIME GREEN
€ 182.50
13
35012006
ref: 13
G31MA
FRONT FENDER BRACKET
€ 12.00
14
35013002
ref: 14
G31MA
FRONT FENDER STAY
€ 9.50
15
220B0610
ref: 15
G31MA
SCREW-PAN HEAD,6X10
€ 2.00
16
411B0600
ref: 16
G31MA
WASHER-PLAIN,6MM
€ 0.50
17
220B0612
ref: 17
G31MA
SCREW-PAN HEAD,6X12
€ 1.00
18
112G0625
ref: 18
G31MA
BOLT-UPSET,6X25
€ 4.00
19
3502204254
ref: 19
G31MA
REAR FENDER,LIME GREEN
€ 197.00
20
35025013
ref: 20
G31MA
REAR FENDER BRACKET,A
€ 12.00
21
35025014
ref: 21
G31MA
REAR FENDER BRACKET,B
€ 20.00
22
35026002
ref: 22
G31MA
BRACKET
€ 6.50
23
112G0612
ref: 23
G31MA
BOLT-UPSET
€ 2.50
