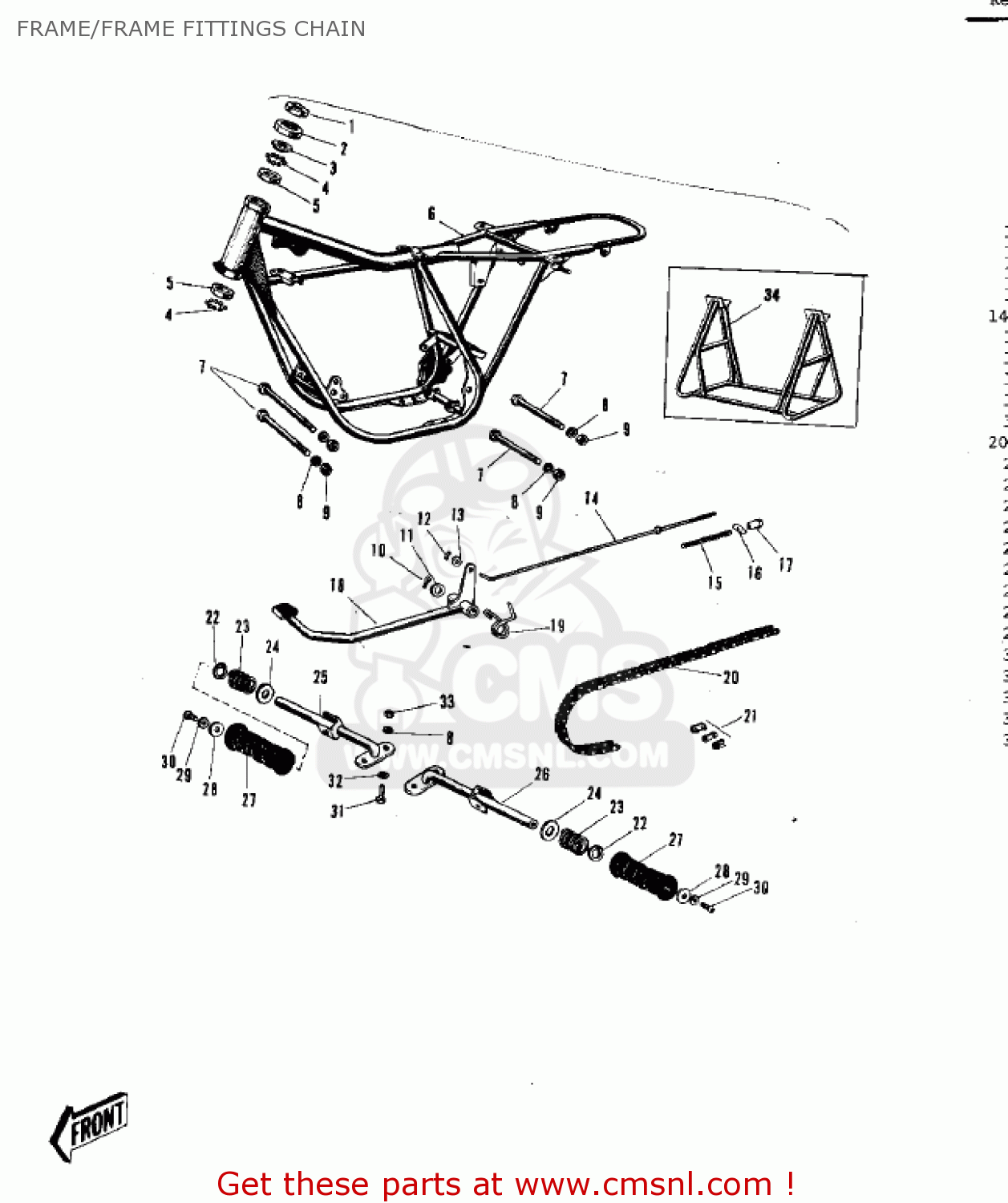

FRAME/FRAME FITTINGS CHAIN

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098004
ref: 2

CAP-STEERING STEM

€ 4.00

3

92047005
ref: 3

CONE-UPPER BEARING

€ 10.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048004
ref: 5

RACE-BEARING

€ 10.00

6

32002030
ref: 6

FRAME

€ 760.50

7

920011603
ref: 7

BOLT,FLANGED,10X115

€ 7.00

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

550D3030
ref: 10

PIN-COTTER,3.0X30

€ 1.50

11

92022085
ref: 11

WASHER,15.3X24X1.2

€ 2.50

12

550D2015
ref: 12

PIN-COTTER,2.0X15

€ 1.00

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

430105003
ref: 14
Includes items 14 -

BRAKE ROD ASSY

€ 15.00

15

43012001
ref: 15

SPRING,BRAKE ROD

€ 3.00

16

92043039
ref: 16

PIN,BRAKE ROD

€ 4.50

17

92015042
ref: 17

NUT-BRAKE ROD ADJUST

€ 4.00

18

43001045
ref: 18

BRAKE PEDAL

€ 56.50

19

43005007
ref: 19

SPRING-BRAKE PEDAL

€ 4.50

?

695Z43118
ref: ?
Includes items 20 an

CHAIN ASSEMBLY DRIVE

€ 25.50

21

920581015
ref: 21

JOINT-CHAIN,EK428SH

€ 3.50

22

480J1600
ref: 22

CIRCLIP-TYPE-C,16MM

€ 2.50

23

34006002
ref: 23

SPRING-FOOTREST PEG

€ 3.00

24

92022049
ref: 24

WASHER-FOLDING PEG

€ 2.00

25

34003019
ref: 25

FOOTREST BAR,RH

€ 27.50

26

34003018
ref: 26

FOOTREST BAR,LH

€ 35.00

27

92076006
ref: 27

DAMPER,STEP

€ 10.00

28

92022024
ref: 28

WASHER,7X16X1.2

€ 2.50

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

30

220B0620
ref: 30

SCREW-PAN HEAD,6X20

€ 2.50

31

112B1020
ref: 31

BOLT-UPSET,10X20

€ 3.00

32

410B1000
ref: 32

WASHER-PLAIN-SMALL,10

€ 0.50

33

312B1000
ref: 33

NUT,10MM

€ 0.50

34

34033008
ref: 34

PORTABLE STAND

€ 117.00

all assemblies
