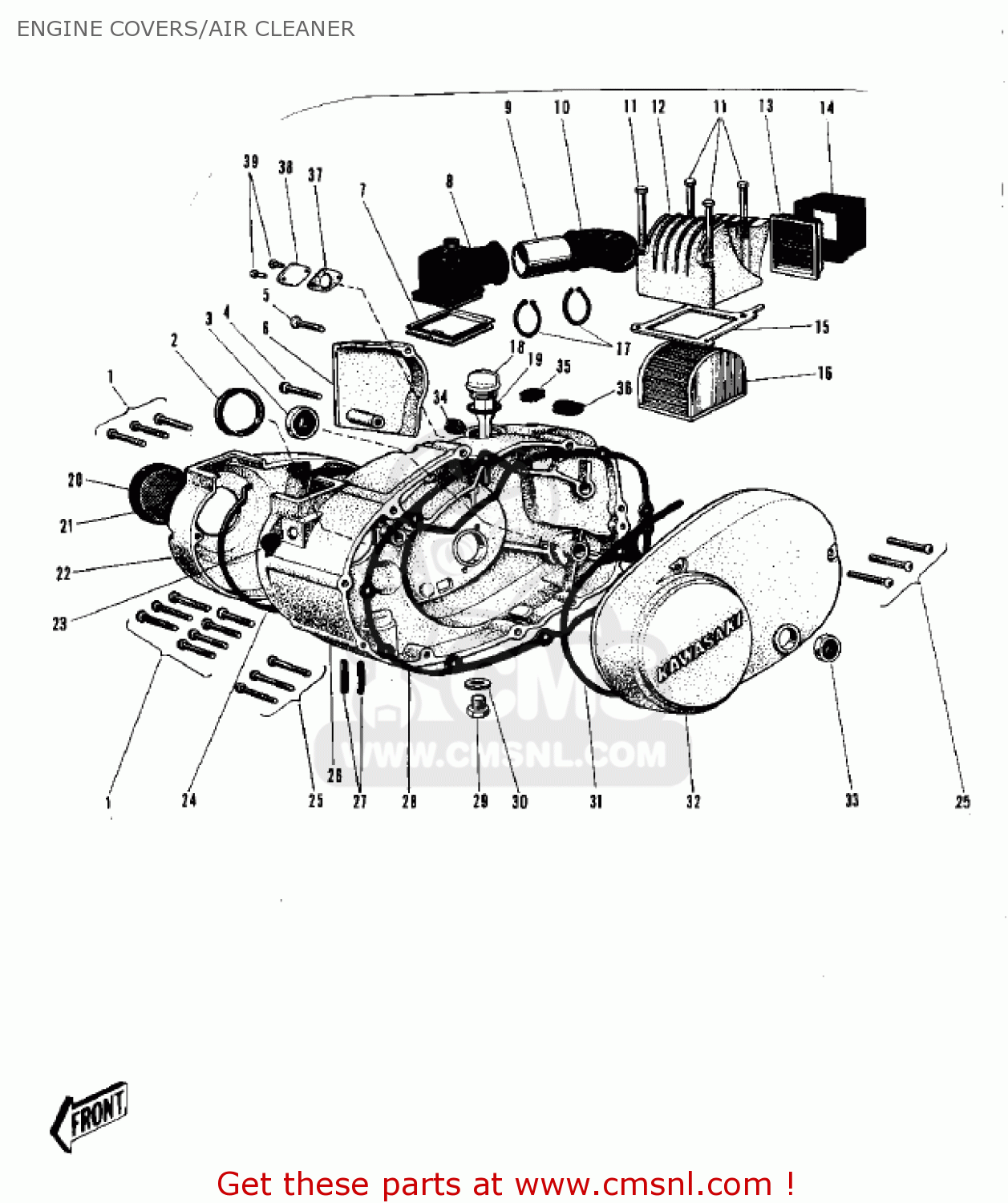

ENGINE COVERS/AIR CLEANER

ref

part #

description

quantity

1

220B0630
ref: 1

SCREW-PAN HEAD,6X30

€ 2.50

2

14038020
ref: 2

GROMMET

€ 2.00

3

653B142507
ref: 3

OIL SEAL,TB14257

€ 14.50

4

220B0635
ref: 4

SCREW-PAN HEAD,6X35

€ 1.00

5

220B0625
ref: 5

SCREW-PAN HEAD,6X25

€ 1.50

6

14030006
ref: 6

COVER-OIL PUMP

€ 15.00

7

11033002
ref: 7

INLET PIPE HOLDER

€ 4.50

8

11015018
ref: 8

INLET PIPE

€ 28.50

9

11015017
ref: 9

INLET PIPE

€ 15.50

10

11015016
ref: 10

INLET PIPE

€ 26.50

11

110B0675
ref: 11

BOLT HEX HEAD 6X75

€ 1.50

12

14042005
ref: 12

AIR CLEANER COVER

€ 39.50

13

14037003
ref: 13

AIR CLEANER SCREEN

€ 22.00

14

14073002
ref: 14

AIR DUCT

€ 30.00

15

14059001
ref: 15

AIR CLEANER CRANKCASE COVER GASKET (MCA)

€ 12.00

16

11013018
ref: 16

AIR CLEANER ELEMENT

€ 28.50

17

92081047
ref: 17

SPRING,COIL

€ 7.50

18

16115018
ref: 18

PLUG,OIL FILLER

€ 7.00

19

92055026
ref: 19

'O' RING-OIL FIL PLUG

€ 1.50

20

14060001
ref: 20

AIR FILTER CAP,RUBBER

€ 9.00

21

14063001
ref: 21

AIR FILTER

€ 23.50

22

14030016
ref: 22

CARBURETOR COVER

€ 62.50

23

14039001
ref: 23

CAP,RUBBER

€ 3.00

24

14048001
ref: 24

GASKET-CARB COVER (MCA)

€ 16.00

25

220B0645
ref: 25

SCREW-PAN HEAD,6X45

€ 2.50

26

14032044
ref: 26

COVER-CLUTCH

€ 203.50

27

14032050
ref: 27
NOT REQ'D

COVER-R.H ENGINE

€ 37.50

27

16136002
ref: 27
USE FOR

FUEL OVERFLOW GUIDE

€ 8.00

28

110601198
ref: 28

GASKET,CLUTCH COVER (NAS)

€ 17.00

29

92067001
ref: 29

PLUG-OIL DRAIN

€ 3.00

30

92065058
ref: 30

GASKET, 10,5X16X1 (NAS)

€ 2.50

31

14045007
ref: 31

ENGINE COVER GASKET,LH (MCA)

€ 8.00

32

1403107875
ref: 32

ENGINE COVER,LH,LEAFING SILVER

€ 169.50

34

16135006
ref: 34

OIL PIPE GROMMET

€ 1.50

35

16135007
ref: 35

GROMMET

€ 1.50

36

16135008
ref: 36

GROMMET

€ 1.50

37

110601160
ref: 37

GASKET,OIL PUMP (NAS)

€ 3.00

38

92084004
ref: 38

PLUG,OIL PUMP HOLE

€ 2.00

39

220B0508
ref: 39

SCREW-PAN-CROS,5X8

€ 0.50
