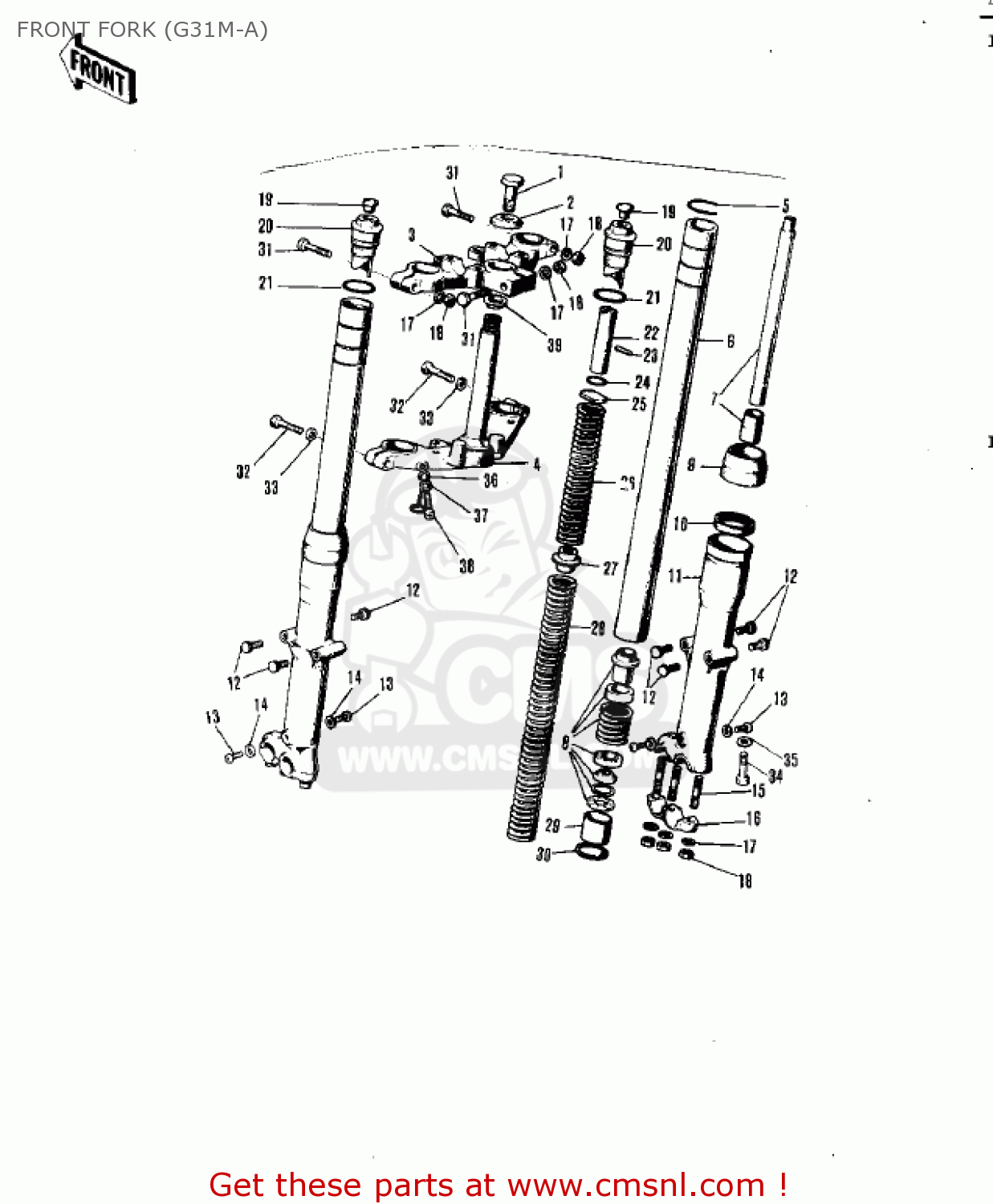

FRONT FORK (G31M-A)

ref

part #

description

quantity

?

44001064
ref: ?
Includes items 1 - 3

FRONT FORK ASSEMBLY

€ 1,181.50

1

44041007
ref: 1

BOLT-STRNG STEM HEAD

€ 11.50

2

44043016
ref: 2

WASHER,FORK UPPER HOL

€ 7.00

3

44039035
ref: 3

HEAD-STEERING STEM

€ 98.00

4

44037035
ref: 4

STEERING STEM

€ 267.00

5

44044011
ref: 5

CIRCLIP

€ 6.50

6

44013027
ref: 6

FORK INNER TUBE

€ 326.50

?

44022005
ref: ?
Includes items 7 and

FORK CYLINDER

€ 151.00

9

44010006
ref: 9

SEAL,FORK

€ 24.00

10

920491049
ref: 10

SEAL-OIL

€ 14.50

11

4400503480
ref: 11

FORK OUTER TUBE,LH,BUFF

€ 377.00

12

44062002
ref: 12

CAP

€ 1.50

13

220B0408
ref: 13

SCREW-PAN-CROS

€ 0.50

14

44045002
ref: 14

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

15

172G0860
ref: 15

STUD,8X60

€ 3.50

16

44063002
ref: 16

FRONT AXLE HOLDER

€ 51.50

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

14039001
ref: 19

CAP,RUBBER

€ 3.00

?

44041035
ref: ?
Includes items 19 -

BOLT,FORK TOP

€ 86.00

21

44046014
ref: 21

'O' RING-INNER TUBE

€ 4.00

25

44029016
ref: 25

FORK SPRING SEAT WASHER

€ 6.00

26

44026035
ref: 26
L=126 M/M

FORK SPRING,SHORT

€ 59.50

27

44028019
ref: 27

FORK SPRING,GUIDE

€ 12.50

28

44026034
ref: 28
L=346 M/M

FORK SPRING,LONG

€ 56.50

29

44018004
ref: 29

FORK PISTON

€ 19.00

30

44044010
ref: 30

CIRCLIP

€ 4.50

31

920011578
ref: 31

BOLT,FLANGED,8X40

€ 4.00

32

113B1032
ref: 32

BOLT-HEX HEAD,10X32

€ 3.50

33

461F1000
ref: 33

WASHER-SPRING,10MM

€ 0.50

34

44041027
ref: 34

BOLT-FORK CYLINDER

€ 2.50

35

44045030
ref: 35

GASKET,FORK CYLINDER

€ 2.50

36

92037016
ref: 36

CLAMP,WIRING HARNESS

€ 1.50

37

461F0600
ref: 37

WASHER-SPRING,6MM

€ 0.50

38

220B0612
ref: 38

SCREW-PAN HEAD,6X12

€ 1.00

39

92047004
ref: 39

CONE-LOWER BEARING

€ 13.00
