TRANSMISSION/CHANGE DRUM & FORKS
F12MX 1973

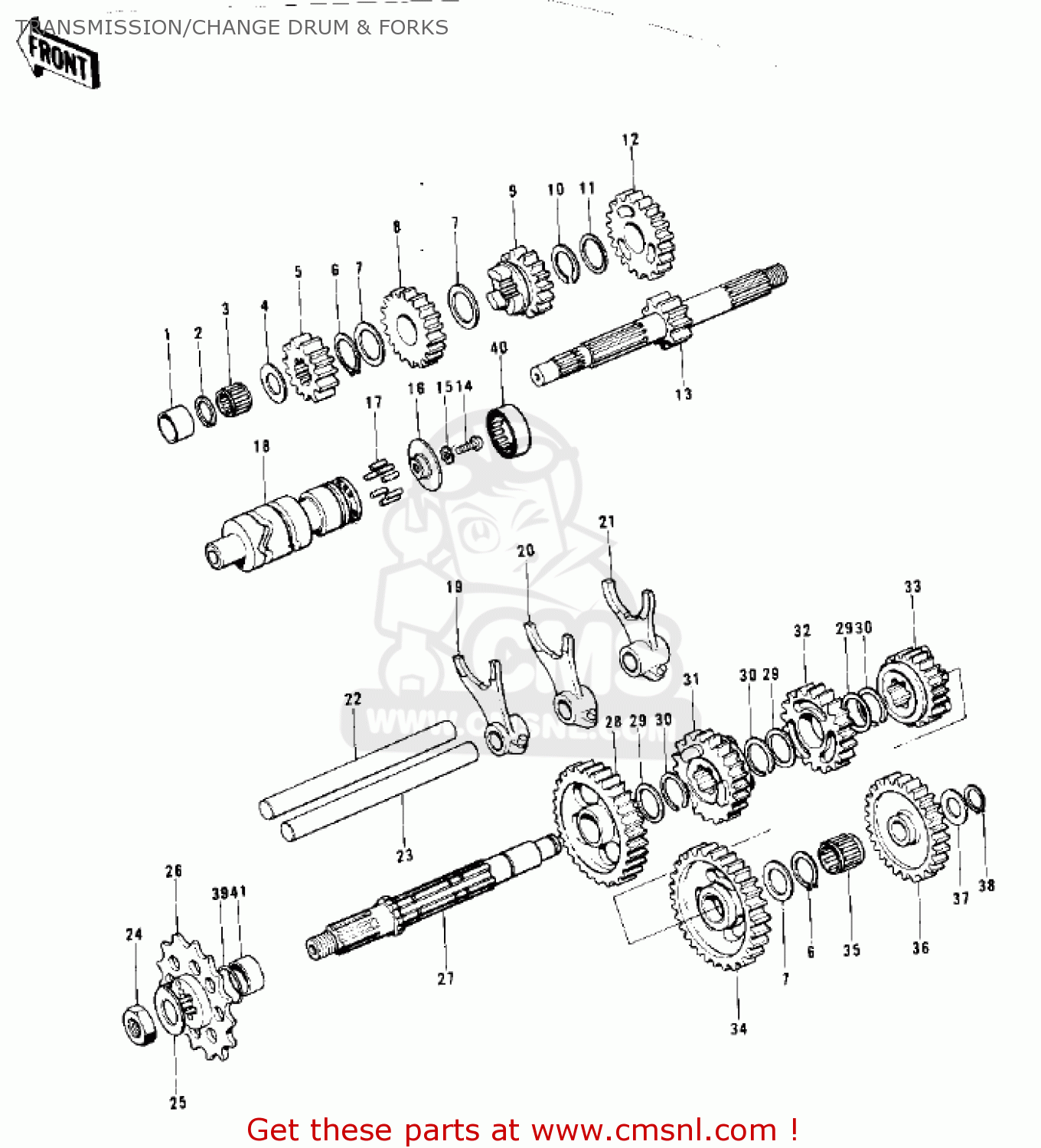

Transmission/change drum & forks diagram F12MX 1973
TRANSMISSION/CHANGE DRUM & FORKS F12MX 1973
×
prices are in EUR
ref
part #
description
quantity
1
92028132
ref: 1
O.D.=30
BUSHING
€ 28.00
2
92033009
ref: 2
CIRCLIP,17MM
€ 2.00
3
92046035
ref: 3
KT172313
BEARING,BALL,KT172313
€ 12.00
4
92022255
ref: 4
I.D.=17.3
WASHER
€ 5.50
5
13130035
ref: 5
12T
2ND GEAR,DRIVE SHAFT
€ 27.50
6
480J1900
ref: 6
CIRCLIP-TYPE-C,19MM
€ 1.00
7
92022252
ref: 7
I.D.=20.5
WASHER
€ 4.00
8
13134019
ref: 8
17T
4TH GEAR,DRIVE SHAFT
€ 48.00
9
13132034
ref: 9
15T
3RD GEAR,DRIVE SHAFT
€ 72.50
10
92033027
ref: 10
I.D.=20.8
CIRCLIP
€ 3.00
11
92022254
ref: 11
I.D.=23.5
WASHER
€ 1.50
12
13136045
ref: 12
18T
TOP GEAR,DRIVE SHAFT
€ 63.00
13
13127044
ref: 13
9T
SHAFT,DRIVE
€ 55.50
14
220B0614
ref: 14
SCREW-PAN HEAD,6X14
€ 2.00
15
464H0600
ref: 15
WASHER-LOCK,6MM
€ 0.50
16
13142014
ref: 16
HOLDER,CHANGE DRUM PI
€ 14.00
17
92042029
ref: 17
PIN,GEAR CHANGE DRUM
€ 3.50
18
13141042
ref: 18
GEAR CHANGE DRUM
€ 228.00
19
13140055
ref: 19
FORK,SELECTOR
€ 59.50
20
13140056
ref: 20
FORK,SELECTOR
€ 57.50
21
13140057
ref: 21
FORK,SELECTOR
€ 61.50
22
13209012
ref: 22
L=90M/M
ROD,SHIFT
€ 10.00
23
13209013
ref: 23
L=99M/M
ROD,SHIFT
€ 7.50
24
92015019
ref: 24
NUT,18MM
€ 4.00
25
92024067
ref: 25
WASHER,LOCK
€ 2.00
26
13144050
ref: 26
S.T.D.
ENGINE SPROCKET,15T
€ 30.50
26
13144051
ref: 26
OPTION
ENGINE SPROCKET,14T
€ 25.00
27
13128039
ref: 27
SHAFT,OUTPUT
€ 106.50
28
13131042
ref: 28
24T
2ND GEAR,OUTPUT SHAF
€ 71.00
29
92022253
ref: 29
I.D.=24.8
WASHER
€ 2.50
30
92033026
ref: 30
I.D.=22.5
CIRCLIP
€ 6.00
31
13135023
ref: 31
17T
4TH GEAR,OUTPUT SHAF
€ 77.00
32
13133034
ref: 32
21T
3RD GEAR,OUTPUT SHAF
€ 55.00
33
13137028
ref: 33
17T
TOP GEAR,OUTPUT SHAF
€ 69.00
34
13129049
ref: 34
26T
LOW GEAR,OUTPUT SHAF
€ 59.50
35
920461170
ref: 35
KT202614
BEARING-NEEDLE,KT2026
€ 9.00
36
13073010
ref: 36
26T
IDLE GEAR,KICKSTARTE
€ 63.00
37
92022197
ref: 37
L.D.=17.3
WASHER-THRUST
€ 1.00
38
480J1600
ref: 38
CIRCLIP-TYPE-C,16MM
€ 2.50
39
92055035
ref: 39
O RING
€ 3.00
40
92046040
ref: 40
BEARING-NEEDLE,#34401
€ 22.00
41
92027163
ref: 41
COLLAR,25X30X10.1
€ 13.00
