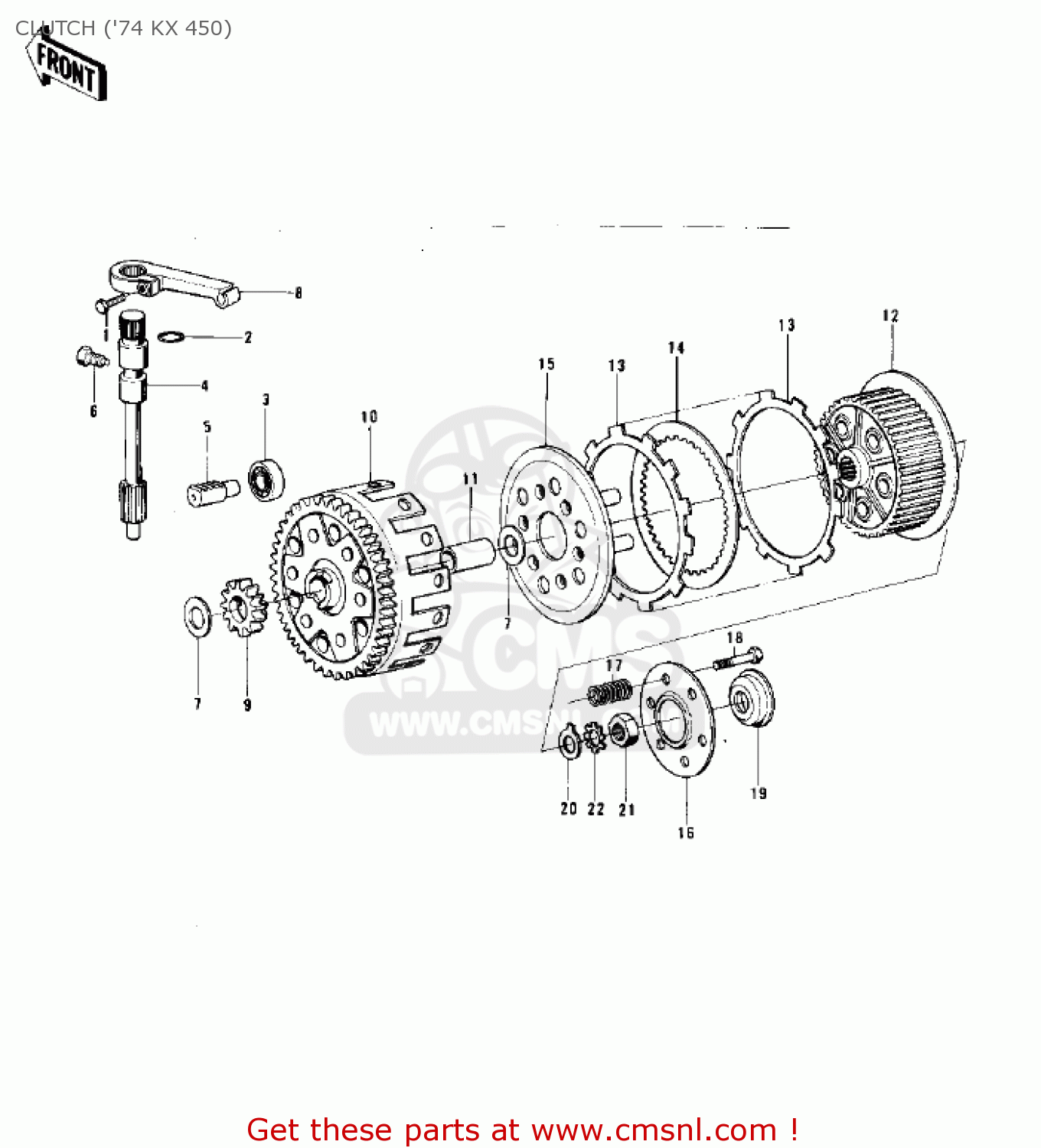

CLUTCH ('74 KX 450)

ref

part #

description

quantity

1

112G0618
ref: 1

BOLT-UPSET

€ 0.50

1

112G0618
ref: 1

BOLT-UPSET

€ 0.50

2

670B2010
ref: 2

O RING,10MM

€ 1.00

3

92045026
ref: 3

BEARING,BALL,#627

€ 19.50

4

13106006
ref: 4

SHAFT,

€ 24.50

5

13116025
ref: 5

ROD,CLUTCH PUSH

€ 19.50

6

92003130
ref: 6

BOLT,CLUTCH RELEASE

€ 3.50

7

92022168
ref: 7

WASHER-CLUTCH THRUST

€ 6.50

8

13103022
ref: 8

LEVER,CLUTCH RELEASE

€ 13.00

9

13075009
ref: 9
15T

PINION,KICKSTARTER

€ 22.50

10

13095038
ref: 10

HOUSHING,CLUTCH

€ 149.00

11

92028105
ref: 11

BUSHING

€ 14.00

12

13087035
ref: 12

HUB,CLUTCH

€ 56.50

13

13088038
ref: 13

PLATE,CLUTCH FRICTION (MCA)

€ 14.00

14

13089024
ref: 14

PLATE,CLUTCH STEEL

€ 5.50

15

13086014
ref: 15

WHEEL,CLUTCH

€ 21.00

16

13091012
ref: 16

HOLDER,CLUTCH SPRING

€ 4.00

17

92081042
ref: 17

SPRING-CLUTCH

€ 4.50

18

112G0618
ref: 18

BOLT-UPSET

€ 0.50

18

112G0618
ref: 18

BOLT-UPSET

€ 0.50

19

13114008
ref: 19

PUSHER,CLUTCH

€ 25.00

20

92024052
ref: 20

WASHER,CLAW,14.3X32X1

€ 3.50

21

92015064
ref: 21

NUT

€ 2.50

22

464H1400
ref: 22

WASHER,LOCK,14MM

€ 1.00
