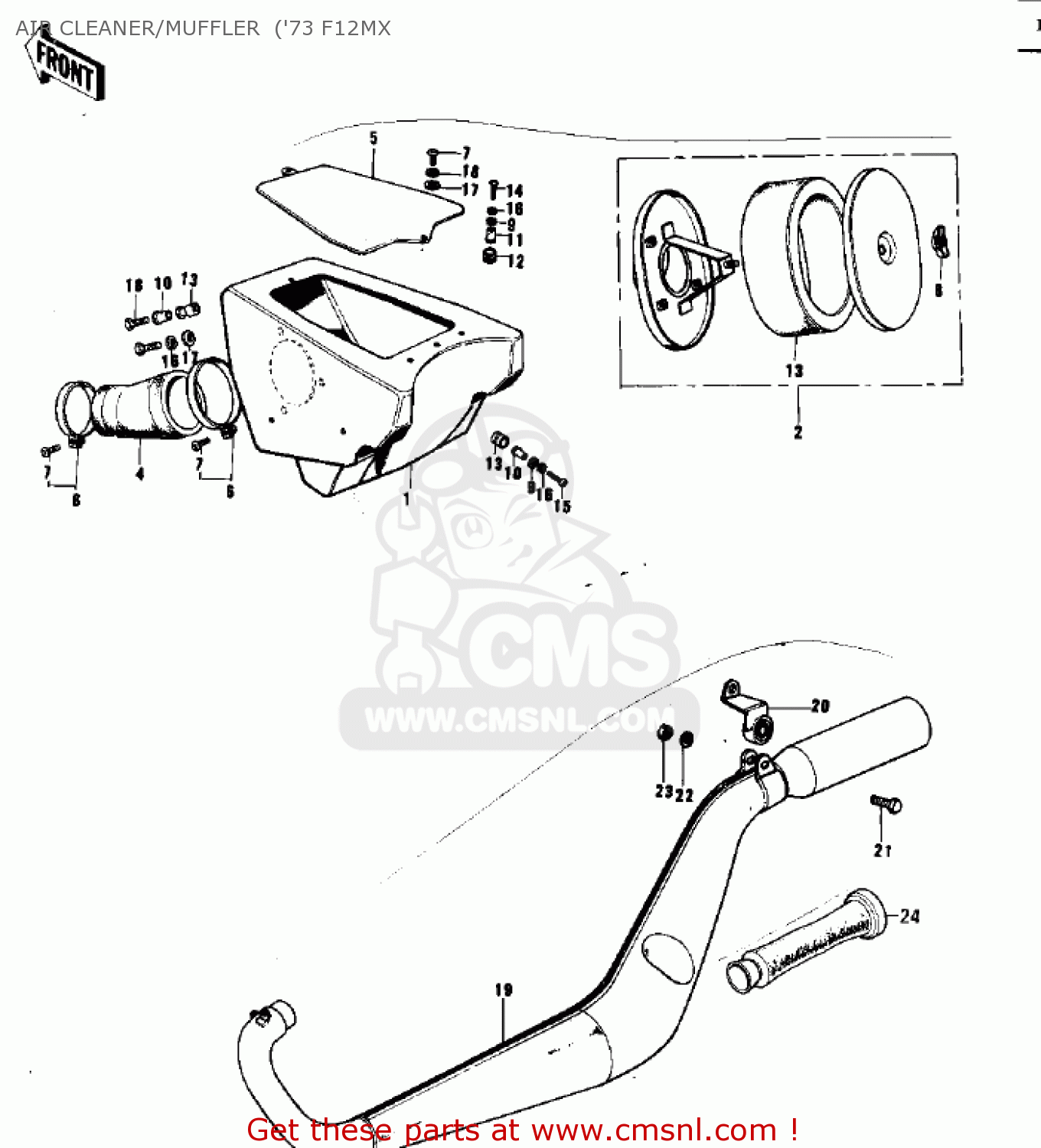

AIR CLEANER/MUFFLER ('73 F12MX

ref

part #

description

quantity

1

11011030
ref: 1

BODY,AIR CLEANER

€ 75.50

2

11010070
ref: 2

AIR CLEANER ASSY

€ 96.00

3

11013041
ref: 3

ELEMENT,AIR CLEANER

€ 35.50

4

11026008
ref: 4

CONNECTOR,AIR CLEANER

€ 5.50

5

11012038
ref: 5

CAP,AIR CLEANER

€ 2.50

6

92037115
ref: 6

CLAMP

€ 4.00

7

220B0630
ref: 7

SCREW-PAN HEAD,6X30

€ 2.50

8

92015030
ref: 8

NUT-WING,6MM

€ 1.50

9

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

10

92027194
ref: 10
L=10 M/M

COLLAR

€ 3.50

11

92027195
ref: 11
L=20 M/M

COLLAR

€ 4.00

12

92075207
ref: 12
L=20 M/M

DAMPER RUBBER

€ 0.50

13

92075208
ref: 13
L=10 M/M

DAMPER

€ 3.00

14

220B0625
ref: 14

SCREW-PAN HEAD,6X25

€ 1.50

15

220B0635
ref: 15

SCREW-PAN HEAD,6X35

€ 1.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

411B0600
ref: 17

WASHER-PLAIN,6MM

€ 0.50

18

220B0612
ref: 18

SCREW-PAN HEAD,6X12

€ 1.00

19

18002101
ref: 19

MUFFLER ASSY

€ 123.00

20

18024021
ref: 20

BRACKET,MUFFLER

€ 13.50

21

920011577
ref: 21

BOLT,FLANGED,8X35

€ 2.50

22

410B0800
ref: 22

WASHER-PLAIN-SMALL,8M

€ 0.50

23

311B0800
ref: 23

NUT,8MM

€ 0.50

24

18033074
ref: 24

BAFFLE TUBE

€ 55.50

AIR CLEANER/MUFFLER ('73 F12MX

all assemblies
