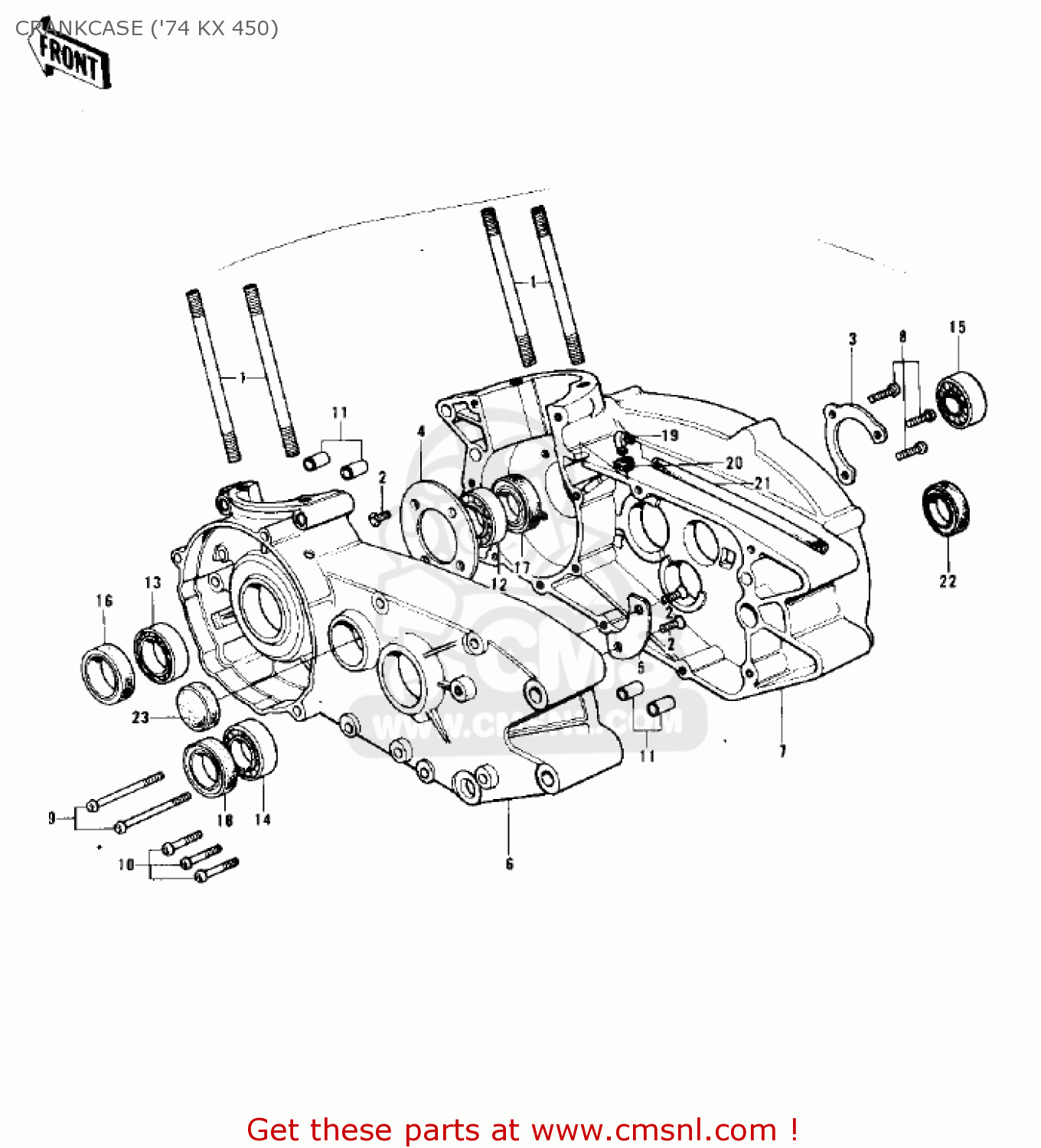

CRANKCASE ('74 KX 450)

ref

part #

description

quantity

1

172G1090
ref: 1

STUD,10X90

€ 7.50

2

221B0614
ref: 2

SCREW-CNTSNK HD,6X14

€ 2.50

3

14014025
ref: 3

PLATE,CRANK BEARING

€ 1.00

4

14014026
ref: 4

PLATE,CRANK BEARING

€ 2.50

5

14014027
ref: 5

PLATE,CRANK BEARING

€ 1.50

6

14002094
ref: 6
FLAT BLACK

CRANKCASE,L.H

€ 240.50

7

14003067
ref: 7
FLAT BACK

CRANKCASE,R.H

€ 267.50

8

220B0614
ref: 8

SCREW-PAN HEAD,6X14

€ 2.00

9

220B0650
ref: 9

SCREW-PAN HEAD,6X50

€ 2.00

10

220B0670
ref: 10

SCREW-PAN HEAD,6X70

€ 2.50

11

920431037
ref: 11

PIN,DOWEL,10X8.2X14

€ 0.50

12

92045016
ref: 12

BEARING-BALL,#SC0626C

€ 36.00

13

92045037
ref: 13

BEARING-BALL,#6306

€ 40.00

14

601B6205
ref: 14

BEARING-BALL,#6205C3

€ 14.00

15

601B6304
ref: 15

BEARING-BALL,#6304C3

€ 31.00

16

92050057
ref: 16

OIL SEAL,L.H CRNKCASE

€ 14.50

17

653B355008
ref: 17

OIL SEAL,TB35508

€ 6.00

18

92050033
ref: 18

SEAL-OIL,TB3040

€ 14.00

19

140691001
ref: 19

BREATHER

€ 17.50

20

92071042
ref: 20

GROMMET

€ 2.50

21

92059061
ref: 21

PIPE-BREATHER

€ 3.00

22

92028131
ref: 22
O.D=35M/M

BUSHING

€ 28.00

23

92073024
ref: 23

CAP,L.H CRANKCASE

€ 1.50
