FRONT FORK ('74 KX 450)
F12MX 1973

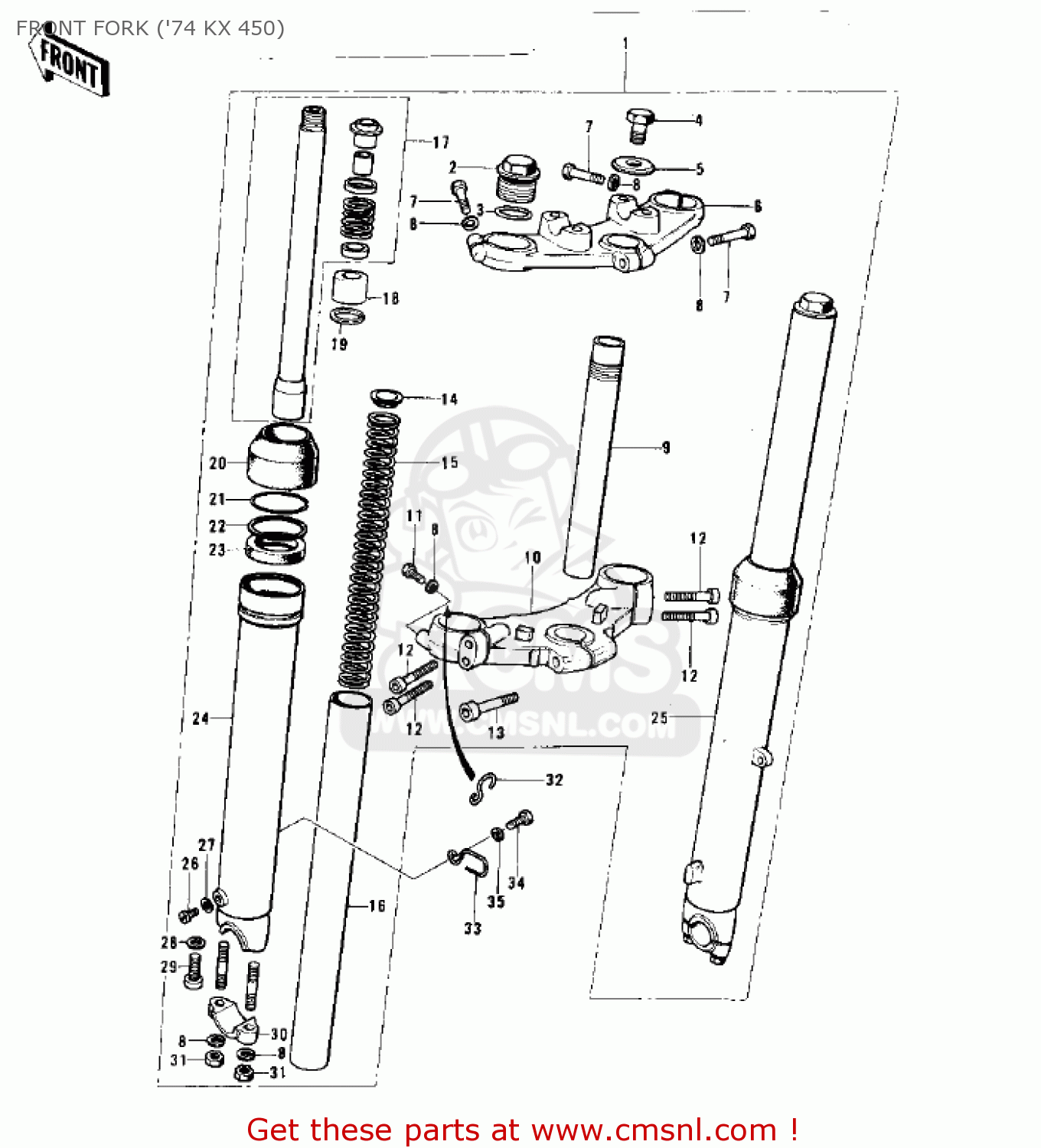

Front fork ('74 kx 450) diagram F12MX 1973
FRONT FORK ('74 KX 450) F12MX 1973
×
prices are in EUR
ref
part #
description
quantity
1
44001138
ref: 1
FRONT FORK
€ 2,490.50
2
44041037
ref: 2
BOLT-FORK FITTING
€ 30.50
3
920551012
ref: 3
RING-O,FORK TOP
€ 5.00
4
44041065
ref: 4
BOLT,FORK TOP
€ 18.50
5
44043055
ref: 5
WASHER,FORK TOP BOLT
€ 3.50
6
44039059
ref: 6
HEAD,STEERING STEM
€ 56.50
7
44041045
ref: 7
BOLT-HEX HEAD,8MM
€ 15.00
8
461F0800
ref: 8
WASHER-SPRING,8MM
€ 0.50
9
44052009
ref: 9
STEERING STEM SHAFT
€ 272.00
10
44038007
ref: 10
STEM,STEERING
€ 104.00
11
44041076
ref: 11
BOLT,HEX HEAD,8MM
€ 8.00
12
44041061
ref: 12
BOLT,HEX HEAD
€ 4.00
13
44041043
ref: 13
BOLT-STEERING STEM
€ 6.50
14
44028032
ref: 14
FORK SPRING,GUIDE
€ 12.00
15
44026056
ref: 15
FORK SPRING
€ 69.50
16
44013048
ref: 16
FORK INNER TUBE
€ 317.00
17
44022022
ref: 17
FORK CYLINDER
€ 187.00
18
44018009
ref: 18
PISTON,FORK
€ 17.00
19
44044019
ref: 19
CIRCLIP,FORK PISTON
€ 4.50
20
44010019
ref: 20
DUST SHIELD-FORK
€ 8.50
21
44044005
ref: 21
CIRCLIP-OIL SEAL FIT
€ 6.50
22
44043023
ref: 22
WASHER-OIL SEAL FIT
€ 2.00
23
44009020
ref: 23
OIL SEAL,FORK
€ 38.00
24
44005056
ref: 24
FORK OUTER TUBE,LH
€ 330.00
25
44006054
ref: 25
FORK OUTER TUBE,RH
€ 387.00
26
44041062
ref: 26
SCREW,FORK DRAIN
€ 2.00
27
44045045
ref: 27
GASKET,FORK DRAIN (NAS)
€ 1.00
28
44045057
ref: 28
GASKET (NAS)
€ 3.00
29
44041040
ref: 29
BOLT-FORK CYLINDER
€ 4.50
30
44063008
ref: 30
HOLDER,FRONT AXLE
€ 18.00
31
311B0800
ref: 31
NUT,8MM
€ 0.50
32
92037126
ref: 32
CLAMP,CABLE
€ 2.00
33
92037127
ref: 33
CLAMP,CABLE
€ 1.50
34
112G0612
ref: 34
BOLT-UPSET
€ 2.50
35
461F0600
ref: 35
WASHER-SPRING,6MM
€ 0.50
