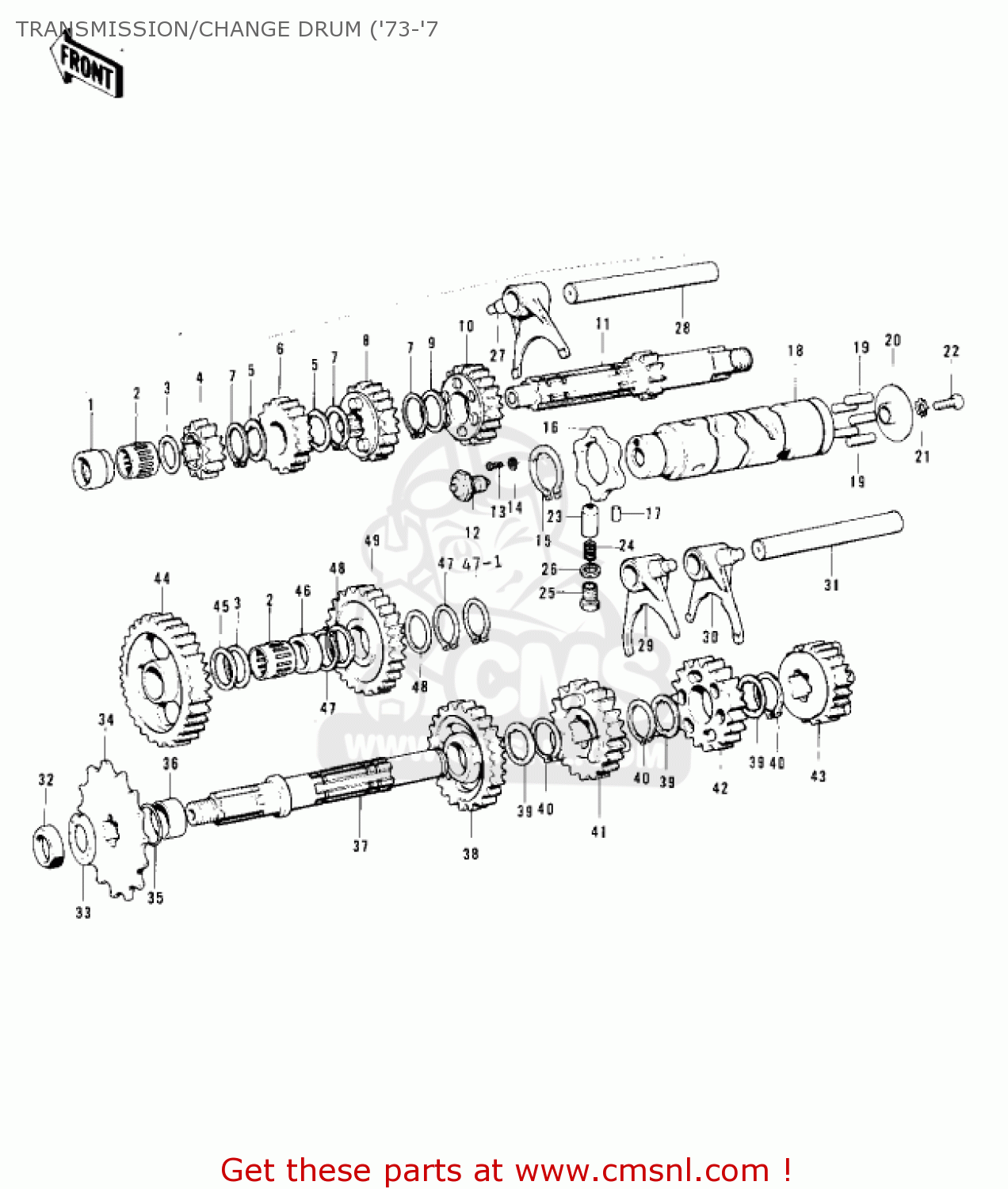

TRANSMISSION/CHANGE DRUM ('73-'7

ref

part #

description

quantity

1

92028109
ref: 1

BUSHING

€ 18.50

2

920461184
ref: 2

BEARING-NEEDLE

€ 20.00

3

92022075
ref: 3
O.D=28

WASHER,17MM

€ 4.50

4

13130029
ref: 4
F11

GEAR,DRIVESHAFT,2ND

€ 67.50

4

13130031
ref: 4
F11A/B

2ND GEAR-DRIVE SHAFT

€ 24.50

5

92024039
ref: 5
O.D=27

WASHER-LOCK

€ 4.00

6

13136039
ref: 6
24T

TOP GEAR-DRIVE SHAFT

€ 33.50

7

92033025
ref: 7

CIRCLIP,25MM

€ 3.00

8

13132031
ref: 8
20T

3RD GEAR-DRIVE SHAFT

€ 33.00

9

92022198
ref: 9

WASHER-PLAIN

€ 3.50

10

13134014
ref: 10
22T

4TH GEAR-DRIVE SHAFT

€ 35.50

11

13127037
ref: 11
F11

DRIVESHAFT

€ 216.50

11

13127040
ref: 11
F11A/B

SHAFT-DRIVE

€ 88.00

12

13151018
ref: 12

SWITCH-COMP,NEUTRAL

€ 25.50

13

92009006
ref: 13

SCREW,PAN HEAD,4X6

€ 1.00

13

211B0406A
ref: 13

SCREW-PAN HEAD,4X6

€ 1.50

14

461F0400
ref: 14

WASHER-SPRING,4MM

€ 0.50

15

480J3000
ref: 15

CIRCLIP-TYPE-C,30MM

€ 3.50

16

131451058
ref: 16

CAM-CHANGE DRUM

€ 15.00

17

610A0406
ref: 17

ROLLER,4X6

€ 2.50

?

13239012
ref: ?
Includes items 18 -

DRUM ASSY-GEAR CHANGE

€ 88.00

19

92042014
ref: 19

PIN-GEAR CHANGE DRUM

€ 0.50

20

13142008
ref: 20

PLATE-CHANGE DRUM PIN

€ 4.00

21

464H0600
ref: 21

WASHER-LOCK,6MM

€ 0.50

22

220B0612
ref: 22

SCREW-PAN HEAD,6X12

€ 1.00

23

92043076
ref: 23

PIN-NEUTRAL PISTON

€ 8.00

24

92081112
ref: 24

SPRING

€ 4.00

25

92001106
ref: 25

BOLT

€ 2.00

25

92001131
ref: 25
F11B

BOLT,10MM

€ 14.00

26

92065090
ref: 26

GASKET (NAS)

€ 2.00

26

92065090
ref: 26
F11B

GASKET (NAS)

€ 2.00

27

13140044
ref: 27

FORK-SELECTOR,4TH&TOP

€ 43.50

28

13209008
ref: 28
L=64.5 M/M

ROD-SHIFT,SHORT

€ 3.00

29

13140043
ref: 29

FORK-SELECTOR,2ND&3RD

€ 44.50

30

13140042
ref: 30

FORK-SELECTOR,LOW

€ 43.50

31

13209007
ref: 31
L=94. M/M

ROD-SHIFT,LONG

€ 4.00

32

92015019
ref: 32

NUT,18MM

€ 4.00

33

92024067
ref: 33

WASHER,LOCK

€ 2.00

34

13144043
ref: 34
STD

ENGINE SPROCKET,13T

€ 30.50

34

13144017
ref: 34
OPTION

SPROCKET-OUTPUT,14T

€ 35.50

34

13144025
ref: 34
OPTION

ENGINE SPROCKET,15T

€ 23.00

35

92055035
ref: 35

O RING

€ 3.00

36

92027163
ref: 36

COLLAR,25X30X10.1

€ 13.00

37

13128033
ref: 37

SHAFT-OUTPUT

€ 35.50

38

13131035
ref: 38
F11

GEAR,OUTPUT SHAFT,2ND

€ 136.00

38

13131037
ref: 38
F11A/B

2ND GEAR-OUTPUT SHAFT

€ 21.00

39

92024038
ref: 39
O.D=31

WASHER-LOCK

€ 4.00

40

92033026
ref: 40

CIRCLIP

€ 6.00

41

13137023
ref: 41
18T

TOP GEAR-OUTPUT SHAFT

€ 48.00

42

13133028
ref: 42
F11

GEAR,OUTPUT SHAFT,3RD

€ 84.00

42

13133030
ref: 42
F11A/B

3RD GEAR-OUTPUT SHAFT

€ 35.00

43

13135018
ref: 43
20T

4TH GEAR-OUTPUT SHAFT

€ 49.50

44

13129041
ref: 44
F11

LOW GEAR,OUTPUT SHAFT

€ 117.00

44

13129044
ref: 44
F11A/B

LOW GEAR-OUTPUT SHAFT

€ 48.50

45

92026021
ref: 45
PHOSPOHOR-BRONZE

WASHER-THRUST

€ 9.00

46

92028110
ref: 46

BUSHING

€ 7.00

47

480J1600
ref: 47
(1 REQ FOR F11B)

CIRCLIP-TYPE-C,16MM

€ 2.50

47-1

480J1600
ref: 47-1
F11B

CIRCLIP-TYPE-C,16MM

€ 2.50

48

92022197
ref: 48
O.D=24

WASHER-THRUST

€ 1.00

49

13073008
ref: 49
30T

IDLE GEAR-KICKSTARTER

€ 31.50
