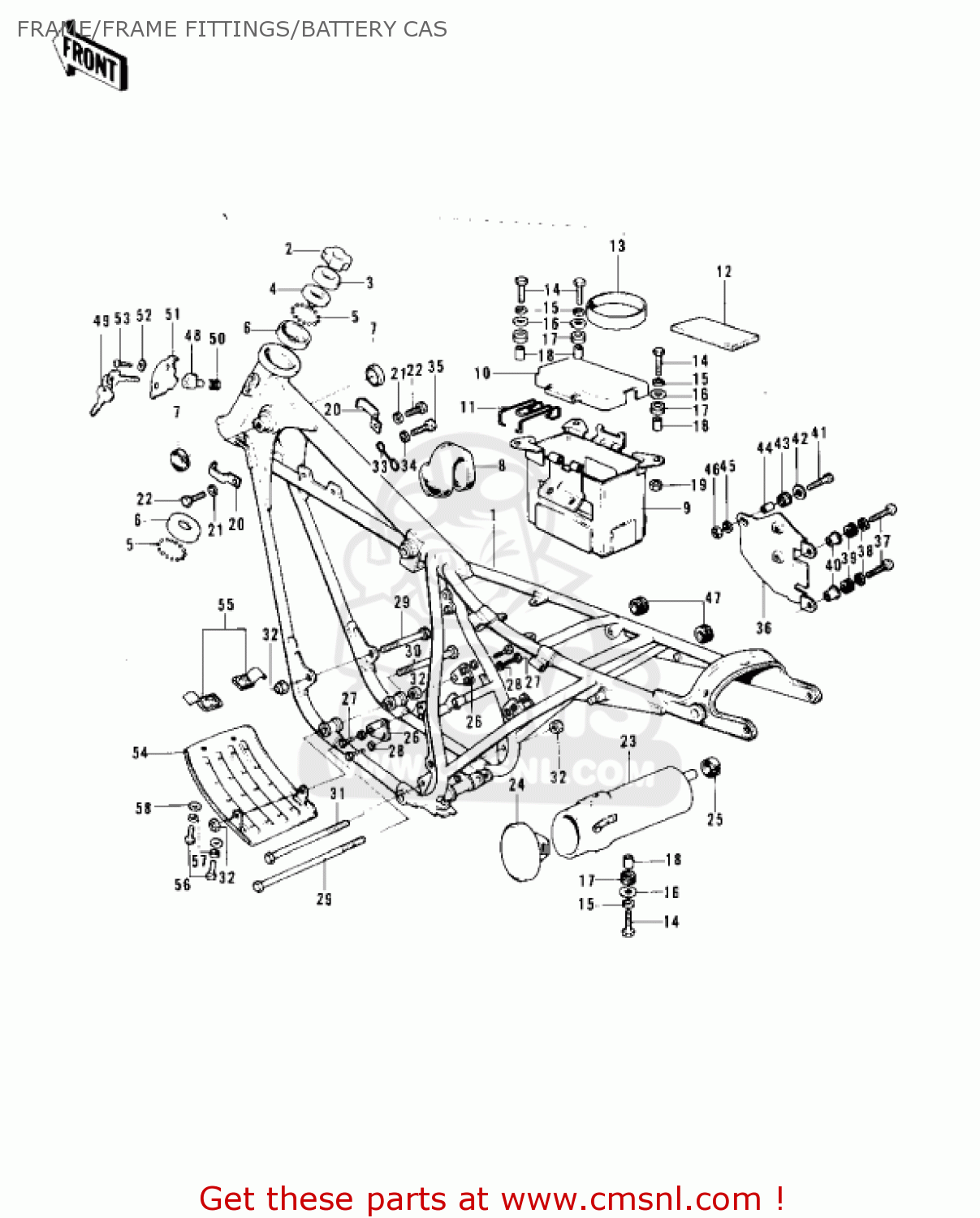

FRAME/FRAME FITTINGS/BATTERY CAS

ref

part #

description

quantity

1

32002051
ref: 1
F11

FRAME

€ 480.00

1

32002076
ref: 1
F11A/B

FRAME

€ 1,374.50

2

92090006
ref: 2

NUT-STEERING STEM LCK

€ 10.50

3

46098011
ref: 3

CAP-STEERING STEM

€ 5.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

92048005
ref: 6

RACE-STEERING BEARING

€ 11.50

7

92075101
ref: 7
FRONT

DAMPER RUBBER-FL TANK

€ 4.00

8

92075102
ref: 8
REAR

DAMPER RUBBER

€ 7.00

9

32097020
ref: 9

CASE-BATTERY

€ 18.00

10

32130001
ref: 10

COVER-BATTERY

€ 2.00

11

92079003
ref: 11

FASTENER-BATTERY CASE

€ 3.50

12

32103022
ref: 12

MAT-BATTERY

€ 1.00

13

32103023
ref: 13

DAMPER,BATTERY BOTTOM

€ 2.50

14

112B0622
ref: 14

BOLT, 6X22

€ 2.50

14

112B0622
ref: 14

BOLT, 6X22

€ 2.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

17

92075076
ref: 17

DAMPER

€ 3.00

18

92027129
ref: 18

COLLAR,6.8X10X8.5

€ 3.00

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

92037086
ref: 20

CLAMP-WIRE HARNESS

€ 4.00

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

112B0614
ref: 22

BOLT-UPSET 6X14

€ 2.50

22

112B0614
ref: 22

BOLT-UPSET 6X14

€ 2.50

23

32098017
ref: 23

CASE-TOOL

€ 12.50

24

3210400421
ref: 24
FLAT BLACK

COVER-TOOL CASE,BLACK

€ 7.50

25

92075107
ref: 25

DAMPER

€ 2.00

26

32030024
ref: 26

PLATE-ENGINE MOUNT

€ 2.50

27

115G0820
ref: 27

BOLT,8X20

€ 2.00

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

113B10136
ref: 29

BOLT-HEX HEAD,10X136

€ 4.00

30

113B10223
ref: 30

BOLT-HEX HEAD,10X223

€ 11.50

31

920011246
ref: 31

BOLT,HEX HEAD,10X117

€ 7.00

32

920151429
ref: 32

NUT,10MM

€ 4.50

33

92037053
ref: 33

CLAMP

€ 1.50

34

411B0600
ref: 34

WASHER-PLAIN,6MM

€ 0.50

35

112G0612
ref: 35

BOLT-UPSET

€ 2.50

35

112G0612
ref: 35

BOLT-UPSET

€ 2.50

36

26017001
ref: 36

BRACKET-TERMINAL

€ 12.50

37

220B0514
ref: 37

ACREW-PAN HEAD,5X14

€ 2.50

38

461F0500
ref: 38

WASHER-SPRING,5MM

€ 0.50

39

92075147
ref: 39
I.D=7

DAMPER

€ 2.50

40

92027166
ref: 40

COLLAR

€ 1.00

41

220B0622
ref: 41

SCREW-PAN HEAD,6X22

€ 2.50

42

92022237
ref: 42

WASHER-PLAIN

€ 2.50

43

92075149
ref: 43
I.D=8.5

DAMPER

€ 6.00

44

92027165
ref: 44

COLLAR,6.5X8.5X7.5

€ 3.00

45

461F0600
ref: 45

WASHER-SPRING,6MM

€ 0.50

46

311B0600
ref: 46

NUT,6MM

€ 0.50

47

92071056
ref: 47

GROMMET

€ 2.50

?

27016028
ref: ?
Includes items 48 an

LOCK ASSY-STEERING

€ 18.00

?

27016042
ref: ?
Includes items 48 an

LOCK-ASSY,STEERING

€ 36.00

49

2701801465
ref: 49
F11

KEY SET-STRNG,#265

€ 2.50

49

2701801466
ref: 49
F11

KEY SET-STRNG,#266

€ 2.50

49

2701801466
ref: 49
F11

KEY SET-STRNG,#266

€ 2.50

49

2701801467
ref: 49
F11

KEY SET-STRNG,#267

€ 2.50

49

2701801468
ref: 49
F11

KEY SET-STRNG,#268

€ 2.50

49

2701801469
ref: 49
F11

KEY SET-STRNG,#269

€ 2.50

49

2700806321
ref: 49
F11A/B

KEY SET,#421

€ 5.50

49

2700806322
ref: 49
F11A/B

KEY SET,#422

€ 14.00

49

2700806323
ref: 49
F11A/B

KEY SET,#423

€ 14.00

49

2700806324
ref: 49
F11A/B

KEY SET,#424

€ 14.00

49

2700806325
ref: 49
F11A/B

KEY SET,#425

€ 9.00

49

2700806326
ref: 49
F11A/B

KEY SET,#426

€ 14.00

49

2700806327
ref: 49
F11A/B

KEY SET,#427

€ 14.00

49

2700806328
ref: 49
F11A/B

KEY SET,#428

€ 9.00

49

2700806329
ref: 49
F11A/B

KEY SET,#429

€ 9.00

49

2700806330
ref: 49
F11A/B

KEY SET,#430

€ 7.00

50

27032001
ref: 50

SPRING-STEERING LOCK

€ 3.50

51

110121134
ref: 51

CAP,STEERING LOCK

€ 4.50

52

92097003
ref: 52

WASHER

€ 2.50

53

92008007
ref: 53

SCREW-TAPPING

€ 2.50

54

55011015
ref: 54

GUARD-ENGINE

€ 13.00

55

55016006
ref: 55

BRACKET-ENGINE GUARD

€ 2.00

56

115G0820
ref: 56

BOLT,8X20

€ 2.00

56

115G0820
ref: 56

BOLT,8X20

€ 2.00

57

461F0800
ref: 57

WASHER-SPRING,8MM

€ 0.50

58

411B0800
ref: 58

WASHER-PLAIN,8MM

€ 0.50
