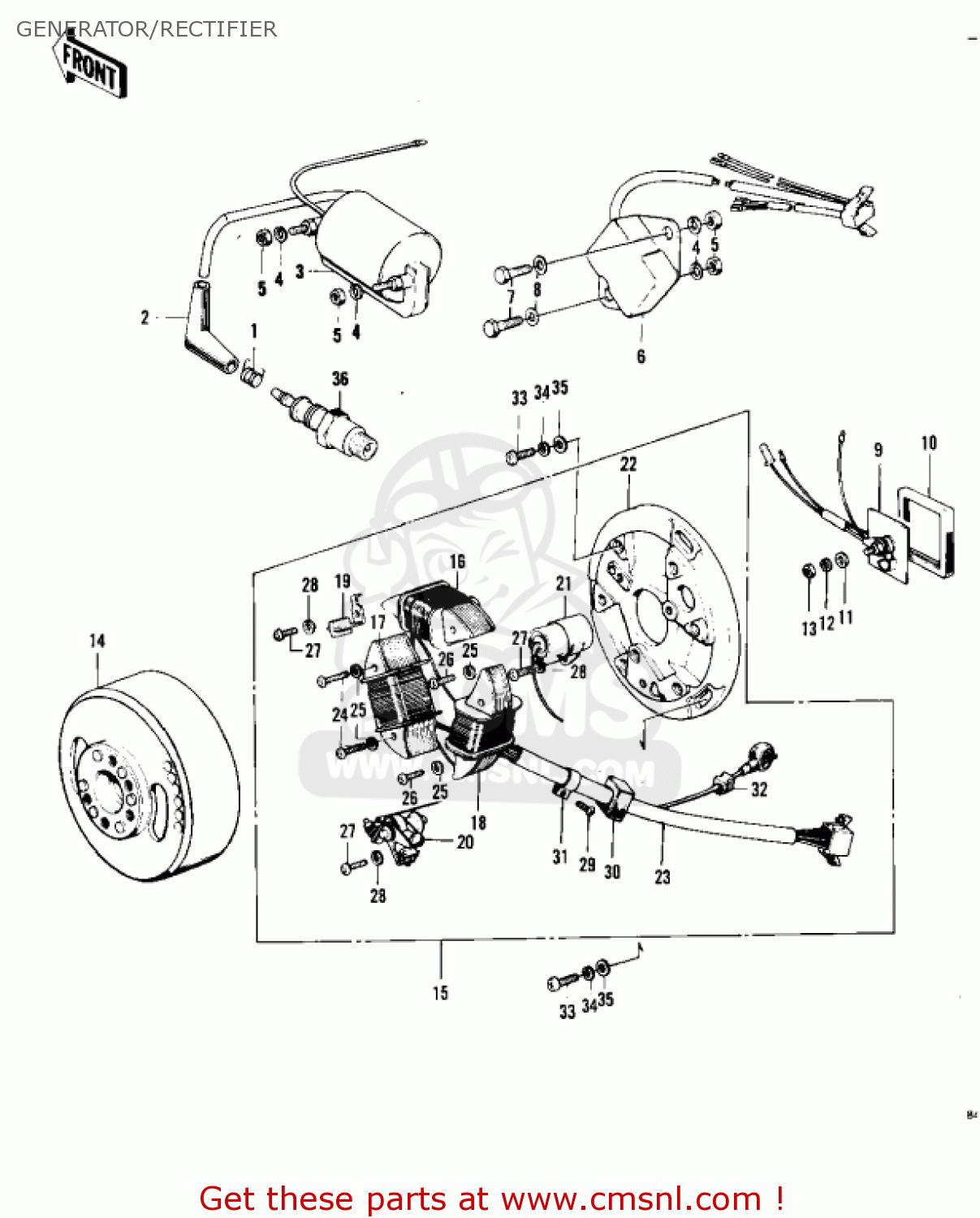

GENERATOR/RECTIFIER

ref

part #

description

quantity

1

92101001
ref: 1

SPRING-SPARK PLUG CAP

€ 1.50

2

21130009
ref: 2

CAP-SPARK PLUG

€ 15.00

3

21121042
ref: 3

COIL-IGNITION

€ 76.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

311B0600
ref: 5

NUT,6MM

€ 0.50

6

21066016
ref: 6

REGULATOR

€ 135.00

7

112G0612
ref: 7

BOLT-UPSET

€ 2.50

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

21061013
ref: 9

RECTIFIER

€ 44.00

10

32103020
ref: 10

MAT

€ 1.50

11

410B0500
ref: 11

WASHER-PLAIN-SMALL,5M

€ 0.50

12

461F0500
ref: 12

WASHER-SPRING,5MM

€ 0.50

13

311B0500
ref: 13

NUT-HEX

€ 0.50

14

21050013
ref: 14

FLYWHEEL

€ 269.50

15

21003017
ref: 15

STATOR ASSY

€ 322.50

16

21047017
ref: 16

COIL-LIGHTING,A

€ 82.00

17

21047018
ref: 17

COIL-LIGHTING B

€ 61.00

18

21049015
ref: 18

COIL-PRIMARY

€ 69.50

19

21019005
ref: 19

BRUSH,OIL

€ 3.00

20

21008020
ref: 20

BREAKER-CONTACT

€ 31.00

21

21013030
ref: 21

CONDENCER

€ 25.50

21

21013030
ref: 21
E/NO. 5000~

CONDENCER

€ 25.50

22

21048009
ref: 22

BASE-MAGNETO

€ 39.00

23

21029023
ref: 23

WIRING HARNESS-MAIN

€ 21.00

24

220B0530
ref: 24

SCREW-PAN-CROS

€ 2.00

25

461F0500
ref: 25

WASHER-SPRING,5MM

€ 0.50

26

220B0525
ref: 26

SCREW-PAN-CROS,5X25

€ 2.50

27

220B0410
ref: 27

SCREW-PAN-CROS

€ 2.00

28

461F0400
ref: 28

WASHER-SPRING,4MM

€ 0.50

29

220B0406
ref: 29

SCREW-PAN-CROS,4X6

€ 2.50

30

92071050
ref: 30

GROMMET-WIRING HARN

€ 5.50

31

21037002
ref: 31

CLAMP,WIRING HARNESS

€ 2.50

32

21017005
ref: 32

GROMMET-WIRING HARN,C

€ 2.00

33

220B0520
ref: 33

SCREW-PAN-CROS

€ 0.50

34

461F0500
ref: 34

WASHER-SPRING,5MM

€ 0.50

35

410B0500
ref: 35

WASHER-PLAIN-SMALL,5M

€ 0.50

36

B9HSA
ref: 36

SPARK PLUG,B9HS

€ 2.50

36

B9HSA
ref: 36

SPARK PLUG,B9HS

€ 2.50

all assemblies
