HANDLEBAR (F11-B)
F11B 1975 USA

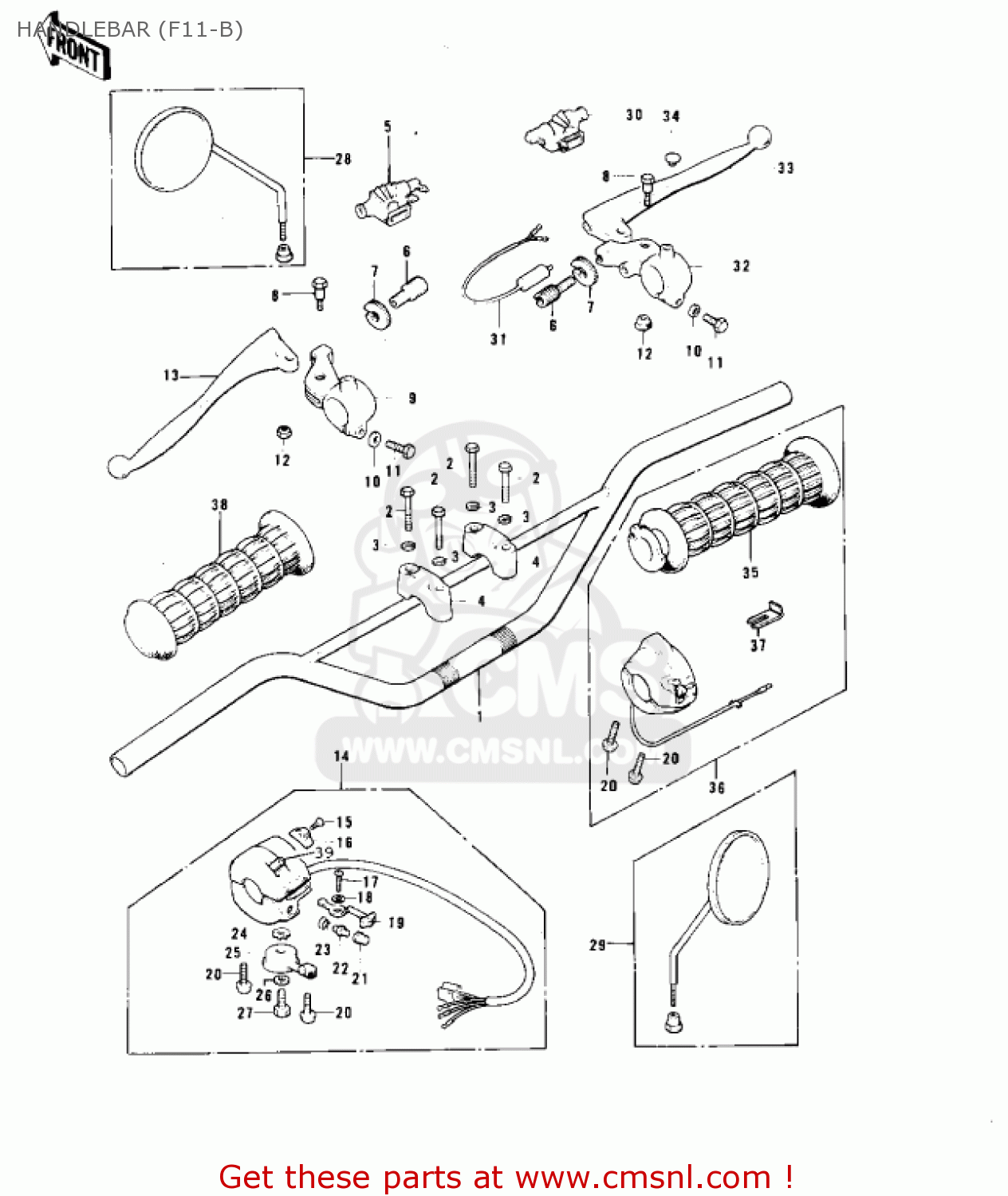

Handlebar (f11-b) diagram F11B 1975 USA
HANDLEBAR (F11-B) F11B 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
46004019
ref: 1
HANDLEBAR
€ 57.50
2
920011405
ref: 2
BOLT,8X38
€ 10.00
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
46012008
ref: 4
HOLDER-HANDLE,UPP
€ 23.00
5
490061017
ref: 5
BOOTS,LEVER HOLDER
€ 13.00
6
46055003
ref: 6
SCREW-CABLE ADJUST
€ 11.50
7
46056005
ref: 7
NUT-LOCK
€ 6.00
8
92007046
ref: 8
BOLT,HEX HEAD,5X22
€ 4.50
9
4609401121
ref: 9
FLAT BLACK
HOLDER-CLUTCH LEV,BLK
€ 23.00
10
410B0600
ref: 10
WASHER-PLAIN-SMALL,6M
€ 0.50
11
110N0625
ref: 11
BOLT-HEX HEAD,6X25
€ 3.50
12
92019014
ref: 12
NUT-LOCK,5M/M
€ 2.50
13
46092015
ref: 13
LEVER-GRIP,CLUTCH
€ 11.50
14
4609102921
ref: 14
FLAT BLACK
CASE ASSEMBLY,LH,FLAT BLACK
€ 162.50
?
99990531
ref: ?
Includes items 15 an
DIMMER SWITCH KIT B
€ 1.00
15
221B0308A
ref: 15
SCREW-CNTSNK HD,3X8
€ 2.50
16
46044011
ref: 16
KNOB-L.H SWITCH
€ 6.00
17
220B0305A
ref: 17
SCREW-PAN HEAD,3X5
€ 1.00
18
92095010
ref: 18
WASHER
€ 2.50
19
46044012
ref: 19
KNOB-SWITCH
€ 3.50
20
220B0525
ref: 20
SCREW-PAN-CROS,5X25
€ 2.50
21
270101009
ref: 21
SWITCH ASSY,HORN BUTN
€ 5.50
22
270101009
ref: 22
SWITCH ASSY,HORN BUTN
€ 5.50
23
270101009
ref: 23
SWITCH ASSY,HORN BUTN
€ 5.50
24
92095012
ref: 24
WASHER-LOCK
€ 3.50
25
4609600810
ref: 25
LEVER,STARTER,BLACK
€ 17.00
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
112G0610
ref: 27
BOLT,6X10
€ 0.50
28
56003009
ref: 28
MIRROR-ASSY,LH
€ 50.00
29
56002020
ref: 29
OPTION
MIRROR-ASSY,RH
€ 47.50
30
490061017
ref: 30
BOOTS,LEVER HOLDER
€ 13.00
31
27021005
ref: 31
SWITCH-FR BRAKE LAMP
€ 25.50
32
4606000921
ref: 32
FLAT BLACK
HOLDER,BRAKE LEVER,FR
€ 27.00
33
46058004
ref: 33
LEVER-GRIP,FRONT BRAK
€ 24.00
34
92102009
ref: 34
NOT REQUIRED FOR 560
CAP-RR VIEW MIRROR
€ 3.00
35
46019022
ref: 35
GRIP ASSY-THROTTLE
€ 13.50
36
4601803721
ref: 36
FLAT BLACK
CASE ASSY,R.H,BLACK
€ 72.50
37
46037023
ref: 37
HOLDER,CONTROL CABLE
€ 4.50
38
46075019
ref: 38
RUBBER-L.H GRIP
€ 6.00
39
46089015
ref: 39
SWITCH ASSEMBLY,LH
€ 33.50
