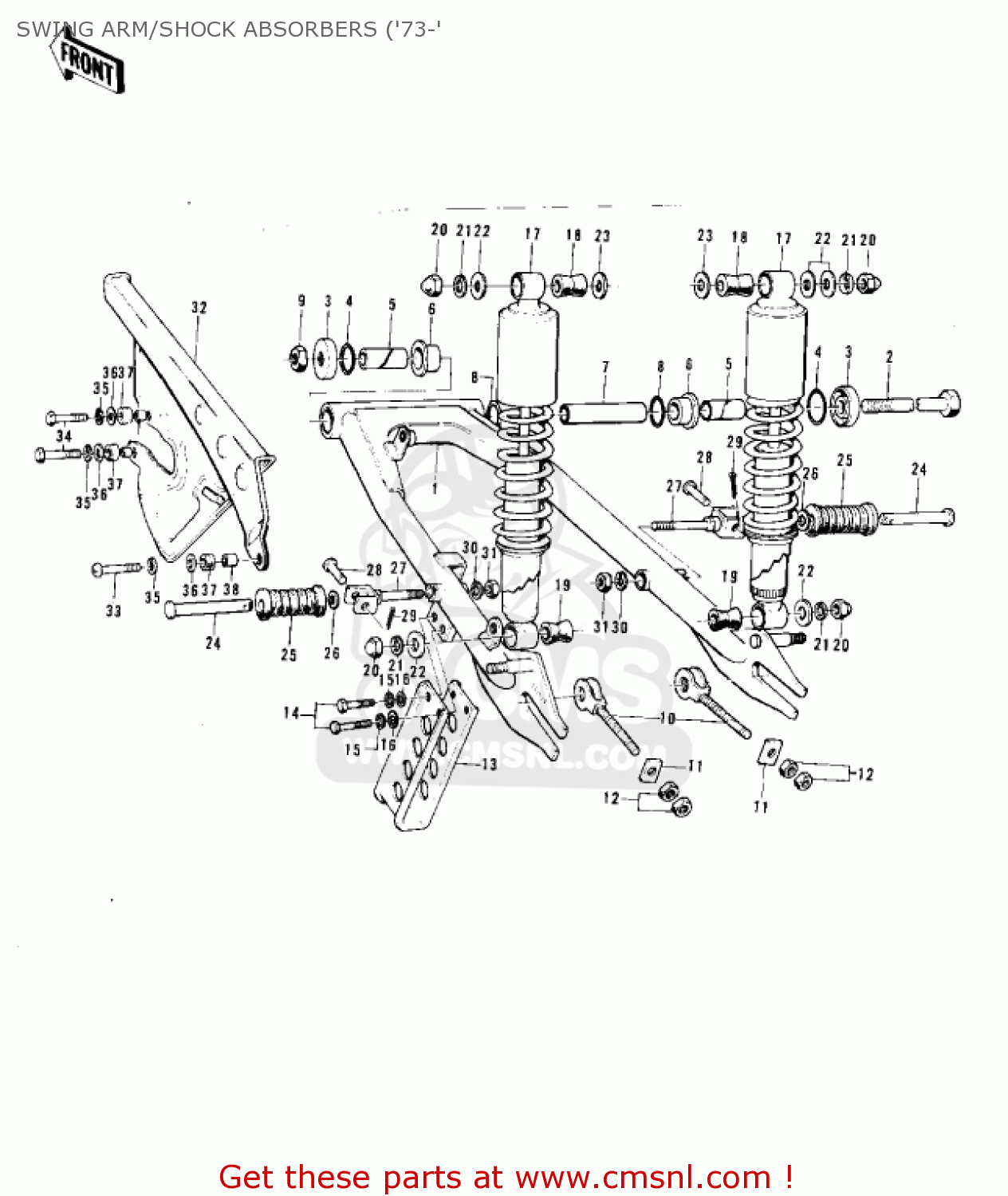

SWING ARM/SHOCK ABSORBERS ('73-'

ref

part #

description

quantity

1

33001042
ref: 1

ARM-SWING

€ 102.50

2

33032035
ref: 2

SHAFT-SWING ARM PIVOT

€ 10.50

3

33035005
ref: 3

CAP,SWING ARM

€ 5.50

4

671B2530
ref: 4

O RING,30MM

€ 3.00

5

33034016
ref: 5

SLEEVE,12.1X22X39

€ 14.50

6

33033009
ref: 6

BUSHING,SWING ARM

€ 57.00

7

33034018
ref: 7

SLEEVE-SWING ARM,LONG

€ 3.50

8

670B2016
ref: 8

O RING,16MM

€ 1.00

9

92019009
ref: 9

NUT,LOCK,12MM

€ 5.00

10

33040050
ref: 10

ADJUSTER-CHAIN

€ 17.00

11

33041002
ref: 11

PLATE,CHAIN ADJUSTER

€ 9.50

12

312B0800
ref: 12

NUT,8MM

€ 0.50

13

55020008
ref: 13

GUARD-CHAIN

€ 3.50

14

110G0650
ref: 14

BOLT,HEX HEAD,6X50

€ 1.00

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

410B0600
ref: 16

WASHER-PLAIN-SMALL,6M

€ 0.50

?

4501406779
ref: ?
Includes items 17 -

SHOCK ABSORBER-RR,CR

€ 125.50

18

45017010
ref: 18

BUSH A-SHCK ABS RUBER

€ 9.00

19

45017009
ref: 19

BUSH B-SHCK ABS RUBER

€ 3.00

20

92020003
ref: 20

NUT-SHOCK ABSORBER

€ 4.00

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

92022044
ref: 22

WASHER,10.5X26X2.3

€ 2.50

23

410B1200
ref: 23

WASHER-PLAIN-SMALL,12

€ 0.50

24

34028009
ref: 24
OPTION

BAR-REAR FOOTREST

€ 24.00

25

34028009
ref: 25
OPTION

BAR-REAR FOOTREST

€ 24.00

26

92022199
ref: 26
OPTION

WASHER,20X30X2.3

€ 5.00

27

34029007
ref: 27
OPTION

BKT-RR FOOTREST BAR

€ 7.00

28

920431464
ref: 28
OPTION

PIN

€ 5.50

29

550D2015
ref: 29
OPTION

PIN-COTTER,2.0X15

€ 1.00

30

461F1200
ref: 30
OPTION

WASHER-SPRING,12MM

€ 0.50

31

315B1200
ref: 31
OPTION

NUT,12MM

€ 0.50

32

3601404421
ref: 32
FLAT BLACK

COVER-CHAIN,BLACK

€ 30.00

33

220B0616
ref: 33

SCREW-PAN HEAD,6X16

€ 2.50

34

112G0616
ref: 34

BOLT UPSET,6X16

€ 1.00

35

461F0600
ref: 35

WASHER-SPRING,6MM

€ 0.50

36

92022125
ref: 36

WASHER,6.5X20X1.6

€ 1.00

37

92075051
ref: 37

DAMPER RUBBER

€ 2.50

38

92027103
ref: 38

COLLAR

€ 2.50
