FRONT FORK ('73-'75 F11/F11-A/F1
F11 1973 USA

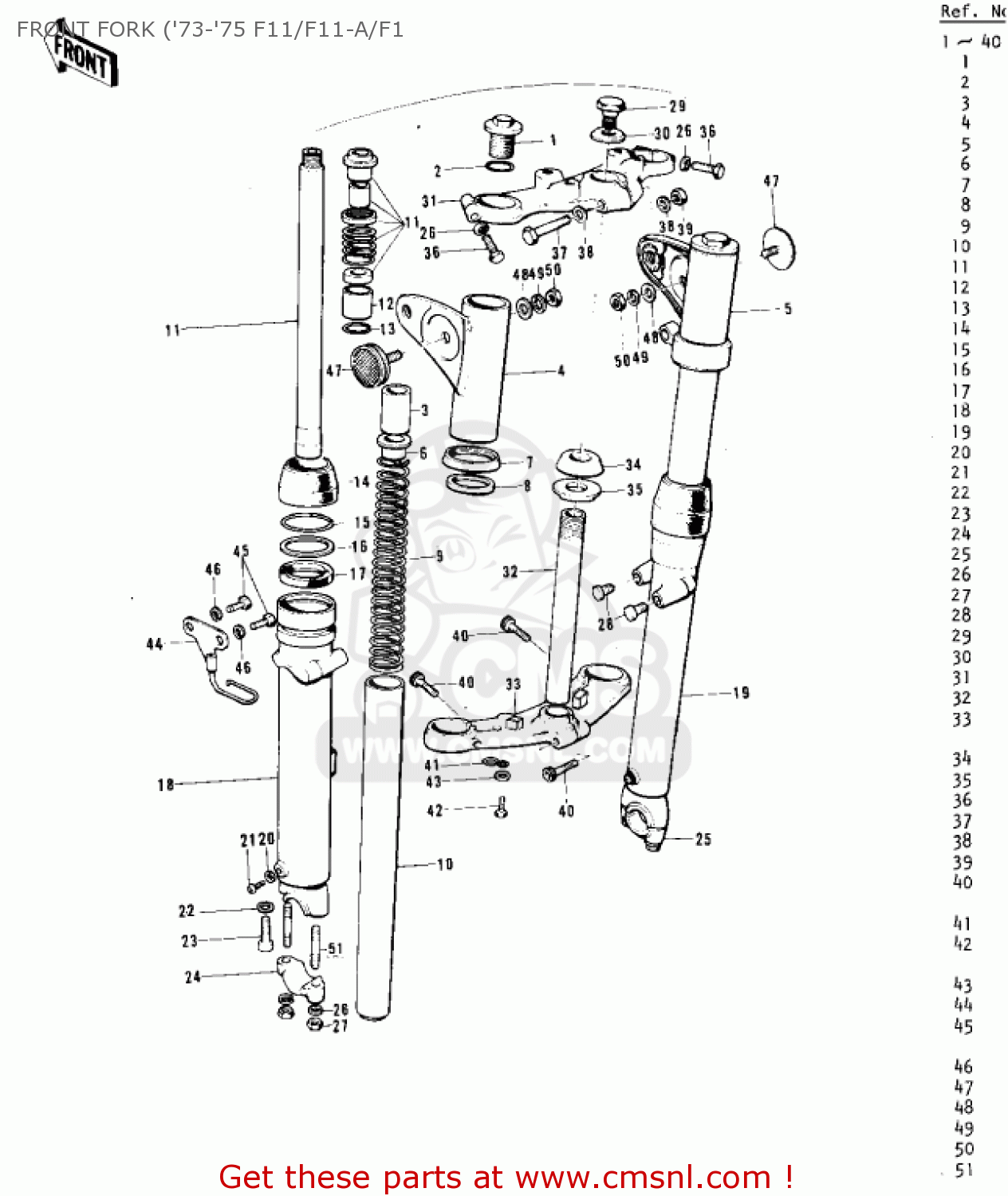

Front fork ('73-'75 f11/f11-a/f1 diagram F11 1973 USA
FRONT FORK ('73-'75 F11/F11-A/F1 F11 1973 USA
×
prices are in EUR
ref
part #
description
quantity
?
4400108121
ref: ?
Includes items 1 - 4
FRONT FORK ASSEMBLY,FLAT BLACK
€ 1,181.50
1
44041037
ref: 1
BOLT-FORK FITTING
€ 30.50
2
920551012
ref: 2
RING-O,FORK TOP
€ 5.00
3
44028025
ref: 3
SPACER
€ 1.50
4
4403304721
ref: 4
FLAT BLACK
FORK COVER,LH,FLAT BLACK
€ 179.50
5
4403404721
ref: 5
FLAT BLACK
FORK COVER,RH,FLAT BLACK
€ 179.50
6
44029019
ref: 6
GUIDE-FORK SPRING
€ 6.00
7
44032009
ref: 7
GUIDE-FORK COVER
€ 4.00
8
44026041
ref: 8
SPRING-FORK
€ 14.00
9
44026041
ref: 9
SPRING-FORK
€ 14.00
10
44013036
ref: 10
TUBE-FORK INNER
€ 96.00
11
44022009
ref: 11
CYLINDER-FORK
€ 65.00
12
44018001
ref: 12
PISTON-FORK
€ 7.00
13
44044008
ref: 13
CIRCLIP-FORK PISTON
€ 7.00
14
44010019
ref: 14
DUST SHIELD-FORK
€ 8.50
15
44044005
ref: 15
CIRCLIP-OIL SEAL FIT
€ 6.50
16
44043023
ref: 16
WASHER-OIL SEAL FIT
€ 2.00
17
44009020
ref: 17
OIL SEAL,FORK
€ 38.00
18
44006042
ref: 18
TUBE-R.H OUTER
€ 159.50
19
44006042
ref: 19
TUBE-R.H OUTER
€ 159.50
20
44045002
ref: 20
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
21
220B0408
ref: 21
SCREW-PAN-CROS
€ 0.50
22
44045057
ref: 22
GASKET (NAS)
€ 3.00
23
44041040
ref: 23
BOLT-FORK CYLINDER
€ 4.50
24
44063004
ref: 24
HOLDER-FRONT AXLE,L.H
€ 9.50
25
44063005
ref: 25
HOLDER-FRONT AXLE,R.H
€ 15.00
26
461F0800
ref: 26
WASHER-SPRING,8MM
€ 0.50
27
311B0800
ref: 27
NUT,8MM
€ 0.50
28
44062002
ref: 28
CAP
€ 1.50
29
44041007
ref: 29
BOLT-STRNG STEM HEAD
€ 11.50
30
44043032
ref: 30
WASHER-FORK COVER
€ 2.50
31
44039046
ref: 31
HEAD-STEERING STEM
€ 88.50
32
44052003
ref: 32
STEERING STEM SHAFT
€ 232.50
33
44037089
ref: 33
STEERING STEM
€ 305.50
34
92047010
ref: 34
CONE-STERNG BERG LOW
€ 10.00
35
44010020
ref: 35
DUST SHIELD-STRNG STM
€ 2.50
36
44041044
ref: 36
BOLT-STEERING STEM HD
€ 6.50
37
44041042
ref: 37
BOLT-STEERING STEM HD
€ 3.00
38
410B0800
ref: 38
WASHER-PLAIN-SMALL,8M
€ 0.50
39
920151124
ref: 39
NUT,LOCK,8MM
€ 3.50
40
44041043
ref: 40
BOLT-STEERING STEM
€ 6.50
40
113B1236A
ref: 40
FOR 44037-089
BOLT-HEX HEAD,12X36
€ 3.50
41
92037083
ref: 41
CLAMP
€ 1.50
42
112G0612
ref: 42
BOLT-UPSET
€ 2.50
42
112G0612
ref: 42
BOLT-UPSET
€ 2.50
43
411B0600
ref: 43
WASHER-PLAIN,6MM
€ 0.50
44
54030007
ref: 44
GUIDE-CABLE
€ 3.50
45
114G0812
ref: 45
BOLT-SMALL,8X12
€ 2.00
45
114G0812
ref: 45
BOLT-SMALL,8X12
€ 2.00
46
461F0800
ref: 46
WASHER-SPRING,8MM
€ 0.50
47
28001011
ref: 47
REFLECTOR-REFLEX,FRNT
€ 14.50
48
411B0500
ref: 48
WASHER-PLAIN,5MM
€ 0.50
49
461F0500
ref: 49
WASHER-SPRING,5MM
€ 0.50
