FENDERS ('73-'75 F11/F11-A/F11-B
F11 1973 USA

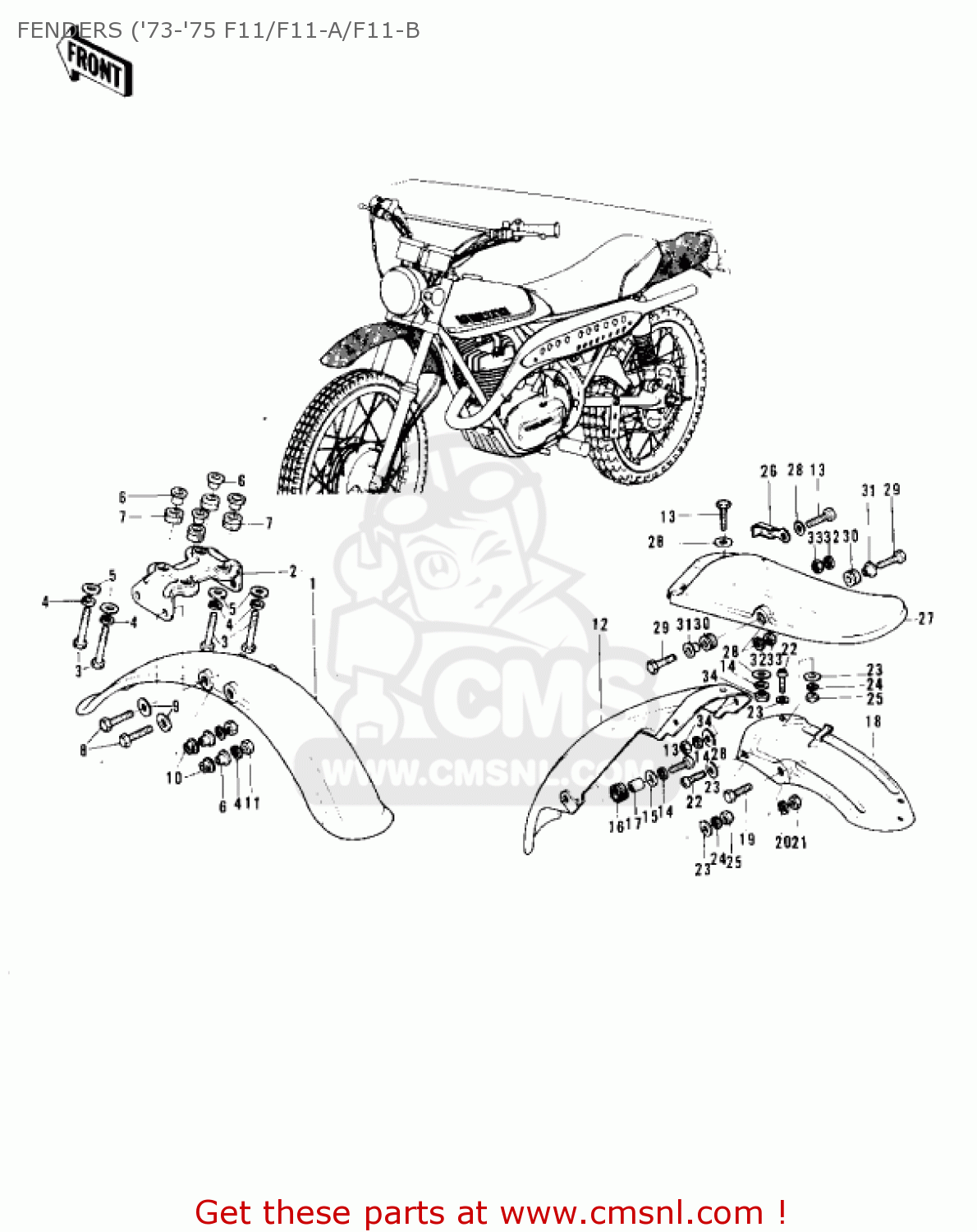

Fenders ('73-'75 f11/f11-a/f11-b diagram F11 1973 USA
FENDERS ('73-'75 F11/F11-A/F11-B F11 1973 USA
×
prices are in EUR
ref
part #
description
quantity
1
350040661U
ref: 1
F11
FENDER,FRONT,C.YELLOW
€ 84.00
1
3500406692
ref: 1
F11
FENDER,FRONT,C.RED
€ 75.00
1
350040661U
ref: 1
F11A
FENDER,FRONT,C.YELLOW
€ 84.00
1
350040661M
ref: 1
F11A
FENDER,FRONT,C.LIME
€ 88.50
1
350040661W
ref: 1
F11B
FENDER,FRONT,SILVER
€ 65.50
2
35012016
ref: 2
BRACKET-FRONT FENDER
€ 9.00
3
112G0620
ref: 3
BOLT 6X20
€ 1.00
3
112G0620
ref: 3
BOLT 6X20
€ 1.00
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
92022125
ref: 5
WASHER,6.5X20X1.6
€ 1.00
6
92027153
ref: 6
COLLAR
€ 4.00
7
92075051
ref: 7
DAMPER RUBBER
€ 2.50
8
110N0618
ref: 8
BOLT-HEX HEAD,6X18
€ 2.00
9
92022024
ref: 9
WASHER,7X16X1.2
€ 2.50
10
92075103
ref: 10
DAMPER
€ 2.50
11
311B0600
ref: 11
NUT,6MM
€ 0.50
12
35022066
ref: 12
FENDER A-REAR
€ 26.50
13
112G0618
ref: 13
BOLT-UPSET
€ 0.50
13
112G0618
ref: 13
BOLT-UPSET
€ 0.50
14
461F0600
ref: 14
WASHER-SPRING,6MM
€ 0.50
15
92022125
ref: 15
WASHER,6.5X20X1.6
€ 1.00
16
92075105
ref: 16
DAMPER
€ 2.50
17
92027103
ref: 17
COLLAR
€ 2.50
18
3502206721
ref: 18
REAR
FENDER B-REAR,BLACK
€ 31.50
19
115B0814
ref: 19
BOLT SMALL UPSET 8X14
€ 1.00
19
115B0814
ref: 19
BOLT SMALL UPSET 8X14
€ 1.00
20
461F0800
ref: 20
WASHER-SPRING,8MM
€ 0.50
21
311B0800
ref: 21
NUT,8MM
€ 0.50
22
112G0616
ref: 22
BOLT UPSET,6X16
€ 1.00
22
112G0616
ref: 22
BOLT UPSET,6X16
€ 1.00
23
92022125
ref: 23
WASHER,6.5X20X1.6
€ 1.00
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
311B0600
ref: 25
NUT,6MM
€ 0.50
26
92037085
ref: 26
CLAMP
€ 1.50
27
5304300374
ref: 27
F11
COVER-RR FENDR,YELLOW
€ 19.50
27
5304300392
ref: 27
F11
COVER,RR FENDER,C.RED
€ 42.00
27
530430031U
ref: 27
CANDY YELLOW F11A
COVER,RR FEND,C.LIME
€ 42.00
27
530430031U
ref: 27
CANDY LIME F11A
COVER,RR FEND,C.LIME
€ 42.00
27
530430031W
ref: 27
MET. SILVER F11B
COVER,RR FEND,SILVER
€ 40.50
28
92022044
ref: 28
WASHER,10.5X26X2.3
€ 2.50
29
92007029
ref: 29
BOLT-HEX HEAD,10X46
€ 6.00
30
92075104
ref: 30
DAMPER
€ 2.50
31
92027147
ref: 31
COLLAR
€ 9.00
32
461F1000
ref: 32
WASHER-SPRING,10MM
€ 0.50
33
314B1000
ref: 33
NUT,10MM
€ 0.50
34
92019008
ref: 34
NUT-LOCK,6MM
€ 3.00
