AIR CLEANER/MUFFLER ('73-'75 F11
F11 1973 USA

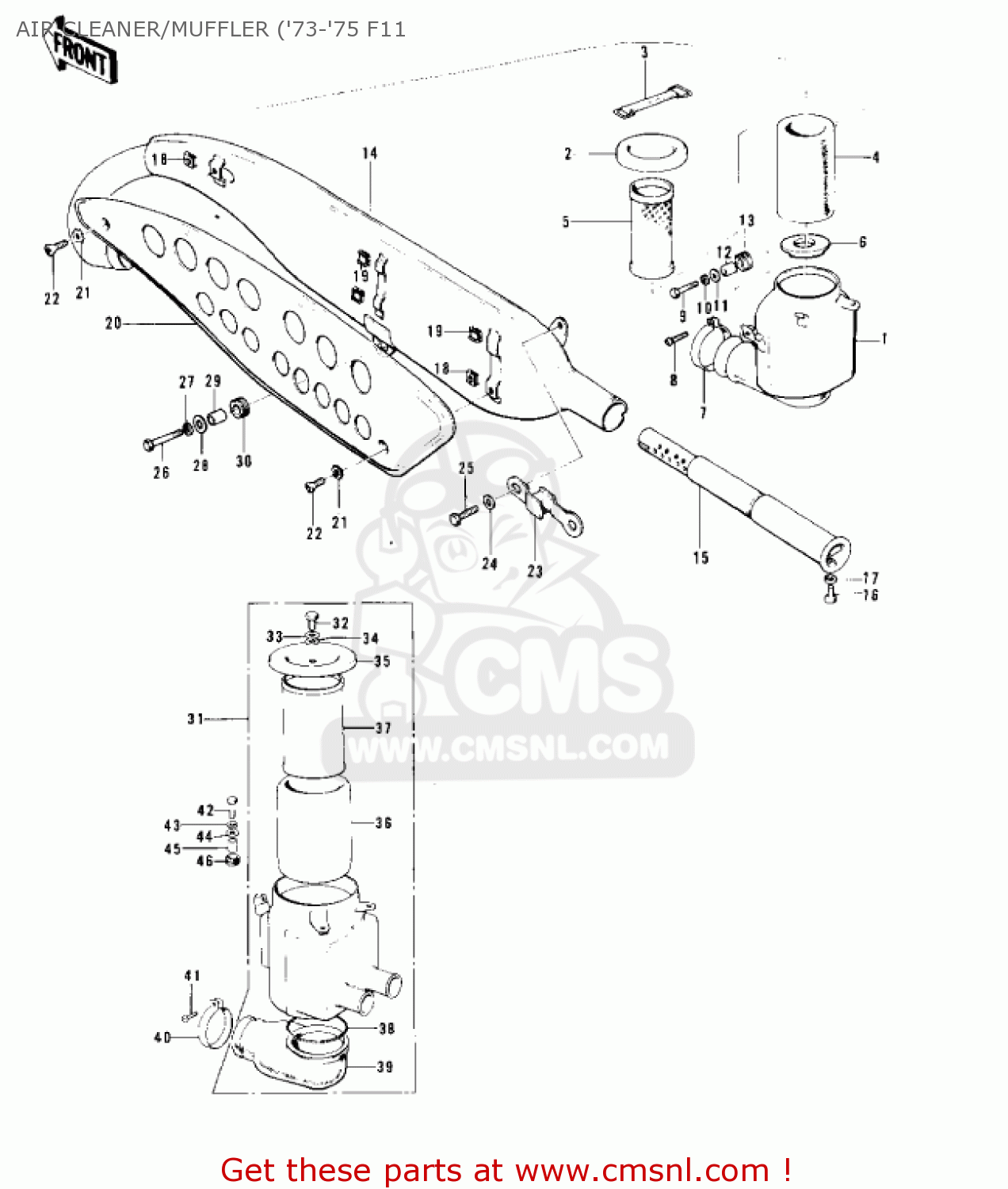

Air cleaner/muffler ('73-'75 f11 diagram F11 1973 USA
AIR CLEANER/MUFFLER ('73-'75 F11 F11 1973 USA
×
prices are in EUR
ref
part #
description
quantity
?
1101005610
ref: ?
Includes items 1 - 6
AIR CLEANER ASSEMBLY,BLACK
€ 90.50
2
1101202710
ref: 2
BLACK
CAP-AIR CLEANER,BLACK
€ 3.00
3
92072043
ref: 3
BAND-AIRCLEANER CAP
€ 11.50
4
11013047
ref: 4
ELEMENT-AIR FILTER
€ 14.50
5
11014006
ref: 5
WIRE NET-AIR CLEANER
€ 4.50
6
16065016
ref: 6
HOLDER-AIR INLET PIPE
€ 3.00
?
92037061
ref: ?
Includes items 7 and
CLAMP
€ 10.50
8
220B0535
ref: 8
SCREW-PAN-CROS
€ 2.00
9
112B0622
ref: 9
BOLT, 6X22
€ 2.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
92022125
ref: 11
WASHER,6.5X20X1.6
€ 1.00
12
92027129
ref: 12
COLLAR,6.8X10X8.5
€ 3.00
13
92075076
ref: 13
DAMPER
€ 3.00
?
1800112521
ref: ?
Includes items 14 -
MUFFLER ASSY,F.BLACK
€ 167.00
15
18033065
ref: 15
BAFFLE TUBE
€ 86.00
16
112G0612
ref: 16
BOLT-UPSET
€ 2.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
18065009
ref: 18
INSULATOR,HEAT
€ 3.00
19
18065007
ref: 19
INSULATOR,HEAT
€ 3.00
20
18064008
ref: 20
COVER-MUFFLER
€ 31.50
21
463H0600
ref: 21
WASHER-LOCK,6MM
€ 0.50
22
220E0612
ref: 22
SCREW-PAN HEAD,6X12
€ 3.00
23
18061038
ref: 23
BRACKET-MUFFLER
€ 8.00
24
411B0600
ref: 24
WASHER-PLAIN,6MM
€ 0.50
25
112G0616
ref: 25
BOLT UPSET,6X16
€ 1.00
26
115G0830
ref: 26
BOLT-SMALL-UPSET,8X30
€ 3.00
27
461F0800
ref: 27
WASHER-SPRING,8MM
€ 0.50
28
92022035
ref: 28
WASHER-FUEL TANK FIT
€ 2.50
29
92027102
ref: 29
COLLAR
€ 1.00
30
18063005
ref: 30
DAMPER,MUFFLER
€ 3.00
31
1101008010
ref: 31
BLACK
AIR CLEANER ASSY
€ 42.00
32
92001121
ref: 32
BLACK
BOLT,HEX HEAD,6X14
€ 2.50
33
461F0600
ref: 33
BLACK
WASHER-SPRING,6MM
€ 0.50
34
410B0600
ref: 34
BLACK
WASHER-PLAIN-SMALL,6M
€ 0.50
35
11012046
ref: 35
BLACK
CAP,AIR CLEANER
€ 6.00
36
11013047
ref: 36
BLACK
ELEMENT-AIR FILTER
€ 14.50
37
11014006
ref: 37
BLACK
WIRE NET-AIR CLEANER
€ 4.50
38
92081063
ref: 38
BLACK
SPRING-COIL
€ 3.00
39
11015045
ref: 39
BLACK
PIPE,AIR INLET
€ 13.50
40
92037061
ref: 40
BLACK
CLAMP
€ 10.50
41
220B0535
ref: 41
BLACK
SCREW-PAN-CROS
€ 2.00
42
112B0622
ref: 42
BLACK
BOLT, 6X22
€ 2.50
43
461F0600
ref: 43
BLACK
WASHER-SPRING,6MM
€ 0.50
44
92022125
ref: 44
BLACK
WASHER,6.5X20X1.6
€ 1.00
45
92027129
ref: 45
BLACK
COLLAR,6.8X10X8.5
€ 3.00
46
92075076
ref: 46
BLACK
DAMPER
€ 3.00
