WATER PUMP

EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

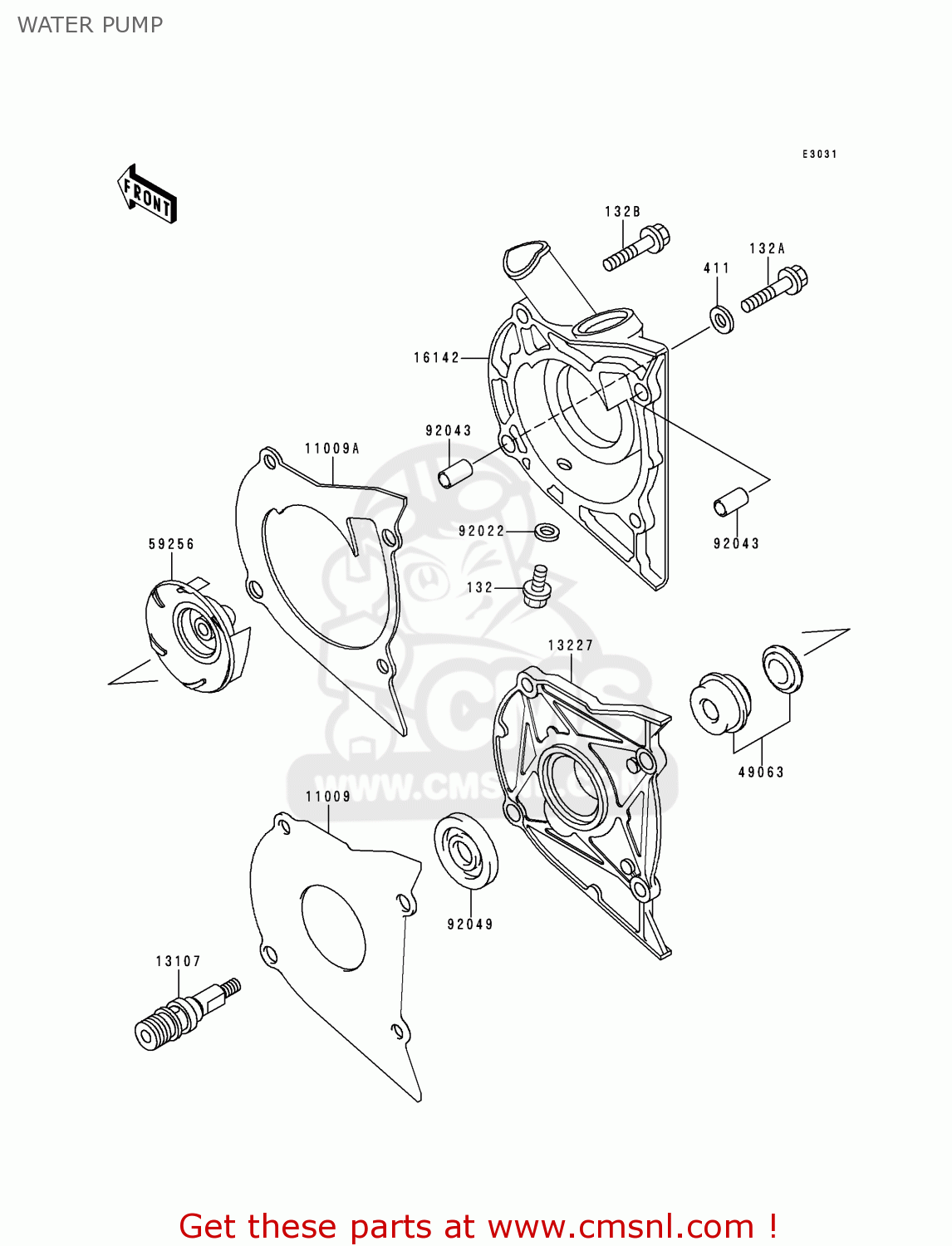

Water pump diagram EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

WATER PUMP EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
WATER PUMP EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
WATER PUMP EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
132J0635
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
11009
110091838
ref: 11009
GASKET, PUMP HOUSING (NAS)
110091838
€ 7.50
11009A
110091839
ref: 11009A
GASKET, PUMP COVER (NAS)
110091839
€ 9.50
13107
131071203
ref: 13107
SHAFT,IMPELLER
131071203
€ 38.50
13227
132271064
ref: 13227
HOUSING,WATER PUMP
132271064
€ 58.00
16142
161421073
ref: 16142
COVER-PUMP
161421073
€ 131.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
490631054
€ 19.00
59256
592561060
ref: 59256
IMPELLER
592561060
€ 24.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491215
ref: 92049
SEAL-OIL
920491215
€ 10.00
