Genuine EX Kawasaki Parts delivered quickly!


FRONT FORK

EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

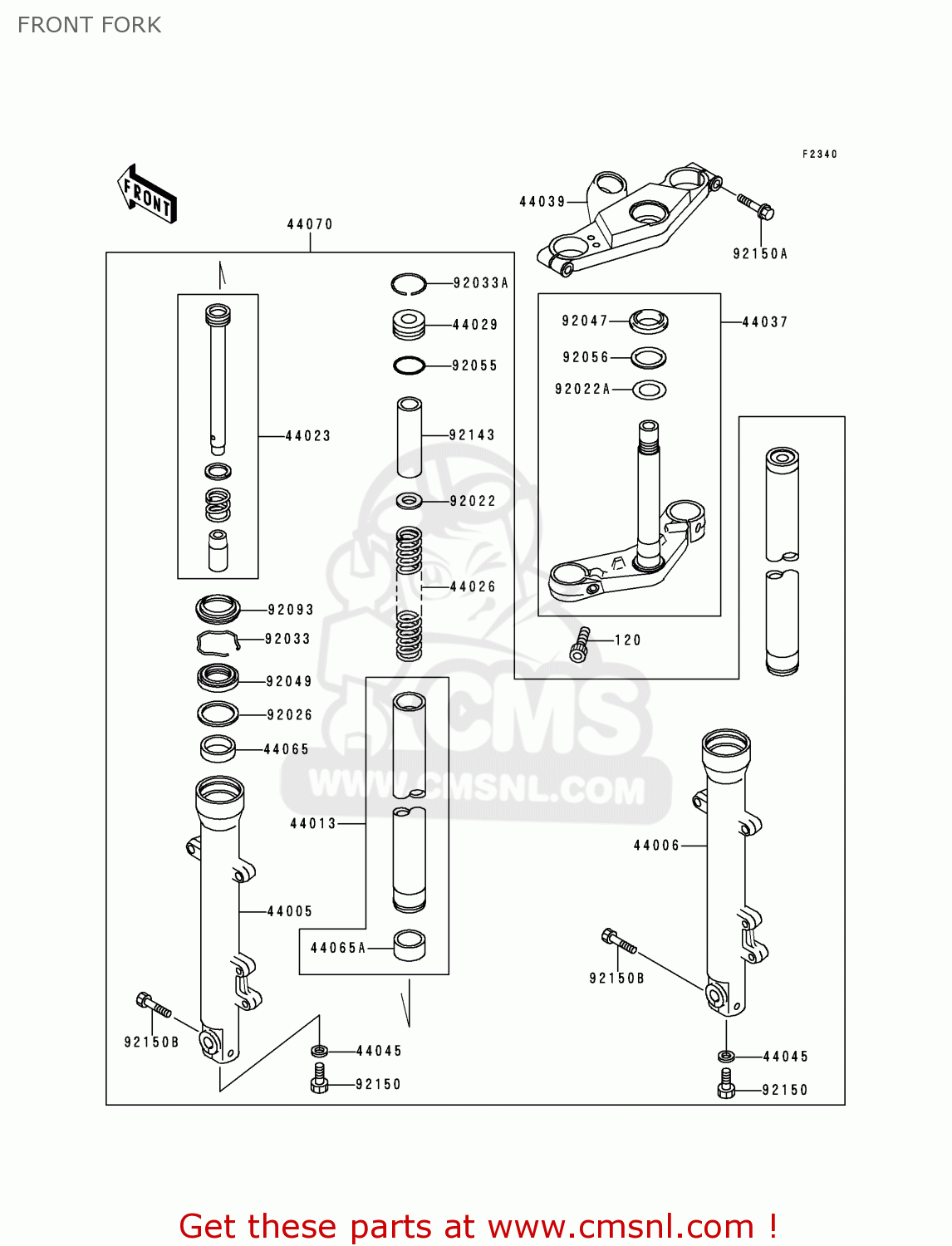

Front fork diagram EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

FRONT FORK EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
FRONT FORK EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
FRONT FORK EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
120
120S1025
ref: 120
BOLT-SOCKET,10X25
€ 3.00
44005
440051331
ref: 44005
PIPE-LEFT FORK OUTER
€ 385.50
44006
440061331
ref: 44006
PIPE-RIGHT FORK OUTER
€ 385.50
44013
440131394
ref: 44013
PIPE-FORK INNER
440131394
€ 144.50
44023
440231092
ref: 44023
CYLINDER-COMP-FORK
€ 101.50
44026
440261555
ref: 44026
SPRING-FRONT FORK
€ 52.00
44029
440291127
ref: 44029
SEAT-FORK SPRING
440291127
€ 33.00
44037
440371319
ref: 44037
HOLDER-FORK UNDER
€ 262.00
44039
44039124610
ref: 44039
HOLDER-FORK UPPER,BLA
44039124610
€ 194.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651109
ref: 44065
BUSHING-FRONT FORK
440651109
€ 15.50
44065A
440651110
ref: 44065A
BUSHING-FRONT FORK,IN
440651110
€ 16.00
44070
440705175
ref: 44070
DAMPER-ASSY,FORK
€ 1,253.00
92022
920221879
ref: 92022
WASHER
920221879
€ 3.00
92022A
92022231
ref: 92022A
WASHER,PLAIN
92022231
€ 3.00
92026
920261443
ref: 92026
SPACER,FORK
920261443
€ 5.50
92033
920331236
ref: 92033
RING-SNAP
920331236
€ 5.00
92033A
920331286
ref: 92033A
RING-SNAP
920331286
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491421
ref: 92049
SEAL-OIL,FORK OUTER
920491421
€ 13.50
92055
920551384
ref: 92055
RING-O,FORK SPRING SE
920551384
€ 3.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
92056003
€ 6.00
92093
920931367
ref: 92093
SEAL,FORK OUTER
920931367
€ 14.00
92143
921431682
ref: 92143
COLLAR,FORK,L=100
€ 6.00
92150
921501432
ref: 92150
BOLT
921501432
€ 6.50
92150A
921501610
ref: 92150A
BOLT
921501610
€ 5.50
92150B
921501613
ref: 92150B
BOLT,SOCKET,8MM
€ 3.00
