DECALS(M.N.BLUE)(EX500-E2)

EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

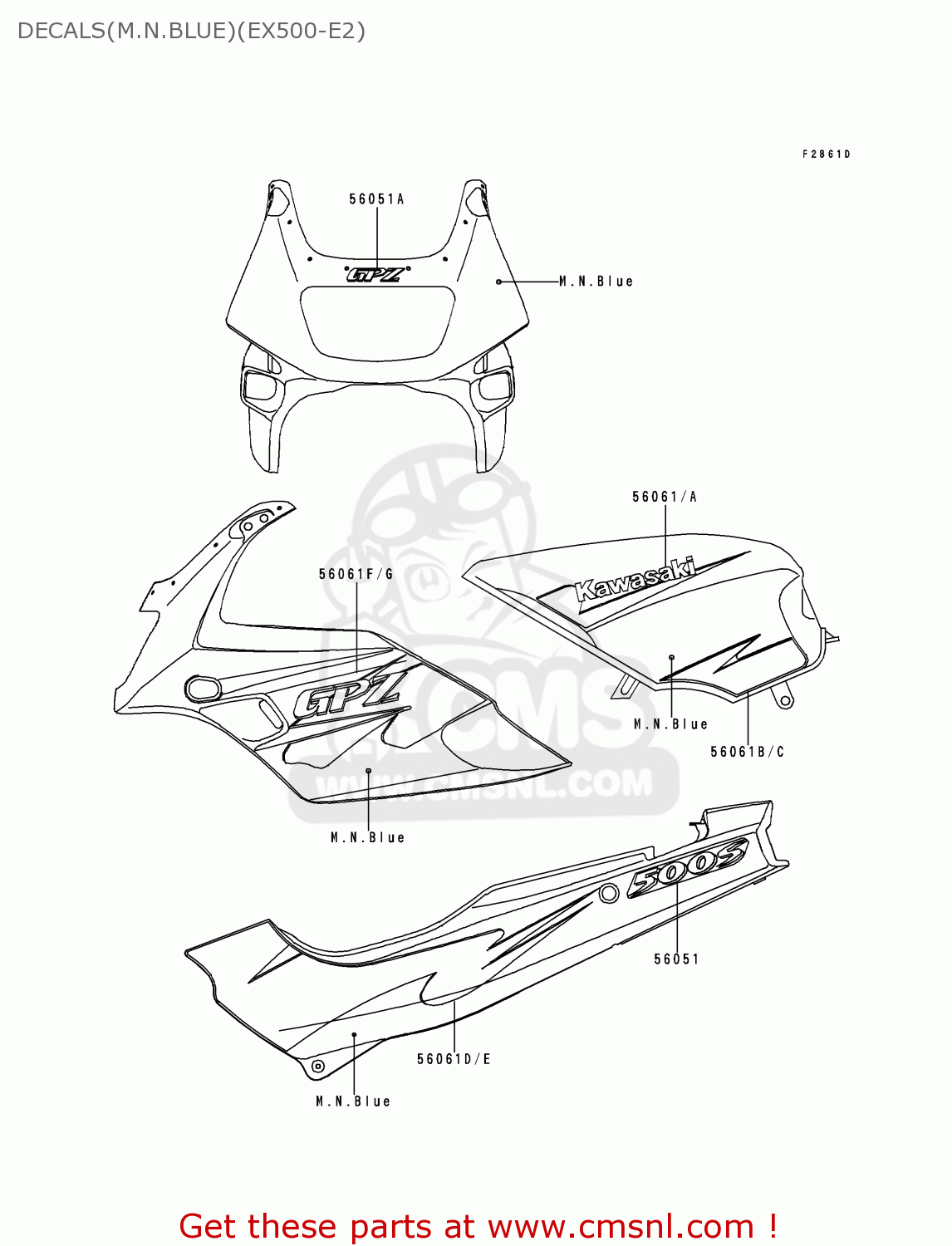

Decals(m.n.blue)(ex500-e2) diagram EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

56051

560511201
ref: 56051

MARK,500S

€ 16.00

56051A

560511203
ref: 56051A

MARK,GPZ

€ 14.00

56061

560611149
ref: 56061

PATTERN,FUEL TANK,LH,

€ 47.50

56061A

560611150
ref: 56061A

PATTERN,FUEL TANK,RH,

€ 42.00

56061B

560611151
ref: 56061B

PATTERN,FUEL TANK,LH,

€ 34.50

56061C

560611152
ref: 56061C

PATTERN,FUEL TANK,RH,

€ 38.50

56061D

560611153
ref: 56061D

PATTERN,SIDE COVER,LH

€ 84.00

56061E

560611154
ref: 56061E

PATTERN,SIDE COVER,RH

€ 94.50

56061F

560611157
ref: 56061F

PATTERN,UPP COWLING,L

€ 52.00

56061G

560611158
ref: 56061G

PATTERN,UPP COWLING,R

€ 52.00
