Genuine EX Kawasaki Parts delivered quickly!


CRANKSHAFT

EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

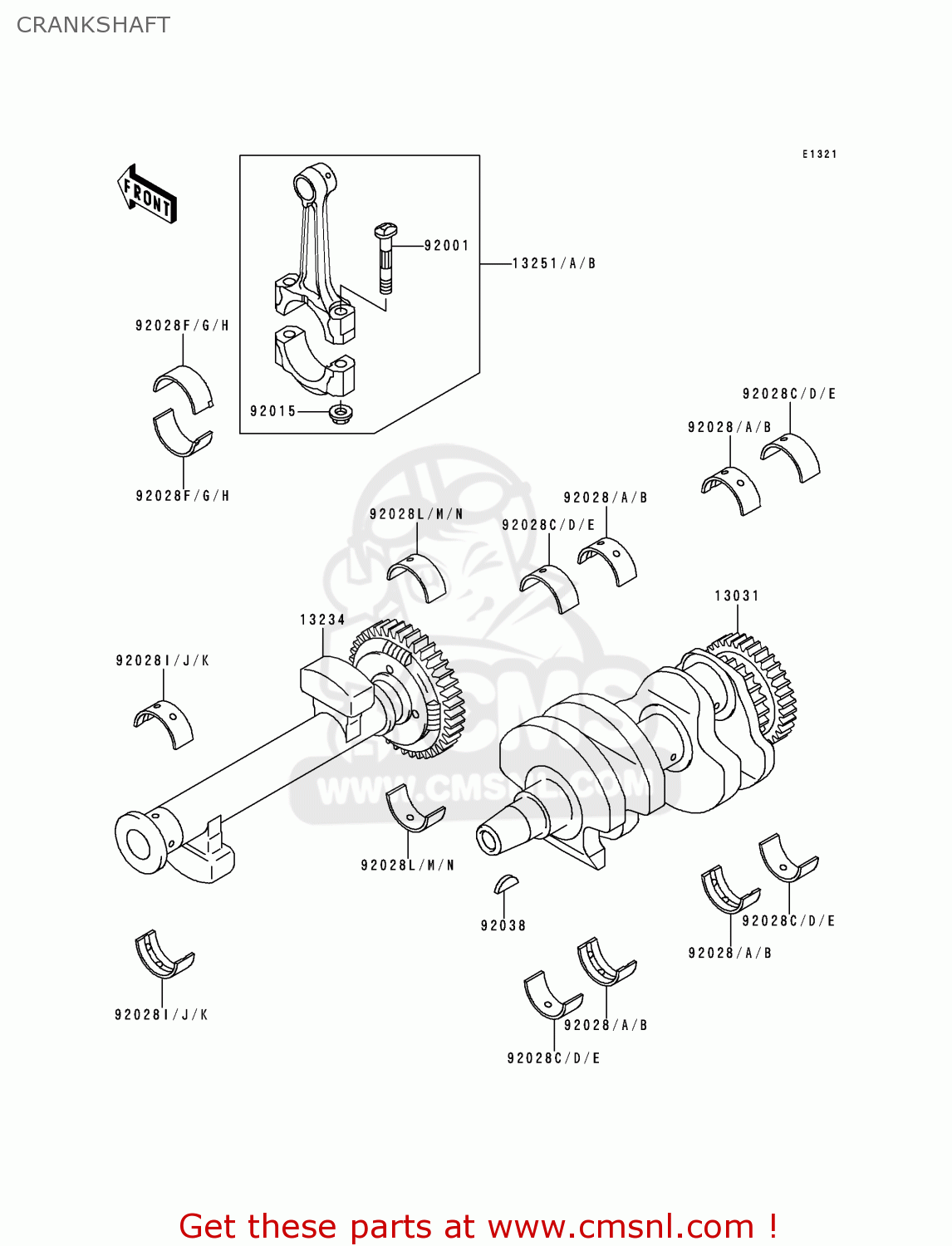

Crankshaft diagram EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

CRANKSHAFT EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
CRANKSHAFT EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
CRANKSHAFT EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
13031
130311303
ref: 13031
CRANKSHAFT-COMP
130311303
€ 1,263.00
13234
132341071
ref: 13234
SHAFT-COMP,BALANCER
132341071
€ 622.50
13251
132511067HH
ref: 13251
ROD-ASSY-CONNECTING,H
€ 179.50
13251A
132511067II
ref: 13251A
ROD-ASSY-CONNECTING,I
132511067II
€ 179.50
13251B
132511067JJ
ref: 13251B
ROD-ASSY-CONNECTING,J
€ 179.50
92001
920011887
ref: 92001
BOLT,CONNECTING ROD,8
920011887
€ 6.00
92015
920151311
ref: 92015
NUT,FLANGED,8MM
920151311
€ 4.50
92028
920281100
ref: 92028
BUSHING,CRANKSHAFT,BL
920281100
€ 11.00
92028A
920281101
ref: 92028A
BUSHING,CRANKSHAFT,BL
920281101
€ 11.00
92028B
920281102
ref: 92028B
BUSHING,CRANKSHAFT,BR
920281102
€ 11.00
92028C
920281272
ref: 92028C
BUSHING,CRANKSHAFT,BL
920281272
€ 19.00
92028D
920281273
ref: 92028D
BUSHING,CRANKSHAFT,BL
920281273
€ 19.00
92028E
920281274
ref: 92028E
BUSHING,CRANKSHAFT,BR
920281274
€ 19.00
92028F
920281348
ref: 92028F
BUSHING,CONNECTING RO
920281348
€ 13.50
92028G
920281349
ref: 92028G
BUSHING,CONNECTING RO
920281349
€ 13.50
92028H
920281350
ref: 92028H
BUSHING,CONNECTING RO
920281350
€ 13.50
92028I
920281495
ref: 92028I
BUSHING,BALANCER,LH,B
920281495
€ 13.50
92028J
920281496
ref: 92028J
BUSHING,BALANCER,LH,B
920281496
€ 13.50
92028K
920281497
ref: 92028K
BUSHING,BALANCER,LH,B
920281497
€ 13.50
92028L
920281690
ref: 92028L
BUSHING,BALANCER,RH,B
920281690
€ 13.50
92028M
920281691
ref: 92028M
BUSHING,BALANCER,RH,B
920281691
€ 13.50
92028N
920281692
ref: 92028N
BUSHING,BALANCER,RH,B
920281692
€ 12.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
