SIDE COVERS/CHAIN COVER

EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

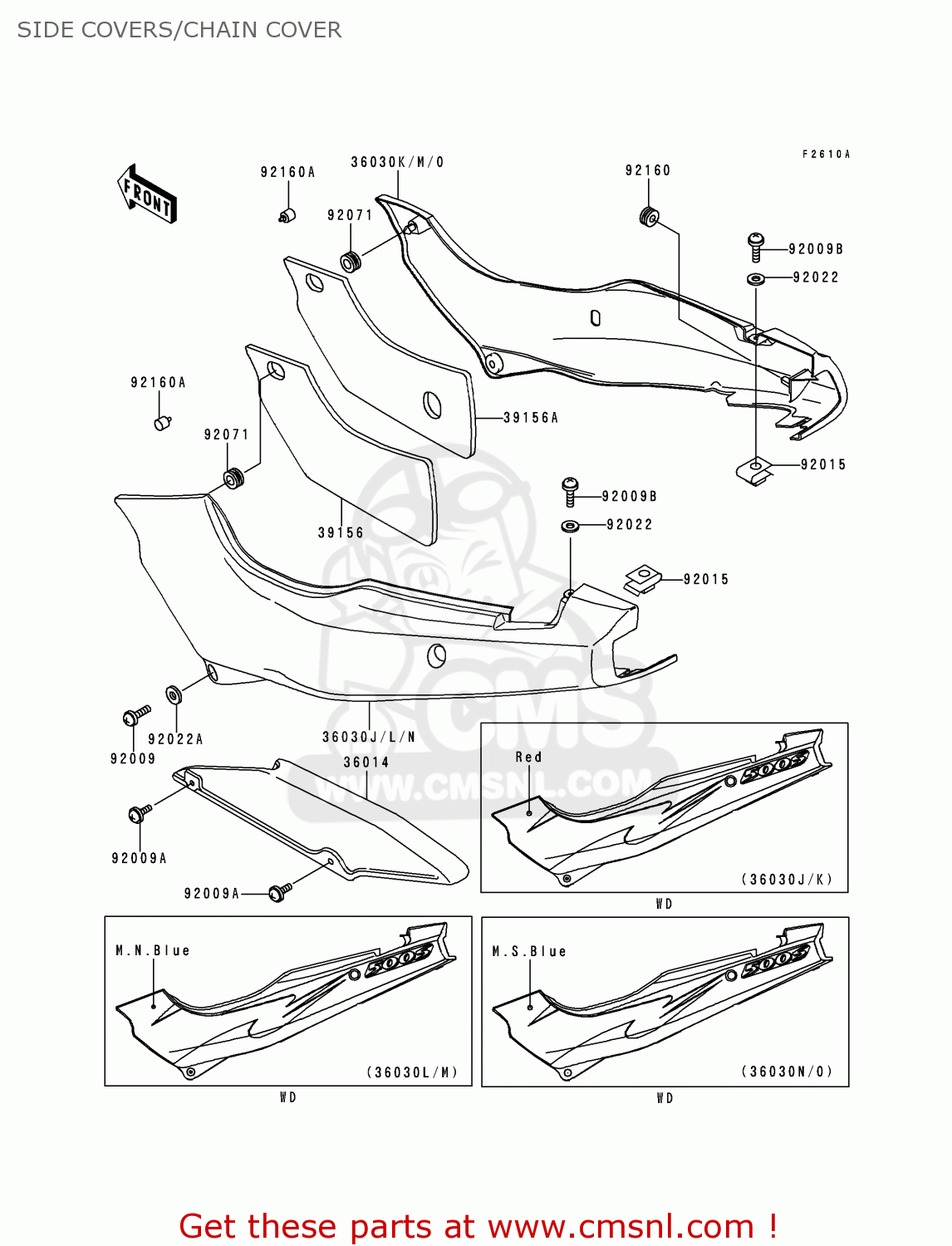

Side covers/chain cover diagram EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP

SIDE COVERS/CHAIN COVER EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
SIDE COVERS/CHAIN COVER EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
SIDE COVERS/CHAIN COVER EX500E2 GPZ500S 1995 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
36014
360141164
ref: 36014
CASE-CHAIN
360141164
€ 59.00
36030J
360305417A5
ref: 36030J
EUFGFRGRITNLSP
COVER-SIDE,LH,C.P.RED
€ 285.00
36030K
360305418A5
ref: 36030K
EUFGFRGRITNLSP
COVER-SIDE,RH,C.P.RED
360305418A5
€ 243.00
36030L
360305419C6
ref: 36030L
EUFRGRITNLNRSP
COVER-SIDE,LH,M.N.BLU
€ 273.00
36030M
360305420C6
ref: 36030M
EUFRGRITNLNRSP
COVER-SIDE,RH,M.N.BLU
360305420C6
€ 281.00
36030N
360305421GW
ref: 36030N
FGGR
COVER-SIDE,LH,M.S.BLU
€ 287.00
36030O
360305422GW
ref: 36030O
FGGR
COVER-SIDE,RH,M.S.BLU
€ 285.00
39156
391561421
ref: 39156
PAD,SIDE COVER,LH
391561421
€ 17.00
39156A
391561422
ref: 39156A
PAD,SIDE COVER,RH
391561422
€ 17.00
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92009A
920091402
ref: 92009A
SCREW,6X10
920091402
€ 1.50
92009B
920091654
ref: 92009B
SCREW
920091654
€ 0.50
92015
920151710
ref: 92015
NUT
920151710
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022A
920221654
ref: 92022A
WASHER,6.5X16X1.0
920221654
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601555
ref: 92160A
DAMPER
921601555
€ 4.50
