VALVE(S)

EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

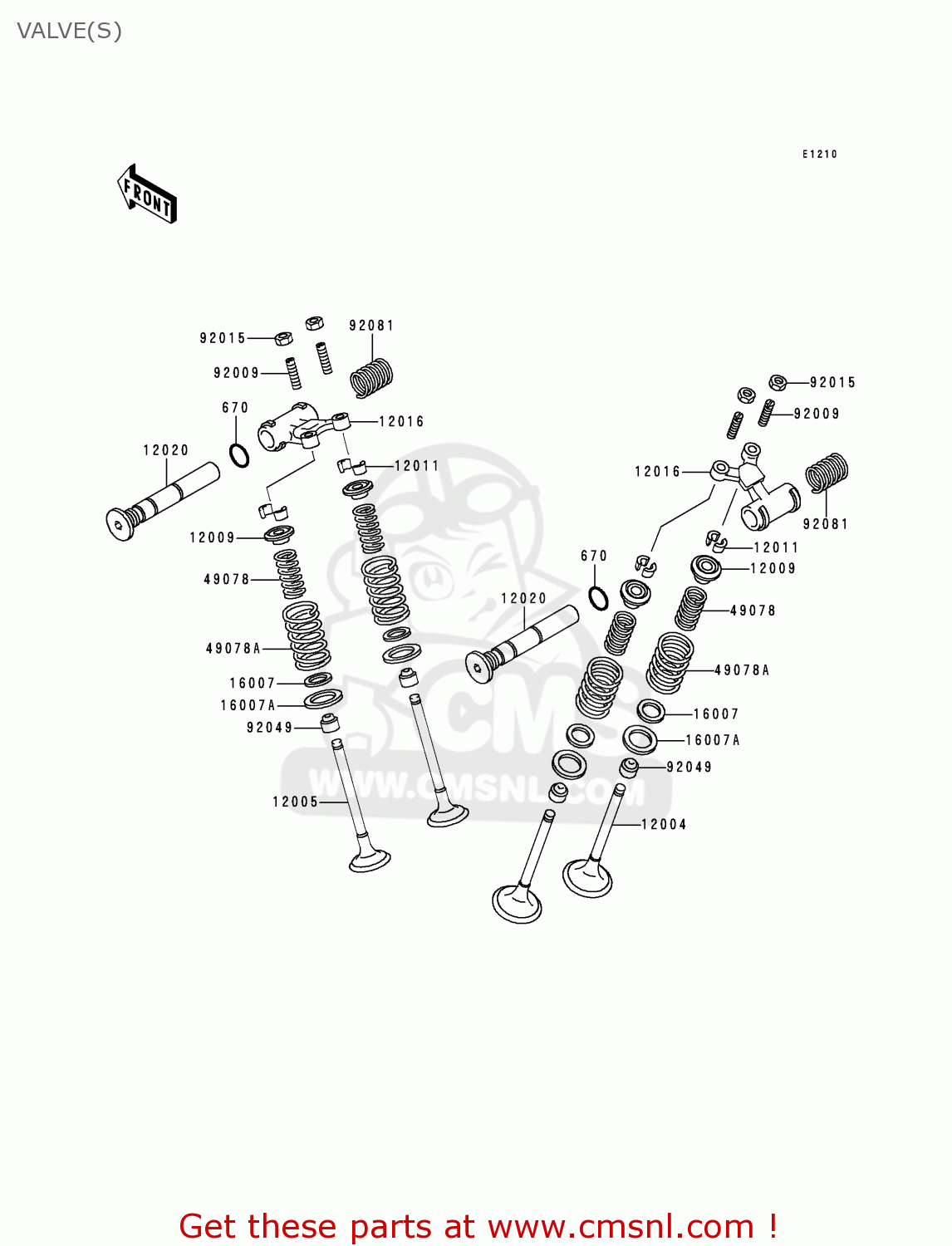

Valve(s) diagram EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

VALVE(S) EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
VALVE(S) EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
VALVE(S) EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
670
670D2016
ref: 670
O RING,16MM
670D2016
€ 1.00
12004
120041119
ref: 12004
VALVE-INTAKE
120041119
€ 38.00
12005
120051052
ref: 12005
VALVE-EXHAUST
120051052
€ 68.00
12009
120091054
ref: 12009
RETAINER-VALVE SPRING
120091054
€ 7.00
12011
120111003
ref: 12011
COLLET
120111003
€ 3.00
12016
120161051
ref: 12016
ARM-ROCKER
120161051
€ 84.00
12020
120201057
ref: 12020
SHAFT-ROCKER
120201057
€ 50.00
16007
160071177
ref: 16007
SEAT-SPRING,12.1X16.2
160071177
€ 3.50
16007A
160071178
ref: 16007A
SEAT-SPRING,17.5X23.8
160071178
€ 4.00
49078
490781051
ref: 49078
SPRING-ENGINE VALVE,I
490781051
€ 10.50
49078A
490781052
ref: 49078A
SPRING-ENGINE VALVE,O
490781052
€ 10.50
92009
920091279
ref: 92009
SCREW,7MM
920091279
€ 6.50
92015
920151325
ref: 92015
NUT,7MM
920151325
€ 3.00
92049
920491062
ref: 92049
OIL SEAL,RVC2-5.5X8.5
920491062
€ 6.50
92081
920811636
ref: 92081
SPRING,ROCKER ARM
920811636
€ 10.00
