REAR BRAKE

EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

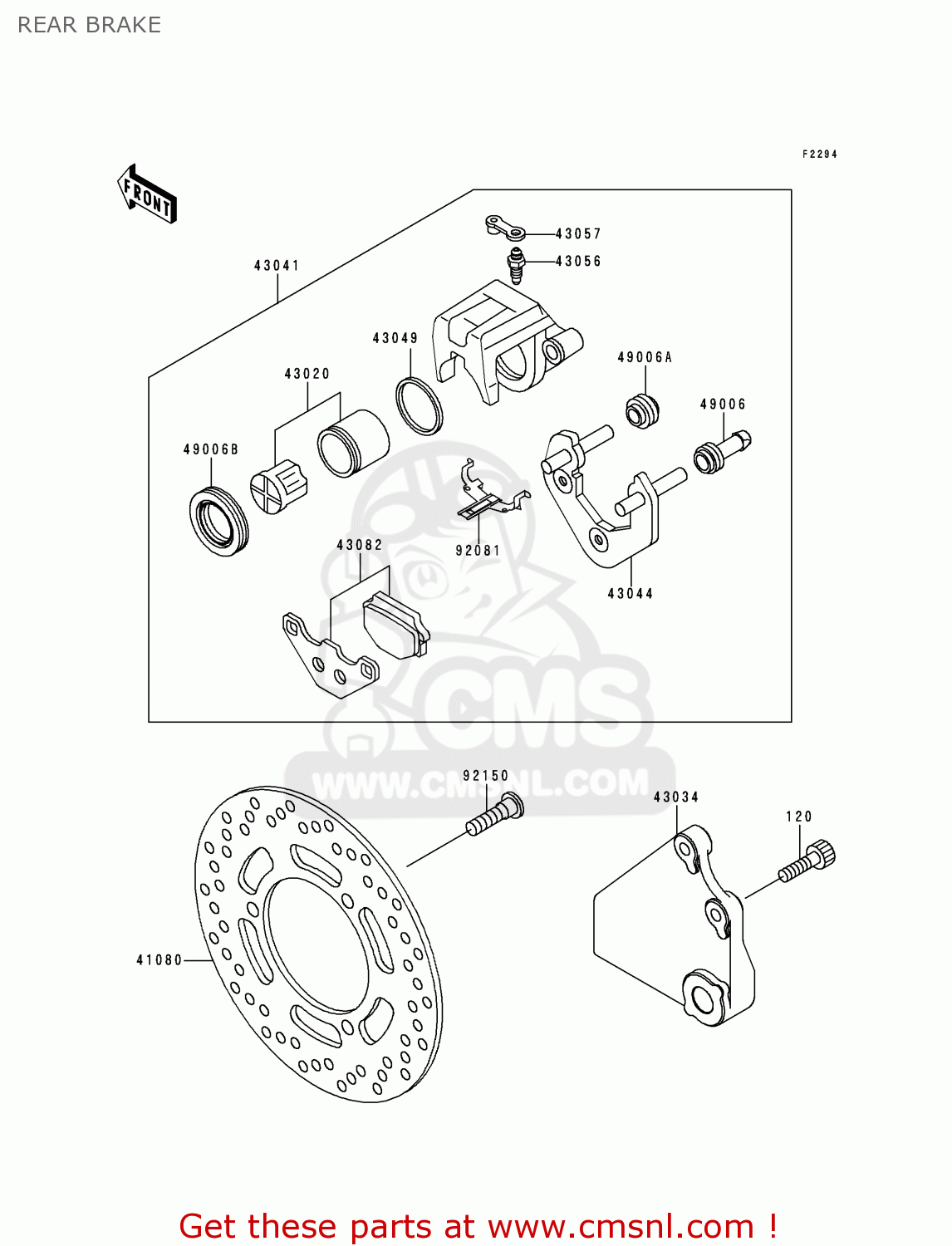

Rear brake diagram EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

REAR BRAKE EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
REAR BRAKE EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
REAR BRAKE EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
120P0816
€ 2.50
41080
410801251FB
ref: 41080
DISC,RR,C.GRAY
€ 185.00
43020
430201082
ref: 43020
PISTON-COMP-BRAKE
430201082
€ 49.00
43034
430341131
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 99.00
43041
430411529DJ
ref: 43041
CALIPER-ASSY,RR,BLACK
€ 409.50
43044
430441075
ref: 43044
HOLDER-COMP-CALIPER,R
430441075
€ 121.50
43049
430491026
ref: 43049
PACKING,PISTON SEAL (NAS)
430491026
€ 9.00
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821163
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821163
€ 42.50
49006
490061054
ref: 49006
BOOT,CALIPER
490061054
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
490061055
€ 4.50
49006B
490061091
ref: 49006B
BOOT,PISTON
490061091
€ 11.00
92081
920811341
ref: 92081
SPRING
920811341
€ 10.00
92150
921501771
ref: 92150
BOLT
921501771
€ 3.00
