BREATHER COVER/OIL PAN

EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

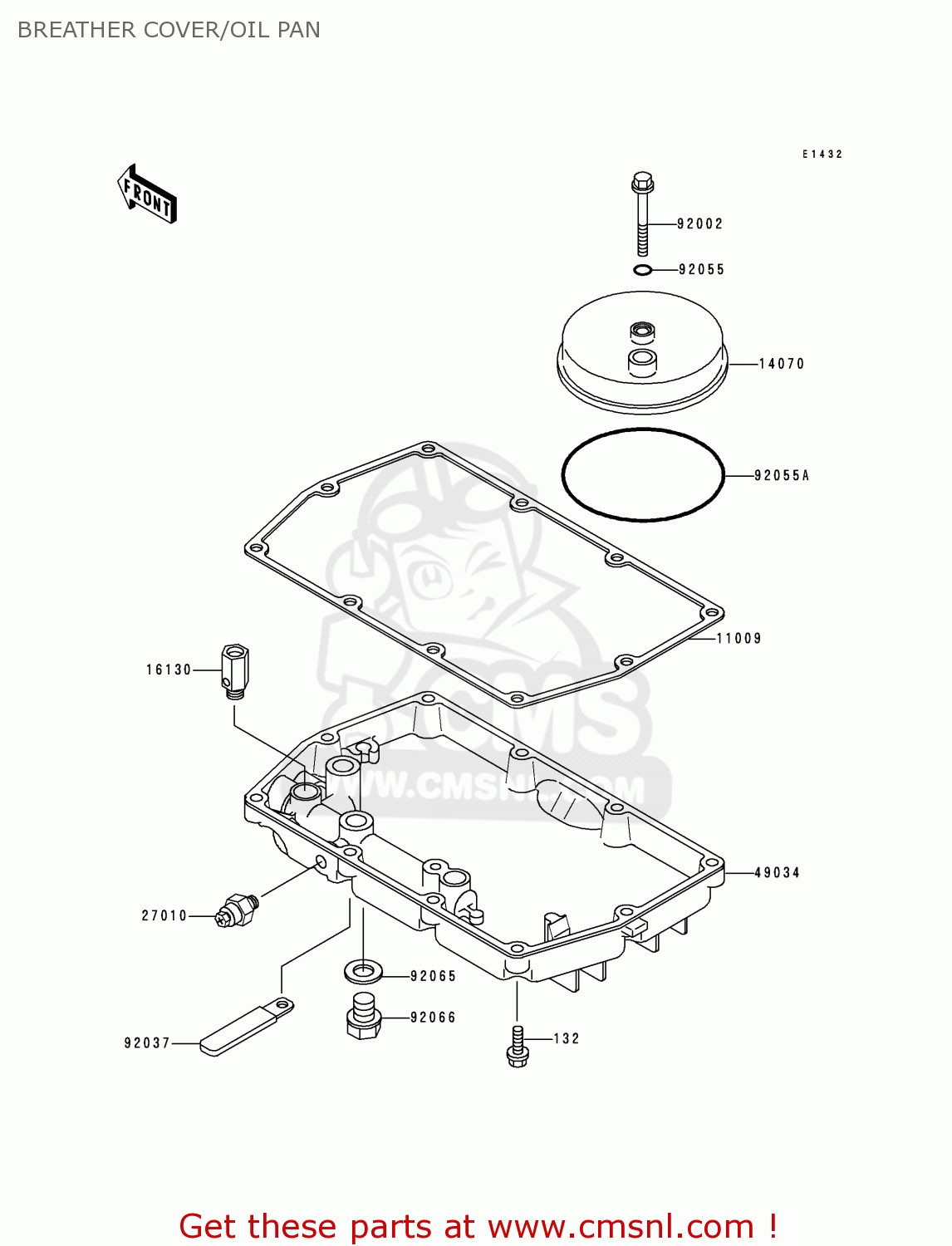

Breather cover/oil pan diagram EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

132

132Y0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

11009

110091837
ref: 11009

GASKET,OIL PAN (NAS)

€ 20.50

14070

140701067
ref: 14070

BODY-BREATHER

€ 29.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

49034

490341108
ref: 49034

PAN-OIL

€ 165.50

92002

920021069
ref: 92002

BOLT,6X45

€ 3.00

92037

920371679
ref: 92037

CLAMP

€ 3.50

92055

920551089
ref: 92055

RING-O,6MM

€ 3.00

92055A

920551284
ref: 92055A

RING-O

€ 7.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
