FENDERS

EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

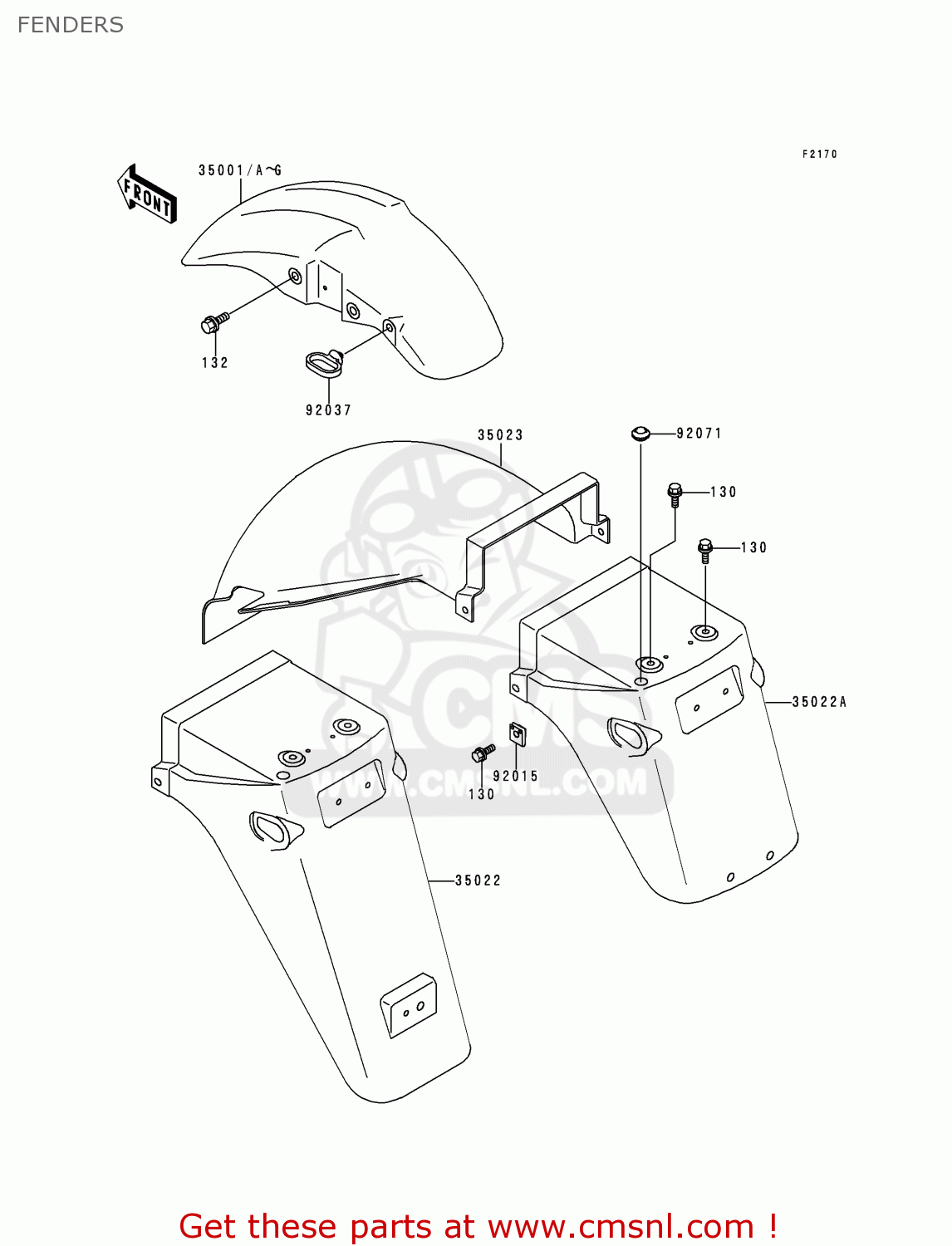

Fenders diagram EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

130

130B0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

132

132J0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

35001C

350011155H3
ref: 35001C
EUFGFRGRITNRSP

FENDER-ASSY-FRONT,C.W

€ 147.50

35001F

35001115520
ref: 35001F
EUFRGRITNLSP

FENDER-ASSY-FRONT,BLA

€ 111.50

35001G

35001115581
ref: 35001G
FGNL

FENDER-ASSY-FRONT,C.A

€ 104.00

35022

3502212286Z
ref: 35022
FGGRNR

FENDER-COMP-REAR,RR,B

€ 91.00

35022A

3502212366Z
ref: 35022A
EUFRITNLSP

FENDER-COMP-REAR,RR,B

€ 88.50

35023

350231391
ref: 35023

FENDER-REAR,FR

€ 50.50

92015

920151678
ref: 92015

NUT

€ 3.50

92037

920371459
ref: 92037

CLAMP,CABLE

€ 14.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50
