Genuine EX Kawasaki Parts delivered quickly!


CAMSHAFT(S)/TENSIONER

EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

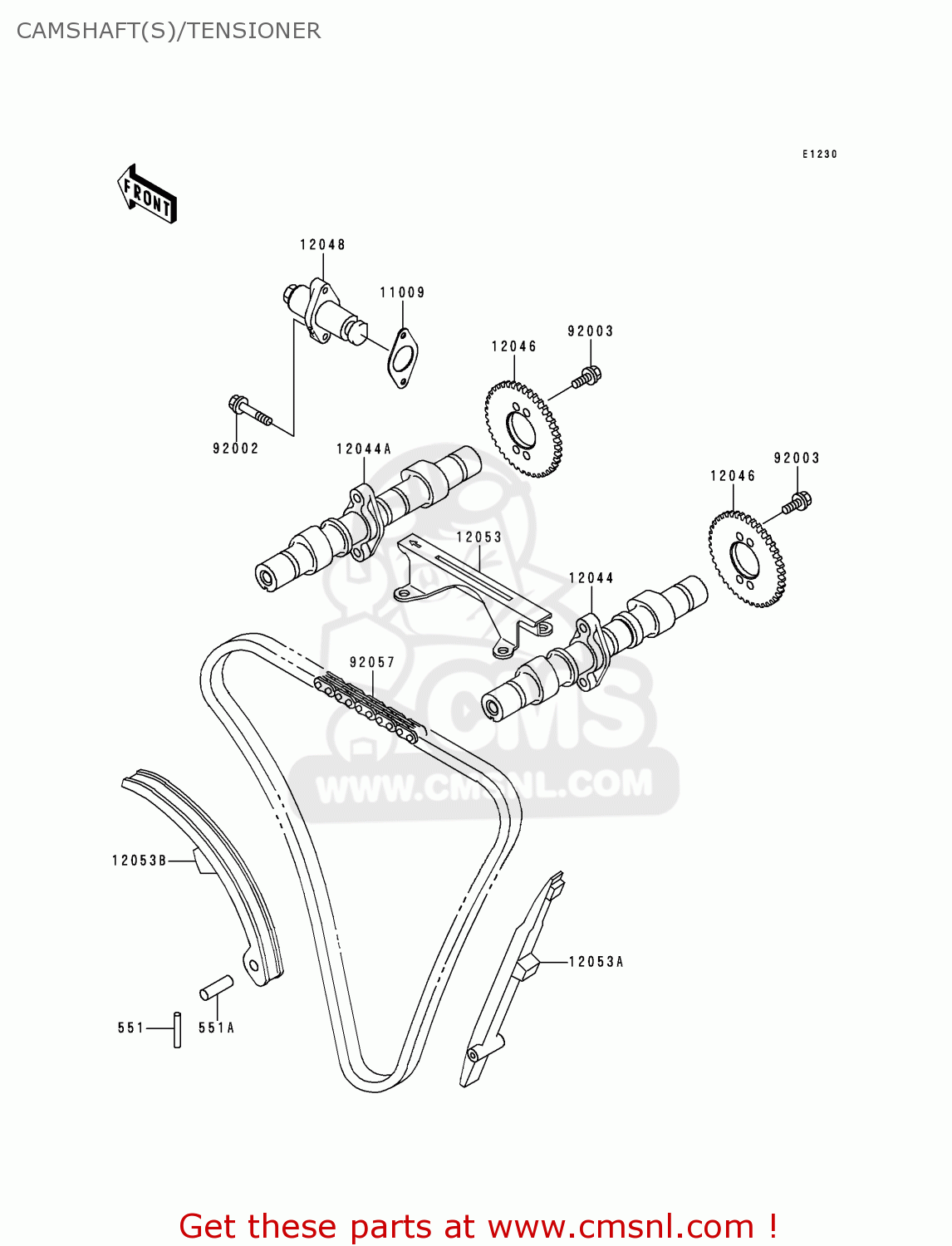

Camshaft(s)/tensioner diagram EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP

CAMSHAFT(S)/TENSIONER EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
CAMSHAFT(S)/TENSIONER EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
CAMSHAFT(S)/TENSIONER EX500E1 GPZ500S 1994 EUROPE FR NL FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
551
551A0432
ref: 551
PIN-DOWEL
551A0432
€ 2.50
551A
551A0840
ref: 551A
PIN-DOWEL,8X40
551A0840
€ 3.00
11009
110091858
ref: 11009
GASKET,TENSIONER (NAS)
110091858
€ 3.00
12044
120441198
ref: 12044
CAMSHAFT-VALVE,INTAKE
120441198
€ 357.00
12044A
120441199
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 357.00
12046
120461075
ref: 12046
SPROCKET,CAMSHAFT,46T
120461075
€ 69.00
12048
120481141
ref: 12048
TENSIONER-ASSY,CAM CH
120481141
€ 109.50
12053
120531145
ref: 12053
GUIDE-CHAIN,UPP
120531145
€ 32.00
12053A
120531150
ref: 12053A
GUIDE-CHAIN,RR
120531150
€ 58.50
12053B
120531151
ref: 12053B
GUIDE-CHAIN,FR
120531151
€ 43.50
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
92003208
€ 2.50
92057
920571188
ref: 92057
CHAIN,CAMSHAFT,79RH20
920571188
€ 34.50
