TURN SIGNALS

EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

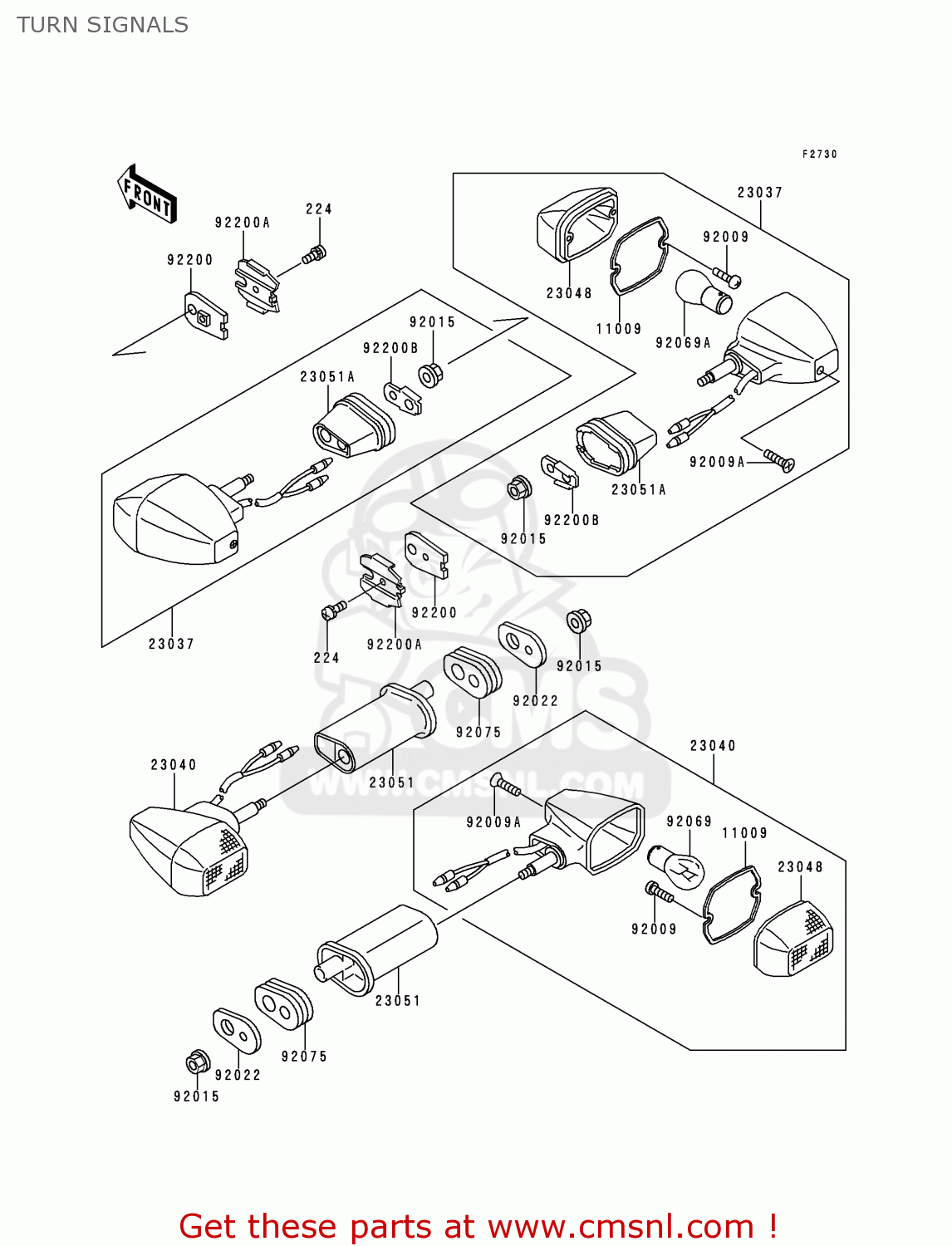

Turn signals diagram EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

TURN SIGNALS EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
TURN SIGNALS EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
TURN SIGNALS EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
224
224C0408
ref: 224
SCREW-PAN-WP-CROS,4X8
224C0408
€ 2.50
11009
110091402
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091402
€ 3.50
23037
230371299
ref: 23037
LAMP-ASSY-SIGNAL,FR
230371299
€ 40.50
23040
230401195
ref: 23040
LAMP-SIGNAL,RR
230401195
€ 40.00
23048
230481054
ref: 23048
LENS-SIGNAL LAMP
230481054
€ 12.00
23051
230511164
ref: 23051
BRACKET-SIGNAL LAMP,F
230511164
€ 7.50
23051A
230511207
ref: 23051A
BRACKET-SIGNAL LAMP,F
230511207
€ 13.00
92009
920091115
ref: 92009
SCREW,TAPPING,3X16
920091115
€ 2.00
92009A
920091304
ref: 92009A
SCREW,4X20
920091304
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069
92069055
ref: 92069
BULB 12V 32CP
92069055
€ 4.50
92069A
92069060
ref: 92069A
BULB.12V 23/8W
92069060
€ 5.00
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
92200
922001015
ref: 92200
WASHER,SIGNAL LAMP
922001015
€ 4.00
92200A
922001016
ref: 92200A
WASHER,SIGNAL LAMP
922001016
€ 4.50
92200B
922001021
ref: 92200B
WASHER
922001021
€ 4.50
