IGNITION SYSTEM

EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

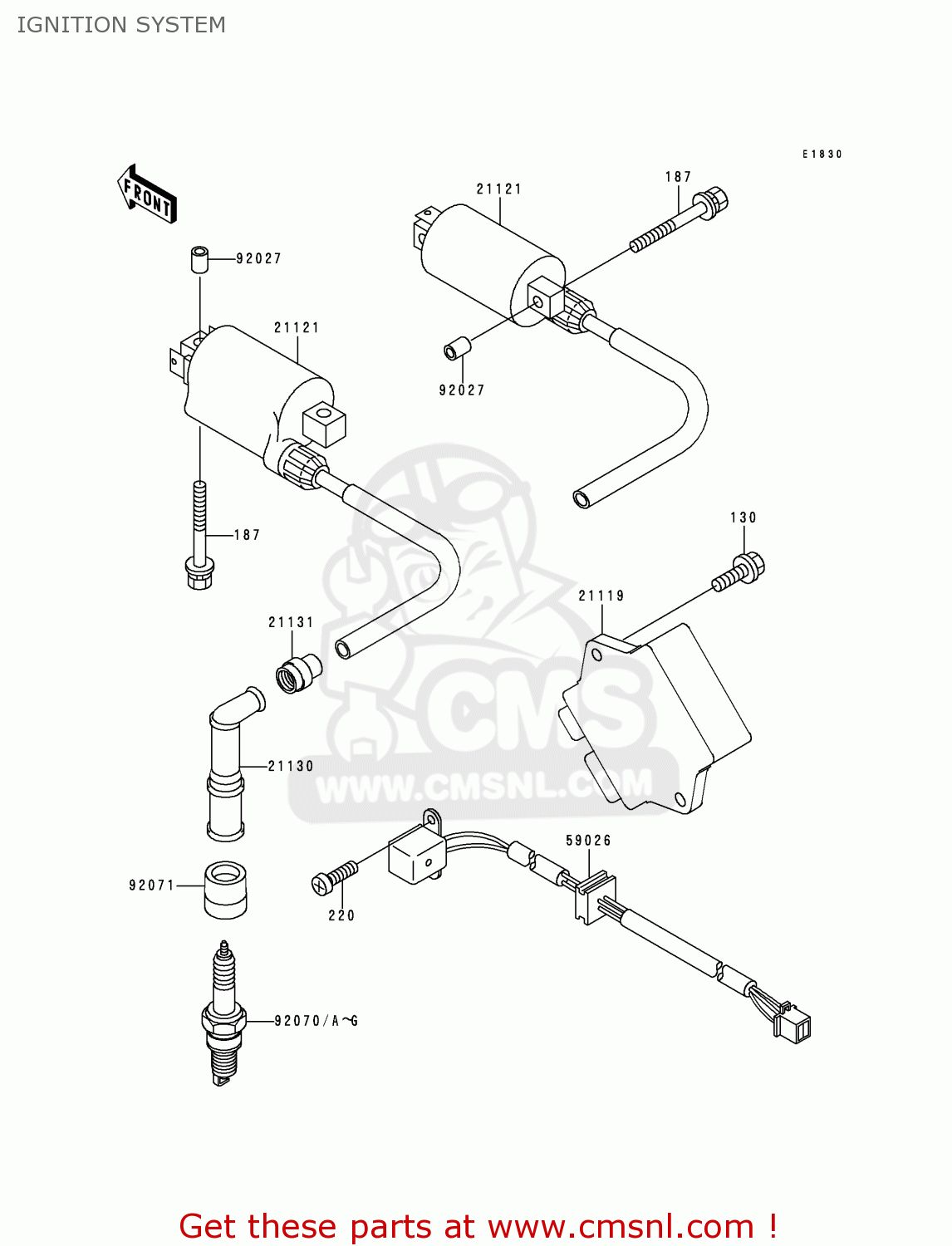

Ignition system diagram EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

IGNITION SYSTEM EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

IGNITION SYSTEM EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130H0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

187

187G0625
ref: 187

BOLT-UPSET-WSP

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21119

211191408
ref: 21119

IGNITER

€ 666.00

21121

211211153
ref: 21121

COIL-IGNITION

€ 144.50

21130

211301068
ref: 21130

CAP-SPARK PLUG

€ 28.00

21131

21131005
ref: 21131

GROMMET,TENSION,ITALY

€ 4.00

59026

590261126
ref: 59026

COIL-PULSING

€ 106.50

92027

92027103
ref: 92027

COLLAR

€ 2.50

92070

ref: 92070

92070E

ref: 92070E

92070F

920701189
ref: 92070F

DR9EA (NGK SPARKPLUG)

€ 4.00

92070G

920701199
ref: 92070G

DR8EA (NGK SPARKPLUG)

€ 4.00

92071

920711146
ref: 92071

GROMMET,PLUG CAP

€ 6.50
