Genuine EX Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

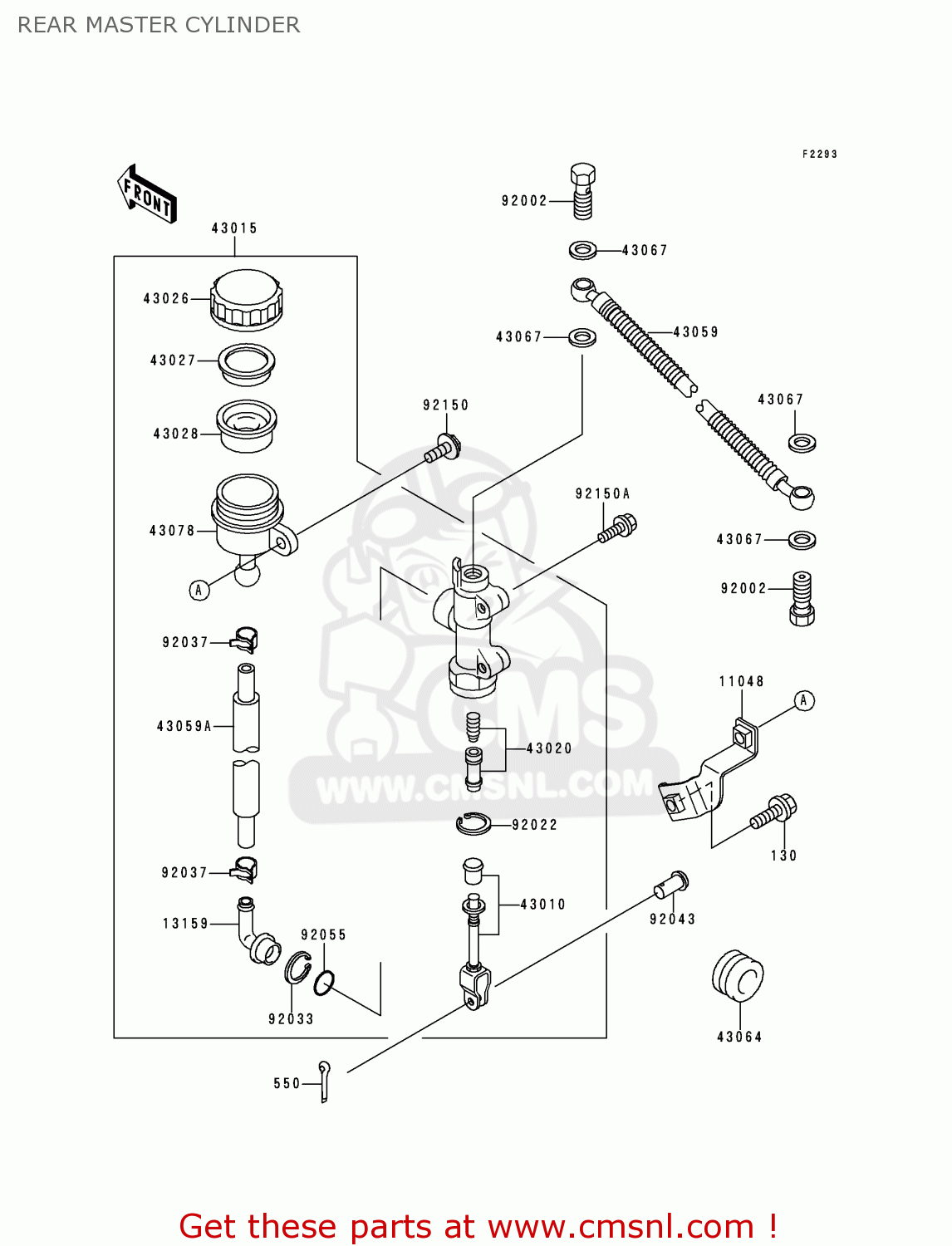

Rear master cylinder diagram EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

REAR MASTER CYLINDER EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
REAR MASTER CYLINDER EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
REAR MASTER CYLINDER EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
11048
110481363
ref: 11048
BRACKET,RESERVOIR TAN
€ 8.50
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015
430151555
ref: 43015
CYLINDER-ASSY-MASTER,
€ 385.50
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
430201094
€ 47.50
43026
430261077
ref: 43026
CAP-BRAKE
430261077
€ 23.00
43027
430271053
ref: 43027
PLATE-DIAPHRAGM
430271053
€ 4.00
43028
430281065
ref: 43028
DIAPHRAGM
430281065
€ 13.00
43059
430591779
ref: 43059
HOSE-BRAKE,RR
430591779
€ 73.50
43059A
430591780
ref: 43059A
HOSE-BRAKE,RR MASTER
€ 16.50
43064
43064007
ref: 43064
43064007
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781080
ref: 43078
RESERVOIR
430781080
€ 19.00
92002
920021907
ref: 92002
BOLT
920021907
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371710
ref: 92037
CLAMP
920371710
€ 6.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501198
ref: 92150
BOLT
921501198
€ 2.50
92150A
921501843
ref: 92150A
BOLT
921501843
€ 2.50
