Genuine EX Kawasaki Parts delivered quickly!


MUFFLER(S)

EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

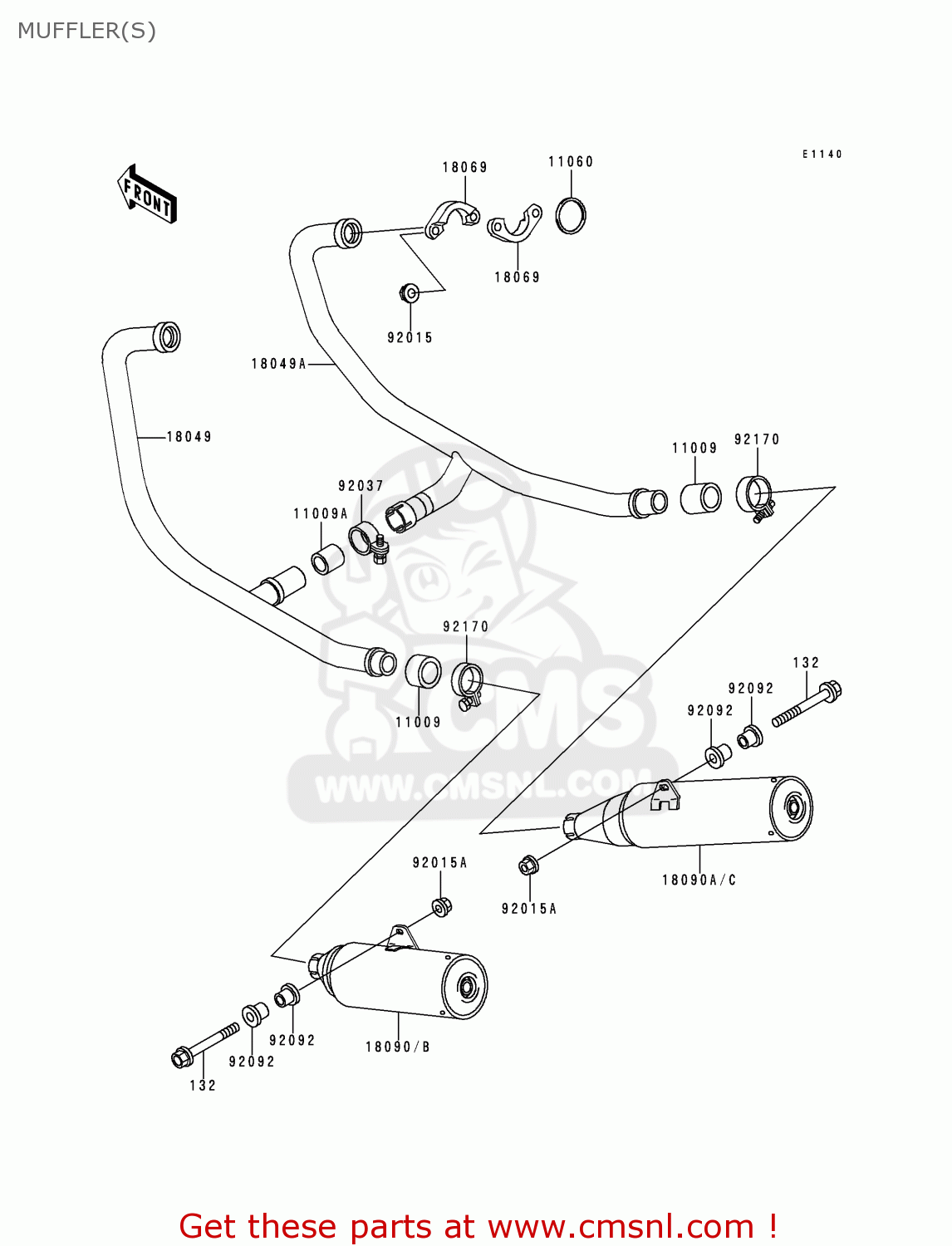

Muffler(s) diagram EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

MUFFLER(S) EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
MUFFLER(S) EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
MUFFLER(S) EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J1065
ref: 132
BOLT-FLANGED-SMALL
132J1065
€ 5.00
11009
110091667
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091667
€ 15.00
11009A
110091865
ref: 11009A
GASKET,MUFFLER CONNEC (NAS)
110091865
€ 19.50
11060
110601764
ref: 11060
GASKET,EXHAUST PIPE H (NAS)
110601764
€ 7.50
18049
180491402
ref: 18049
PIPE-EXHAUST,LH
180491402
€ 168.00
18049A
180491403
ref: 18049A
PIPE-EXHAUST,RH
180491403
€ 151.00
18069
180691122
ref: 18069
HOLDER-EXHAUST PIPE
180691122
€ 16.50
18090
180901331
ref: 18090
BODY-COMP-MUFFLER,LH
180901331
€ 354.00
18090A
180901332
ref: 18090A
MUFFLER BODY,COMPLETE,RH
€ 285.00
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
920151387
€ 2.50
92037
920371792
ref: 92037
CLAMP,39.5MM
920371792
€ 10.00
92092
92092010
ref: 92092
BUSHING-MUFFLER FITT
92092010
€ 11.00
92170
921701469
ref: 92170
CLAMP
921701469
€ 24.50
