HEADLIGHT(S)

EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

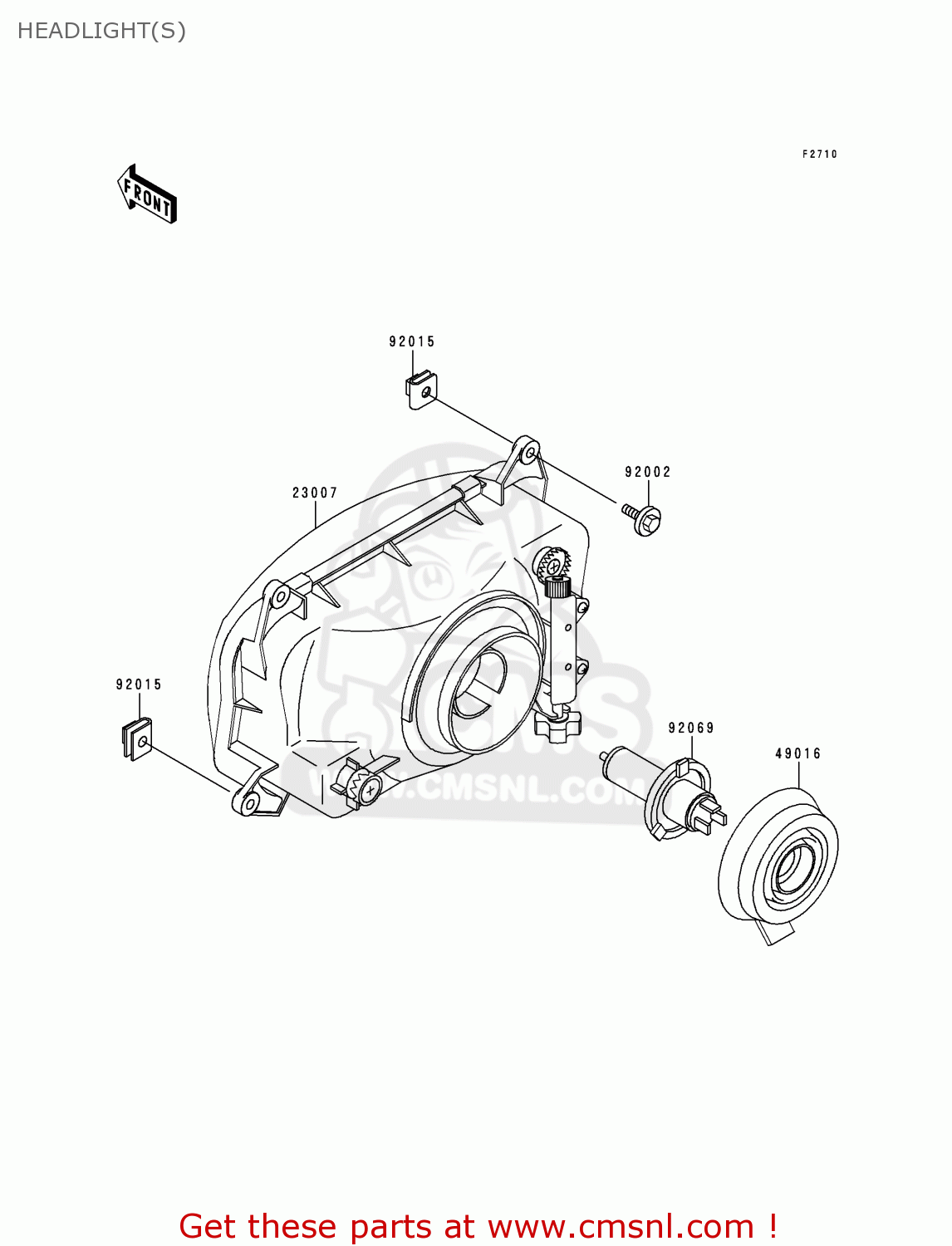

Headlight(s) diagram EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

HEADLIGHT(S) EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

HEADLIGHT(S) EX500D5 NINJA 500 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

23007

230071311
ref: 23007

LENS-COMP,HEAD LAMP

€ 287.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021262
ref: 92002

BOLT,6X22

€ 2.00

92015

920151602
ref: 92015

NUT,6MM

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00
